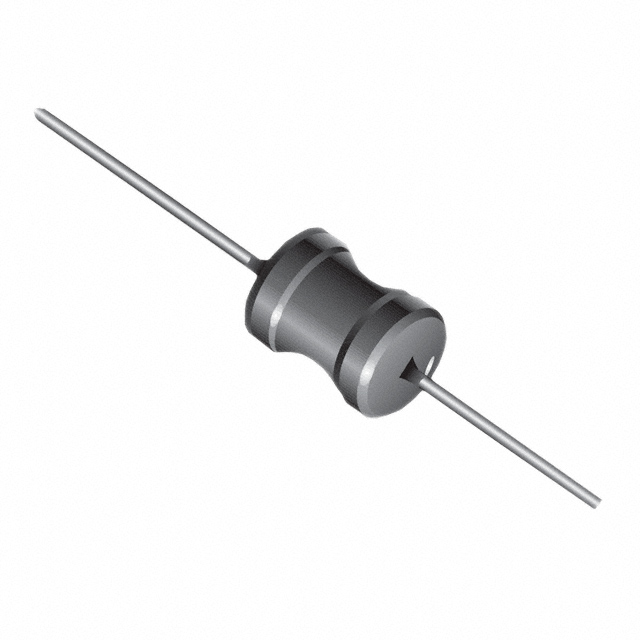

LPA1226 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 250UH 1.2A 300 MOHM TH
| Part | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Package / Case | Tolerance | Inductance Frequency - Test | Material - Core | Inductance | DC Resistance (DCR) [Max] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 12 mm | 25 mm | 0.984 " | 0.472 " | Drum Core Wirewound | Through Hole | 85 °C | -40 C | Unshielded | Axial | 10 % | 1 kHz | Ferrite | 250 µH | 300 mOhm | 1.2 A |
Bourns Inc. | 12 mm | 25 mm | 0.984 " | 0.472 " | Drum Core Wirewound | Through Hole | 85 °C | -40 C | Unshielded | Axial | 10 % | 1 kHz | Ferrite | 50 µH | 80 mOhm | 3 A |
Bourns Inc. | 12 mm | 25 mm | 0.984 " | 0.472 " | Drum Core Wirewound | Through Hole | 85 °C | -40 C | Unshielded | Axial | 10 % | 1 kHz | Ferrite | 10 µH | 30 mOhm | 5 A |
 Bourns Inc. | 12 mm | 25 mm | 0.984 " | 0.472 " | Drum Core Wirewound | Through Hole | 85 °C | -40 C | Unshielded | Axial | 10 % | 1 kHz | Ferrite | 25 µH | 45 mOhm | 4 A |
