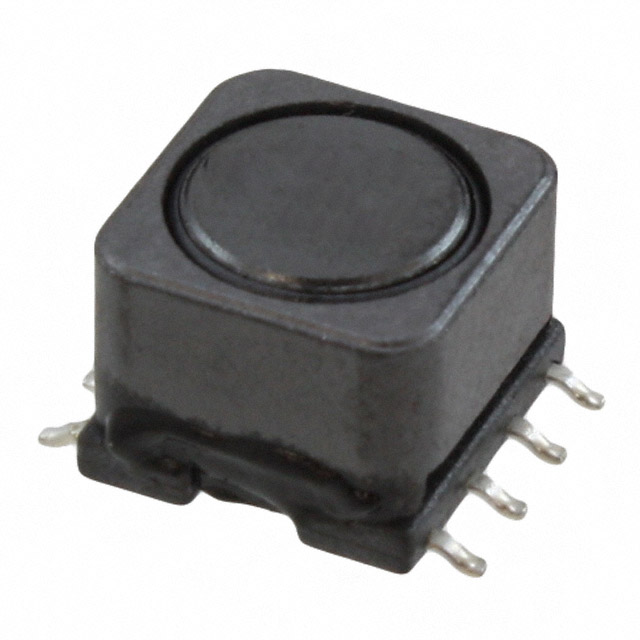

SRR0908 Series

Catalog

IND10X12.5X7.5MM,150UH15%0.8A,SHDSMD /TAPE & REEL - 13" REEL ROHS COMPLIANT: YES

Part	Inductance Frequency - Test	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Q @ Freq	Frequency - Self Resonant	Inductance	Current - Saturation (Isat)	Mounting Type	DC Resistance (DCR)	Height - Seated (Max)	Height - Seated (Max) [Max]	Material - Core	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. SRR0908-151YL	1 kHz	Drum Core Wirewound	9.5 mm	10 mm	0.374 in	0.394 in	15 %	45 796 kHz	4.6 MHz	150 µH	1 A	Surface Mount	450 mOhm	7.8 mm	0.307 in	Ferrite	Shielded	125 °C	-40 C	800 mA
Bourns Inc. SRR0908-101YL	1 kHz	Drum Core Wirewound	9.5 mm	10 mm	0.374 in	0.394 in	15 %	40 796 kHz	6 MHz	100 µH	1.3 A	Surface Mount		7.8 mm	0.307 in	Ferrite	Shielded	125 °C	-40 C	1 A	280 mOhm
Bourns Inc. SRR0908-681YL	1 kHz	Drum Core Wirewound	9.5 mm	10 mm	0.374 in	0.394 in	15 %	30 796 kHz	2 MHz	680 µH	500 mA	Surface Mount		7.8 mm	0.307 in	Ferrite	Shielded	125 °C	-40 C	350 mA	1.7 Ohm
Bourns Inc. SRR0908-152YL	1 kHz	Drum Core Wirewound	9.5 mm	10 mm	0.374 in	0.394 in	15 %	120 252 kHz	1.3 MHz	1.5 mH	350 mA	Surface Mount		7.8 mm	0.307 in	Ferrite	Shielded	125 °C	-40 C	0.25 A	4 Ohm
Bourns Inc. SRR0908-153YL	1 kHz	Drum Core Wirewound	9.5 mm	10 mm	0.374 in	0.394 in	15 %		400 kHz	15 mH	120 mA	Surface Mount		7.8 mm	0.307 in	Ferrite	Shielded	125 °C	-40 C	80 mA	40 Ohm	130	79.6 kHz
Bourns Inc. SRR0908-221YL	1 kHz	Drum Core Wirewound	9.5 mm	10 mm	0.374 in	0.394 in	15 %	35 796 kHz	3.8 MHz	220 µH	950 mA	Surface Mount		7.8 mm	0.307 in	Ferrite	Shielded	125 °C	-40 C	650 mA
Bourns Inc. SRR0908-181YL	1 kHz	Drum Core Wirewound	9.5 mm	10 mm	0.374 in	0.394 in	15 %	35 796 kHz	4.2 MHz	180 µH	1 A	Surface Mount		7.8 mm	0.307 in	Ferrite	Shielded	125 °C	-40 C	700 mA	500 mOhm
Bourns Inc. SRR0908-390ML	1 kHz	Drum Core Wirewound	9.5 mm	10 mm	0.374 in	0.394 in	20 %		5 MHz	39 µH	2.4 A	Surface Mount		7.8 mm	0.307 in	Ferrite	Shielded	125 °C	-40 C	1.5 A	135 mOhm	45	2.52 MHz
Bourns Inc. SRR0908-471YL	1 kHz	Drum Core Wirewound	9.5 mm	10 mm	0.374 in	0.394 in	15 %	30 796 kHz	2.3 MHz	470 µH	620 mA	Surface Mount	1.15 Ohm	7.8 mm	0.307 in	Ferrite	Shielded	125 °C	-40 C	0.45 A
Bourns Inc. SRR0908-271YL	1 kHz	Drum Core Wirewound	9.5 mm	10 mm	0.374 in	0.394 in	15 %	30 796 kHz	3.4 MHz	270 µH	750 mA	Surface Mount	700 mOhm	7.8 mm	0.307 in	Ferrite	Shielded	125 °C	-40 C	600 mA
