DG9636 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K

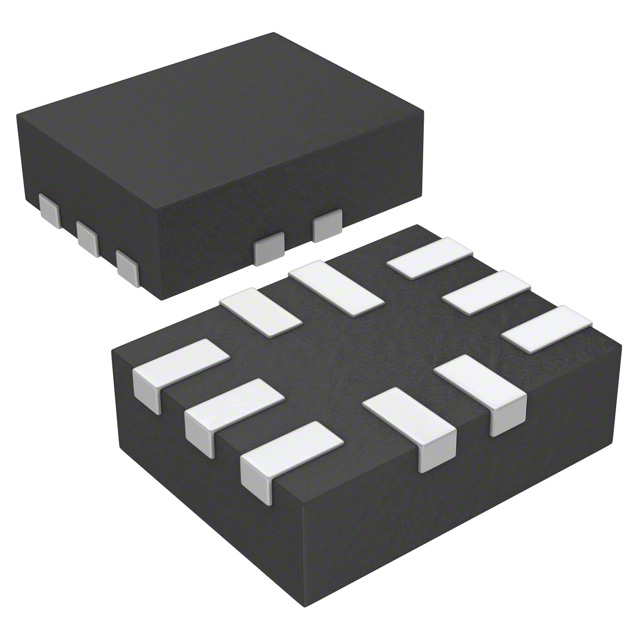

IC ANALOG SWITCH 10QFN
| Part | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | On-State Resistance (Max) [Max] | Voltage - Supply, Single (V+) [Min] | Voltage - Supply, Single (V+) [Max] | Supplier Device Package | Switch Circuit | Switch Time (Ton, Toff) (Max) [Max] [custom] | Switch Time (Ton, Toff) (Max) [Max] [custom] | Multiplexer/Demultiplexer Circuit | Channel-to-Channel Matching (ΔRon) | Crosstalk | Current - Leakage (IS(off)) (Max) | Mounting Type | Charge Injection | -3db Bandwidth | Number of Circuits | Channel Capacitance (CS(off), CD(off)) [custom] | Channel Capacitance (CS(off), CD(off)) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Vishay General Semiconductor - Diodes Division | ||||||||||||||||||||
 Vishay General Semiconductor - Diodes Division | 10-UFQFN | -40 °C | 125 °C | 110 Ohm | 2.7 V | 12 V | 10-miniQFN (1.4x1.8) | SPDT | 55 ns | 70 ns | 2:1 | 4 Ohm | -67 dB | 1 nA | Surface Mount | 23.5 pC | 720 MHz | 2 | 2 pF | 2 pF |
