EN2C7M Series

Catalog

CONNECTOR: CIRCULAR; PLUG; MALE; 3A; 125V; PIN: 7; EN2; SOLDERING

Part	Contact Finish - Mating	Fastening Type	Mounting Type	Primary Material	Ingress Protection	Contact Material	Color	Orientation	Applications	Shielding	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Number of Positions	Features	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Voltage Rating	Termination	Material Flammability Rating	Connector Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Mounting Feature	Current Rating (Amps)	Cable Opening [custom]	Cable Opening [custom]

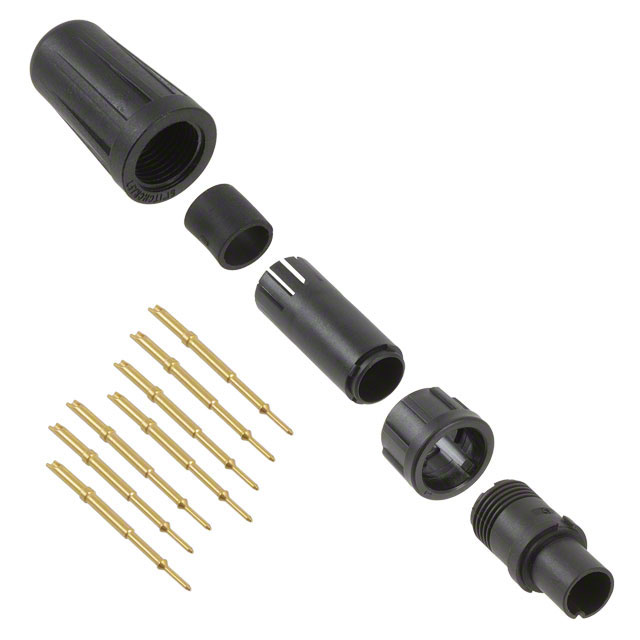

Switchcraft Inc. EN2C7M26G3	Gold	Bayonet Lock	Free Hanging (In-Line)	Plastic	IP66 IP67 IP68	Copper Alloy	Black	Keyed	Communication Systems Industrial Marine Medical	Unshielded	0.18 in	0.22 in	4.57 mm	5.59 mm	7	Backshell Coupling Nut	Thermoplastic	85 °C	-40 °C	Elastomer	125 VAC	Crimp Solder Cup	UL94 V-0	Male Pins Plug

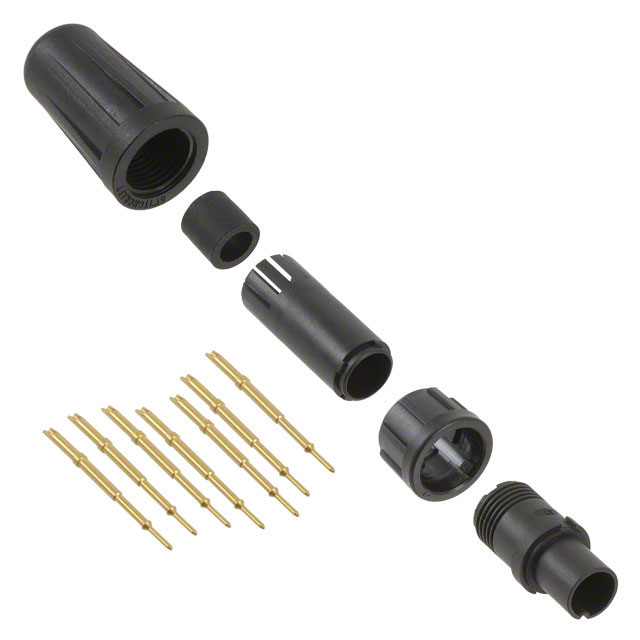

Switchcraft Inc. EN2C7M26G2	Gold	Bayonet Lock	Free Hanging (In-Line)	Plastic	IP66 IP67 IP68	Copper Alloy	Black	Keyed	Communication Systems Industrial Marine Medical	Unshielded					7	Backshell Coupling Nut	Thermoplastic	85 °C	-40 °C	Elastomer	125 VAC	Crimp Solder Cup	UL94 V-0	Male Pins Plug	4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C7M26G2W	Gold	Bayonet Lock	Free Hanging (In-Line)	Plastic	IP66 IP67 IP68	Copper Alloy	Black	Keyed	Communication Systems Industrial Marine Medical	Unshielded					7	Backshell Coupling Nut Winged	Thermoplastic	85 °C	-40 °C	Elastomer	125 VAC	Crimp Solder Cup	UL94 V-0	Male Pins Plug	4.57 mm	3.56 mm	0.14 in	0.18 in

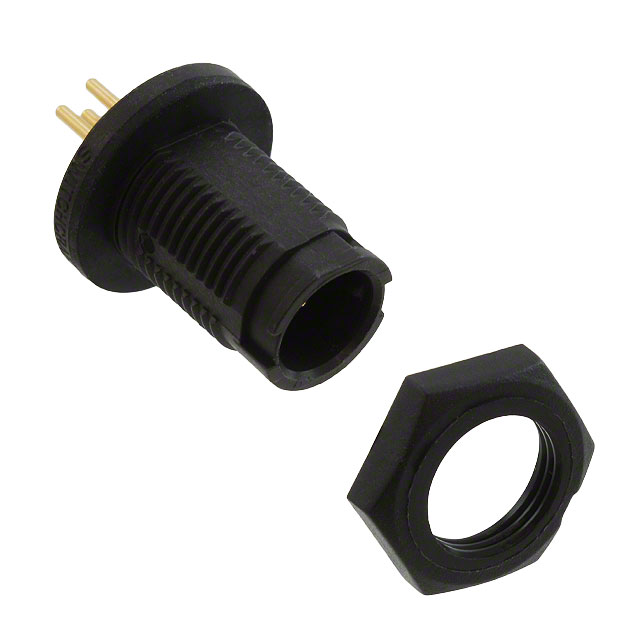

Switchcraft Inc. EN2P3M20PK	Gold	Bayonet Lock	Panel Mount Through Hole	Plastic	IP66 IP67 IP68	Copper Alloy	Black	Keyed	Communication Systems Industrial Marine Medical	Unshielded								85 °C	-40 °C	Elastomer	125 VAC	Solder	UL94 V-0	Male Pins Receptacle					Bulkhead - Front Side Nut	2 A

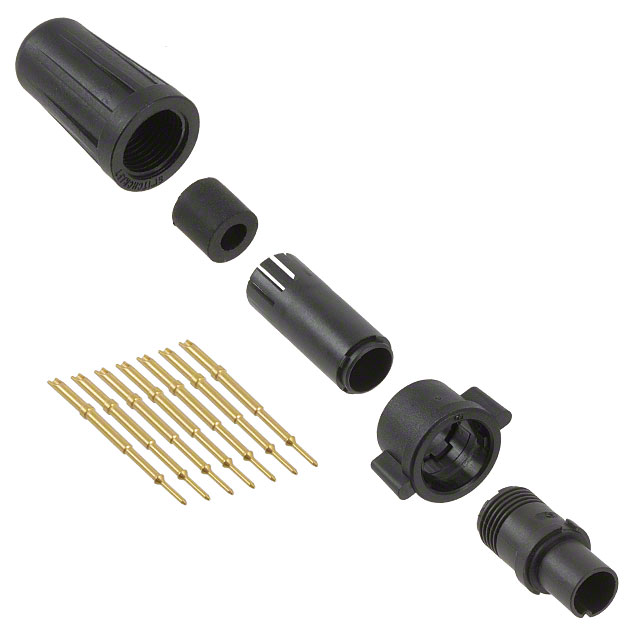

Switchcraft Inc. EN2C7M26G1W	Gold	Bayonet Lock	Free Hanging (In-Line)	Plastic	IP66 IP67 IP68	Copper Alloy	Black	Keyed	Communication Systems Industrial Marine Medical	Unshielded					7	Backshell Coupling Nut Winged	Thermoplastic	85 °C	-40 °C	Elastomer	125 VAC	Crimp Solder Cup	UL94 V-0	Male Pins Plug							2.54 mm 3.56 mm	0.1 in 0.14 in

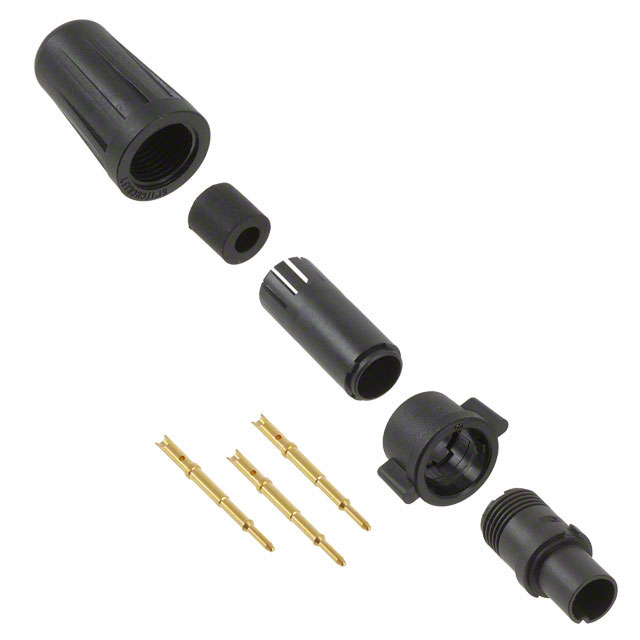

Switchcraft Inc. EN2C3M20G1W	Gold	Bayonet Lock	Free Hanging (In-Line)	Plastic	IP66 IP67 IP68	Copper Alloy	Black	Keyed	Communication Systems Industrial Marine Medical	Unshielded						Backshell Coupling Nut Winged	Thermoplastic	85 °C	-40 °C	Elastomer	125 VAC	Crimp Solder Cup	UL94 V-0	Male Pins Plug						2 A	2.54 mm 3.56 mm	0.1 in 0.14 in

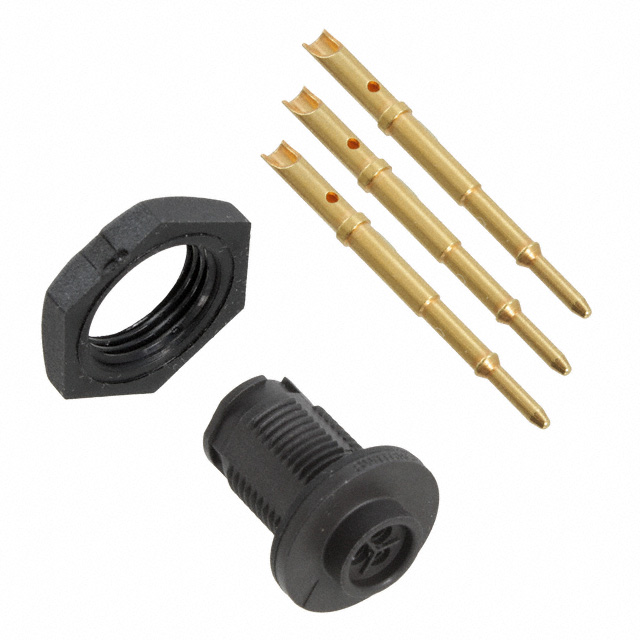

Switchcraft Inc. EN2P3M20	Gold	Bayonet Lock		Plastic	IP66 IP67 IP68	Copper Alloy	Black	Keyed	Communication Systems Industrial Marine Medical	Unshielded								85 °C	-40 °C	Elastomer	125 VAC	Crimp Solder Cup	UL94 V-0	Male Pins Receptacle					Bulkhead - Front Side Nut	2 A
Switchcraft Inc. EN2P3M20K	Gold	Bayonet Lock		Plastic	IP66 IP67 IP68	Copper Alloy	Black	Keyed	Communication Systems Industrial Marine Medical	Unshielded								85 °C	-40 °C	Elastomer	125 VAC	Crimp Solder Cup	UL94 V-0	Male Pins Receptacle					Bulkhead - Front Side Nut	2 A

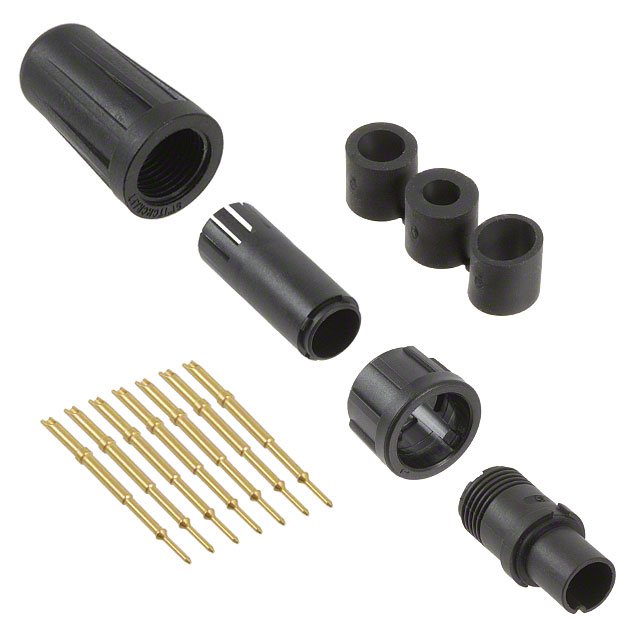

Switchcraft Inc. EN2C7M26DC	Gold	Bayonet Lock	Free Hanging (In-Line)	Plastic	IP66 IP67 IP68	Copper Alloy	Black	Keyed	Communication Systems Industrial Marine Medical	Unshielded					7	Backshell Coupling Nut	Thermoplastic	85 °C	-40 °C	Elastomer	125 VAC	Crimp Solder Cup	UL94 V-0	Male Pins Plug
Switchcraft Inc. EN2P3M20P	Gold	Bayonet Lock	Panel Mount Through Hole	Plastic	IP66 IP67 IP68	Copper Alloy	Black	Keyed	Communication Systems Industrial Marine Medical	Unshielded								85 °C	-40 °C	Elastomer	125 VAC	Solder	UL94 V-0	Male Pins Receptacle					Bulkhead - Front Side Nut	2 A
