207610 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

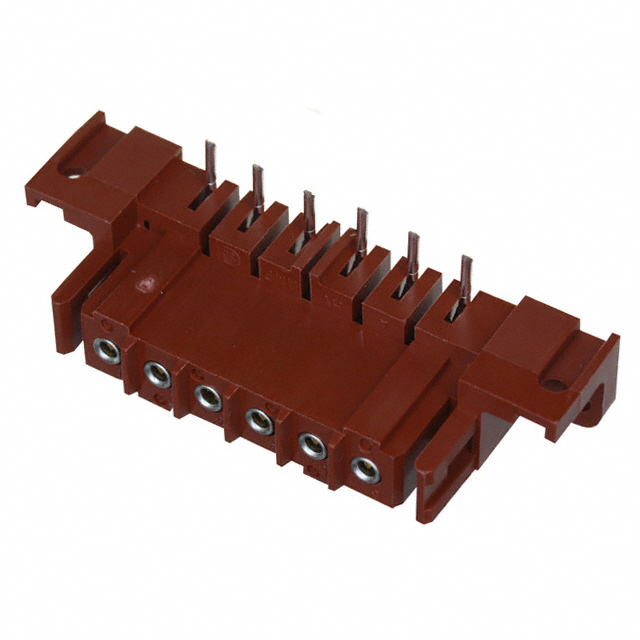

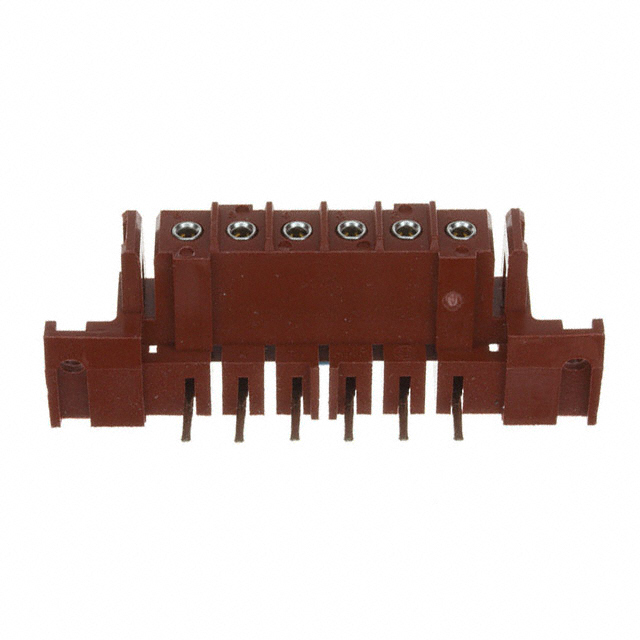

CONN HDR 6POS 0.197 GOLD PCB R/A
| Part | Style | Contact Shape | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Pitch - Mating | Pitch - Mating | Connector Type | Mounting Type | Number of Rows | Number of Positions Loaded | Current Rating (Amps) | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Termination | Contact Finish - Mating | Insulation Height | Insulation Height | Features | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Contact Type | Number of Positions | Voltage Rating | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Board to Cable/Wire | Circular | Tin-Lead | 130 °C | -55 °C | Red | 5 mm | 0.197 " | Header | Through Hole Right Angle | 1 | All | 7.5 A | 150 Áin | 3.81 Ám | Phosphor Bronze | Solder | Gold | 0.433 in | 11 mm | Mounting Flange | Latch Holder | 30 Áin | 0.76 Ám | Thermoplastic | Female Socket | 6 | 600 V | UL94 V-0 |
 TE Connectivity Raychem Cable Protection | Board to Cable/Wire | Circular | Tin | 130 °C | -55 °C | Red | 5 mm | 0.197 " | Header | Through Hole Right Angle | 1 | All | 7.5 A | 150 Áin | 3.81 Ám | Phosphor Bronze | Solder | Gold | 0.433 in | 11 mm | Mounting Flange | Latch Holder | 30 Áin | 0.76 Ám | Thermoplastic | Female Socket | 6 | 600 V | UL94 V-0 |
