REXL4 Series

Catalog

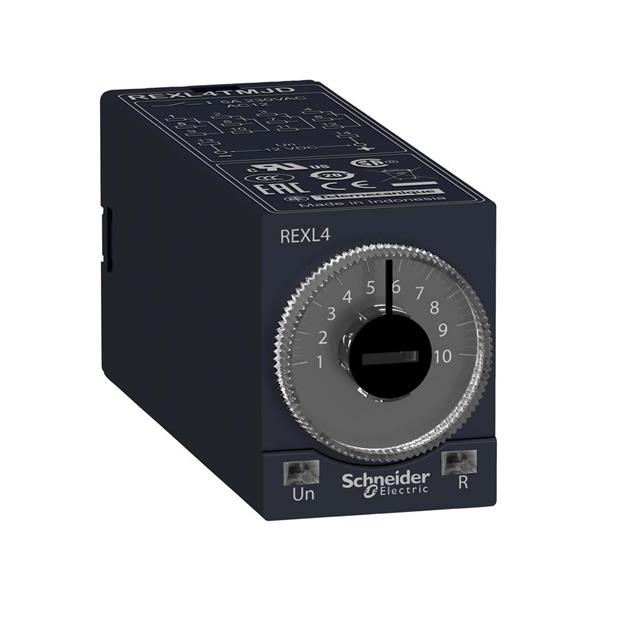

TIME DELAY RELAY, 0.1 S, 100 H, ZELIO REXL SERIES, 4PDT, 5 A

Part	Termination Style	Function	Timing Initiate Method	Delay Time [Max]	Delay Time [Min]	Circuit	Circuit	Mounting Type	Relay Type	Voltage - Supply	Timing Adjustment Method	Contact Rating @ Voltage
SQUARE D BY SCHNEIDER ELECTRIC REXL4TMBD	Plug In	On-Delay	Input Voltage	100 Hrs	0.1 Sec	4 Form C	4PDT	Socketable	Mechanical Relay	24 VDC	Hand Dial	5 A 250 VAC
SQUARE D BY SCHNEIDER ELECTRIC REXL4TMF7	Plug In	On-Delay	Input Voltage	100 Hrs	0.1 Sec	4 Form C	4PDT	Socketable	Mechanical Relay	120 VAC	Hand Dial	5 A 250 VAC
SQUARE D BY SCHNEIDER ELECTRIC REXL4TMP7	Plug In	On-Delay	Input Voltage	100 Hrs	0.1 Sec	4 Form C	4PDT	Socketable	Mechanical Relay	230 VAC	Hand Dial	5 A 250 VAC
