1318382 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

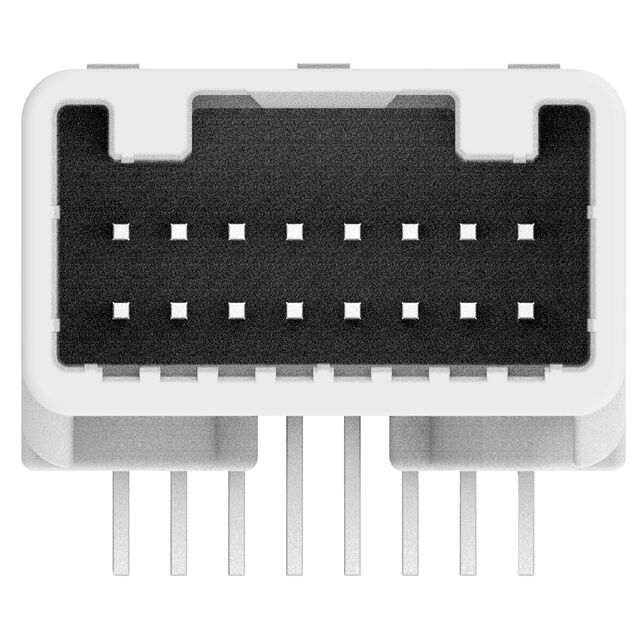

025 CAP HSG ASSY 16P
| Part | Applications | Row Spacing - Mating | Row Spacing - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Positions Loaded | Shrouding | Insulation Material | Features | Style | Insulation Height | Insulation Height | Material Flammability Rating | Insulation Color | Pitch - Mating | Pitch - Mating | Fastening Type | Contact Material | Contact Shape | Contact Type | Voltage Rating | Contact Length - Mating | Contact Length - Mating | Number of Rows [custom] | Number of Positions | Contact Length - Post [x] | Contact Length - Post | Termination | Contact Finish - Post | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | |||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors | |||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors | Automotive | 0.118 in | 3 mm | -30 ░C | 105 ░C | Header | All | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT) Glass Filled | Mounting Flange | Board to Cable/Wire | 0.61 in | 15.49 mm | UL94 HB | Black | 0.087 in | 2.2 mm | Latch Holder | Brass | Square | Male Pin | 12 VDC | 0.217 in | 5.5 mm | 2 | 16 | 0.157 in | 4 mm | Solder | Tin | Right Angle Through Hole |
