3139 Series

Catalog

DG R 22-16 COMM 22-18 MIL 6

Part	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Thickness	Thickness	Width - Outer Edges [y]	Width - Outer Edges [y]	Features	Terminal Type	Insulation	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Termination	Contact Material	Mounting Type	Stud/Tab Size	Length - Overall	Length - Overall [x]	Stud/Tab Size

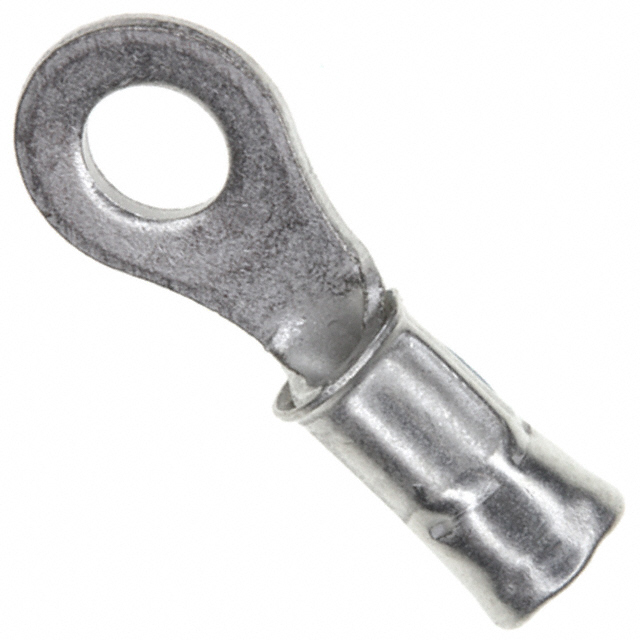

TE Connectivity Raychem Cable Protection 31396	Tin	22 AWG	16 AWG	0.031 in	0.79 mm	7.14 mm	0.281 in	Serrated Termination	Circular	Non-Insulated	0.14 in	0.105 in	3.56 mm	2.67 mm	Crimp	Copper	Free Hanging (In-Line)	6 Stud	18.49 mm	0.728 in

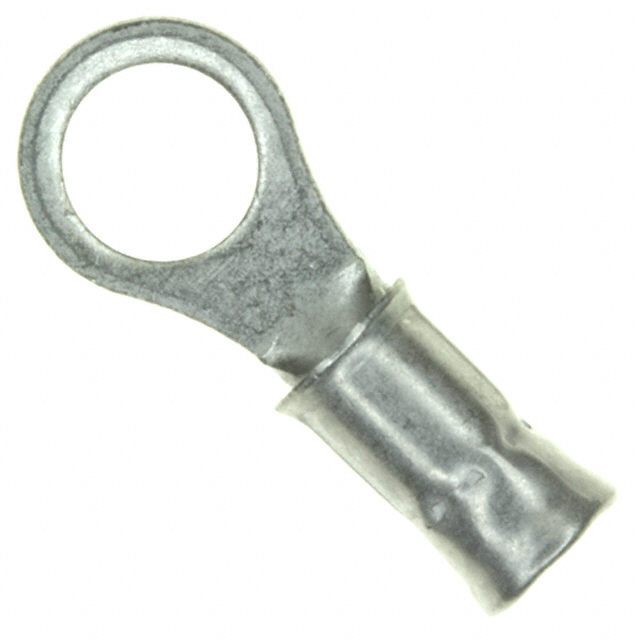

TE Connectivity Raychem Cable Protection 31398	Tin	22 AWG	16 AWG	0.031 in	0.79 mm	7.14 mm	0.281 in	Serrated Termination	Circular	Non-Insulated	0.14 in	0.105 in	3.56 mm	2.67 mm	Crimp	Copper	Free Hanging (In-Line)	10 Stud	18.49 mm	0.728 in
TE Connectivity Raychem Cable Protection 31397	Tin	22 AWG	16 AWG	0.031 in	0.79 mm	7.14 mm	0.281 in	Serrated Termination	Circular	Non-Insulated	0.14 in	0.105 in	3.56 mm	2.67 mm	Crimp	Copper	Free Hanging (In-Line)		18.49 mm	0.728 in	8 Stud
