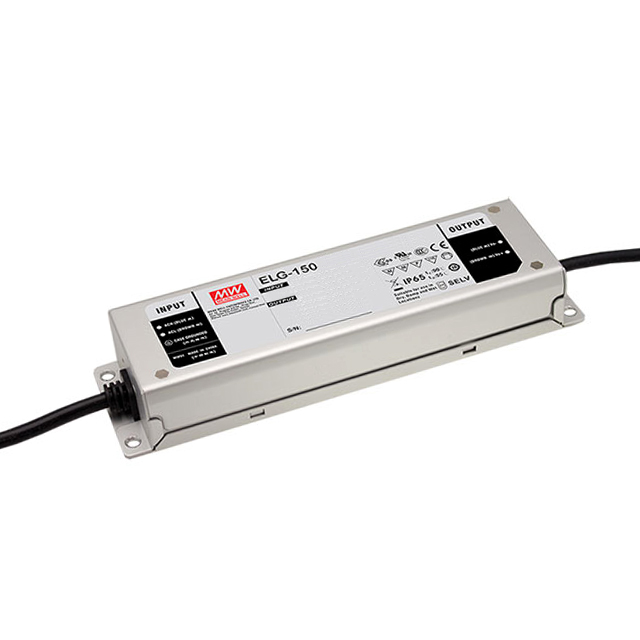

ELG-150 Series

Catalog

LED DRVR CC/CV AC/DC 18-36V

...

Part	Mounting Type	Voltage - Input (Max) [Max]	Features	Topology	Voltage - Input (Min) [Min]	Termination Style	Approval Agency	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Type	Efficiency	Voltage - Output [Min]	Voltage - Output [Max]	Power (Watts)	Number of Outputs	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Dimming	Voltage - Output
MEAN WELL USA Inc. ELG-150-36A	Chassis Mount	305 VAC	OCP OTP OVP SCP	AC DC Converter	100 VAC	Wire Leads	CB CCC CE cURus ENEC RCM	IP65	90 °C	-40 C	Constant Current Voltage	90 %	18 V	36 V	150 W	1	3750 VDC	63 mm	35.5 mm	1.4 "	7.68 in	2.48 in	195 mm	4.17 A
MEAN WELL USA Inc. ELG-150-C1400DA	Chassis Mount	305 VAC	OTP OVP SCP	AC DC Converter	100 VAC	Wire Leads	CB CCC CE cURus EAC ENEC RCM	IP67			Constant Current	91 %	54 V	107 V	150 W	1	3750 VDC	63 mm	35.5 mm	1.4 "	7.68 in	2.48 in	195 mm	1.4 A
MEAN WELL USA Inc. ELG-150-54B	Chassis Mount	305 VAC	OCP OTP OVP SCP	AC DC Converter	100 VAC	Wire Leads	CB CCC CE cURus ENEC RCM	IP67	90 °C	-40 C	Constant Current Voltage	91 %	27 V	54 V	151 W	1	3750 VDC	63 mm	35.5 mm	1.4 "	7.68 in	2.48 in	195 mm	2.8 A	Analog PWM
MEAN WELL USA Inc. ELG-150-54AB	Chassis Mount	305 VAC	OCP OTP OVP SCP	AC DC Converter	100 VAC	Wire Leads	CB CCC CE cURus EAC ENEC KC RCM	IP65	90 °C	-40 C	Constant Current Voltage	91 %			151 W	1	3750 VDC	63 mm	35.5 mm	1.4 "	7.68 in	2.48 in	195 mm	2.8 A		54 V
MEAN WELL USA Inc. ELG-150-54	Chassis Mount	305 VAC	OCP OTP OVP SCP	AC DC Converter	100 VAC	Wire Leads	CB CCC CE cURus ENEC RCM	IP67	90 °C	-40 C	Constant Current Voltage	91 %	27 V	54 V	151 W	1	3750 VDC	63 mm	35.5 mm	1.4 "	7.68 in	2.48 in	195 mm	2.8 A
MEAN WELL USA Inc. ELG-150-24B-3Y	Chassis Mount	305 VAC	OCP OTP OVP SCP	AC DC Converter	100 VAC	Wire Leads	CB CCC CE cURus EAC ENEC RCM	IP67	90 °C	-40 C	Constant Current Voltage	89 %			150 W	1	3750 VDC	63 mm	35.5 mm	1.4 "	7.68 in	2.48 in	195 mm	6.25 A	Analog PWM	24 V
MEAN WELL USA Inc. ELG-150-24A-3Y	Chassis Mount	305 VAC	OCP OTP OVP SCP	AC DC Converter	100 VAC	Wire Leads	CB CCC CE cURus EAC ENEC KC RCM	IP65	90 °C	-40 C	Constant Current Voltage	89 %			150 W	1	3750 VDC	63 mm	35.5 mm	1.4 "	7.68 in	2.48 in	195 mm	6.25 A		24 V
MEAN WELL USA Inc. ELG-150-42AB	Chassis Mount	305 VAC	OCP OTP OVP SCP	AC DC Converter	100 VAC	Wire Leads	CB CCC CE cURus EAC ENEC RCM	IP65	90 °C	-40 C	Constant Current Voltage	90 %			150 W	1	3750 VDC	63 mm	35.5 mm	1.4 "	7.68 in	2.48 in	195 mm	3.57 A	Analog PWM	42 V
MEAN WELL USA Inc. ELG-150-C1050A	Chassis Mount	305 VAC	OTP OVP SCP	AC DC Converter	100 VAC	Wire Leads	CB CCC CE cURus EAC ENEC RCM	IP65			Constant Current	92 %	72 V	143 V	150 W	1	3750 VDC	63 mm	35.5 mm	1.4 "	7.68 in	2.48 in	195 mm	1.05 A
MEAN WELL USA Inc. ELG-150-36D2-3Y	Chassis Mount	305 VAC	OCP OTP OVP SCP	AC DC Converter	100 VAC	Wire Leads	CB CCC CE cURus EAC ENEC KC RCM	IP67	90 °C	-40 C	Constant Current Voltage	90 %			150 W	1	3750 VDC	63 mm	35.5 mm	1.4 "	7.68 in	2.48 in	195 mm	4.17 A		36 V
