337-029 Series
Manufacturer: EDAC Inc.
Beta
⌘K

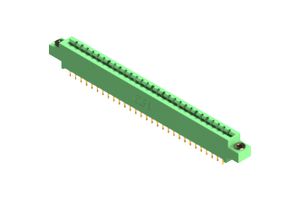

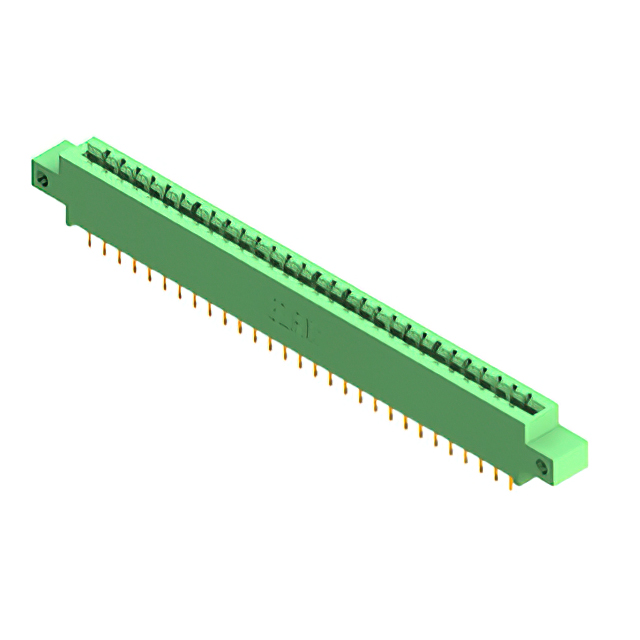

CONN EDGE SGL FMALE 29POS 0.156
| Part | Material - Insulation | Termination Rows | Termination | Color | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Rows | Pitch | Pitch | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Read Out | Gender | Card Type | Contact Finish | Number of Positions | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Wire Wrap | Green | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | 29 | -40 C | 105 ░C | Through Hole | 1 | 3.96 mm | 0.156 in | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Single | Female | Non Specified - Single Edge | Gold | 29 | |||

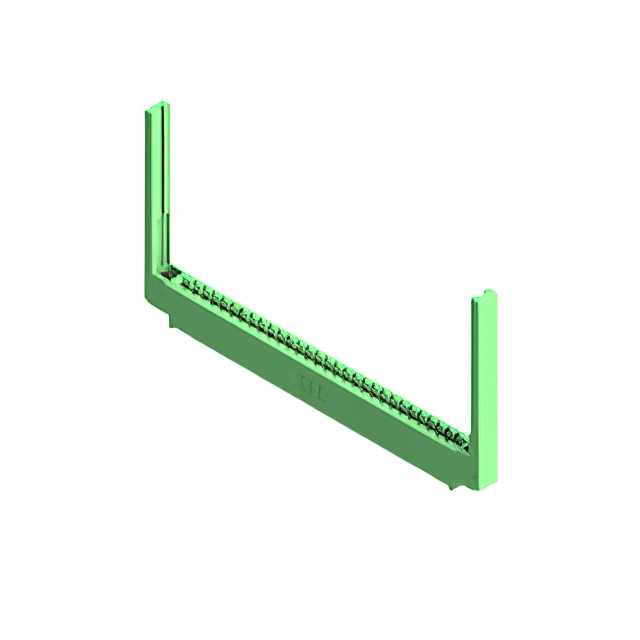

 EDAC Inc. | Polyester Thermoplastic | 1 | Wire Wrap | Green | 4-40 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | 29 | -40 C | 105 ░C | Through Hole | 1 | 3.96 mm | 0.156 in | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Single | Female | Non Specified - Single Edge | Gold | 29 | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Wire Wrap | Green | Flush Mount M3 Threaded Insert Top Opening | 0.25 Ám | 10 Áin | 29 | -40 C | 105 ░C | Through Hole | 1 | 3.96 mm | 0.156 in | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Single | Female | Non Specified - Single Edge | Gold | 29 | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Wire Wrap | Green | Flush Mount Side Opening Unthreaded | 0.25 Ám | 10 Áin | 29 | -40 C | 105 ░C | Through Hole | 1 | 3.96 mm | 0.156 in | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Single | Female | Non Specified - Single Edge | Gold | 29 | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Wire Wrap | Green | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | 29 | -40 C | 105 ░C | Through Hole | 1 | 3.96 mm | 0.156 in | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Single | Female | Non Specified - Single Edge | Gold | 29 | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Wire Wrap | Green | Side Mount Opening Unthreaded | 0.25 Ám | 10 Áin | 29 | -40 C | 105 ░C | Right Angle Through Hole | 1 | 3.96 mm | 0.156 in | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Single | Female | Non Specified - Single Edge | Gold | 29 | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Wire Wrap | Green | Floating Bobbin Top Mount Opening | 0.25 Ám | 10 Áin | 29 | -40 C | 105 ░C | Right Angle Through Hole | 1 | 3.96 mm | 0.156 in | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Single | Female | Non Specified - Single Edge | Gold | 29 | 0.116 " | 2.95 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Wire Wrap | Green | 4-40 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | 29 | -40 C | 105 ░C | Through Hole | 1 | 3.96 mm | 0.156 in | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Single | Female | Non Specified - Single Edge | Gold | 29 | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Wire Wrap | Green | M3 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | 29 | -40 C | 105 ░C | Through Hole | 1 | 3.96 mm | 0.156 in | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Single | Female | Non Specified - Single Edge | Gold | 29 | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Solder | Green | 4-40 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | 29 | -40 C | 105 ░C | Through Hole | 1 | 3.96 mm | 0.156 in | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Single | Female | Non Specified - Single Edge | Gold | 29 |
