048074 Series
Manufacturer: Molex
Beta
⌘K

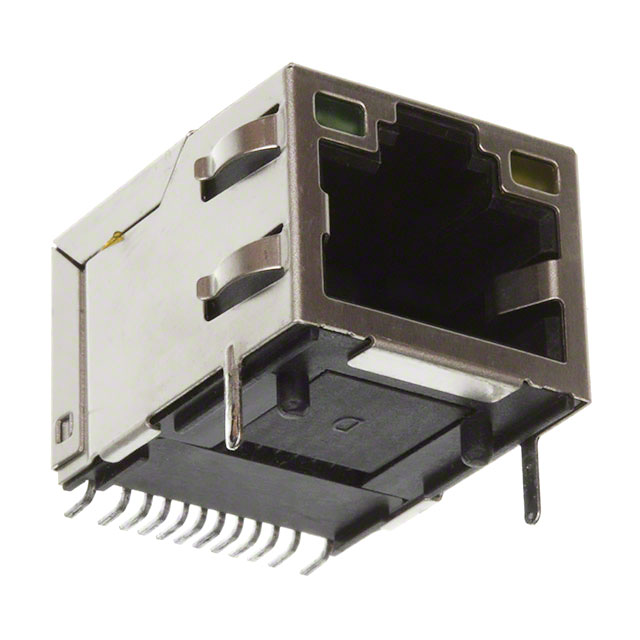

MAGNETIC JACK W/ SPRINGS STANDOF
| Part | Contact Finish Thickness | Contact Finish Thickness | Orientation | Mounting Type | LED Color | Contact Material | Features | Tab Direction | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Contact Finish | Shielding | Connector Type | Applications | Number of Ports | Height Above Board | Height Above Board | Shield Material | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | |||||||||||||||||||||
 Molex | 0.76 Ám | 30 Áin | 90 ° | Surface Mount | Green Yellow | Phosphor Bronze | Board Guide | Up | Solder | -40 °C | 70 °C | 1 | Gold | Shielded EMI Finger | RJ45 | 10/100 Base-T AutoMDIX | 1 | 13.45 mm | 0.53 in | Brass | Thermoplastic |
Molex | 0.76 Ám | 30 Áin | 90 ° | Surface Mount | Yellow - Green | Phosphor Bronze | Board Guide | Up | Solder | -40 °C | 85 °C | 1 | Gold | Shielded EMI Finger | RJ45 | 10/100 Base-T AutoMDIX | 1 | 13.3 mm | 0.524 in | Brass | Thermoplastic |
Molex |
