0910-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Minimum Working Height | Minimum Working Height | Contact Finish | Pad Layout Dimension | Pad Layout Dimension | Mounting Type | Contact Type | Mating Cycles | Recommended Working Height | Recommended Working Height | Current Rating (Amps) | Operating Force - Mid Compression | Operating Force - Initial | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Maximum Working Height [Max] | Maximum Working Height [Max] | Plunger Size [diameter] | Plunger Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

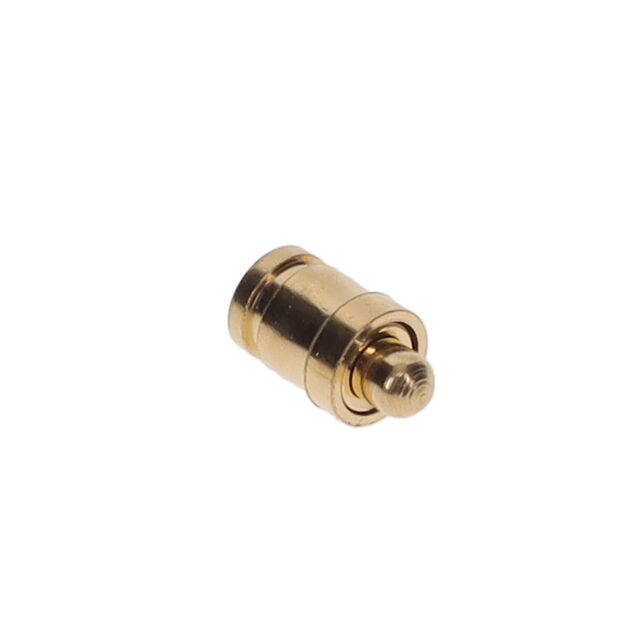

 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2.5 mm | 0.098 in | Gold | 0.072 in | 1.83 mm | Surface Mount | Sleeve & Plunger (Pogo Pins) | 1000000 | 0.117 in | 2.98 mm | 5.2 A | 60 gf | 15 gf | Brass Alloy | 20 µin | 0.51 µm | 0.137 in | 3.48 mm | 0.042 in | 1.07 mm |

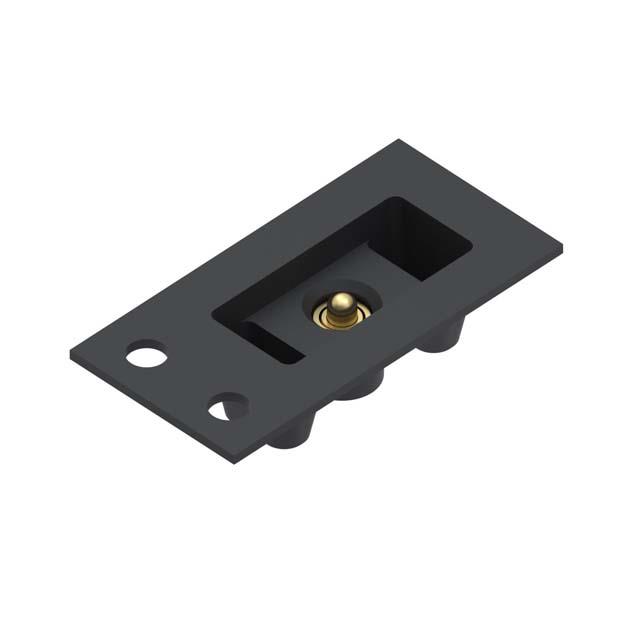

 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2.5 mm | 0.098 in | Gold | 0.072 in | 1.83 mm | Surface Mount | Sleeve & Plunger (Pogo Pins) | 1000000 | 0.117 in | 2.98 mm | 2 A | 60 gf | 25 gf | Copper Alloy | 20 µin | 0.51 µm | 0.137 in | 3.48 mm | 0.042 in | 1.07 mm |
