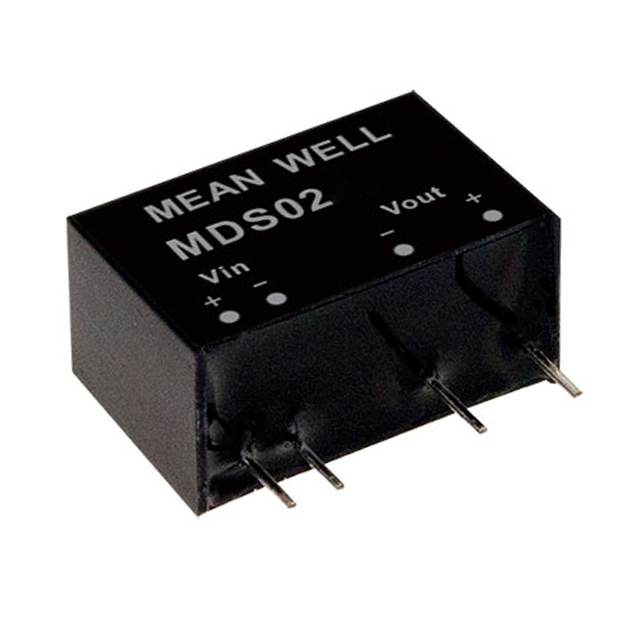

MDS02 Series

Catalog

DC DC CONVERTER 5V 2W

Part	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Isolation	Efficiency	Features	Applications	Package / Case	Supplier Device Package	Type	Number of Outputs	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Power (Watts)
MEAN WELL USA Inc. MDS02N-05	26.4 V	21.6 V	6000 VDC	80 %	SCP	Medical	7-SIP Module 4 Leads	7-SIP	Isolated Module	1	400 mA	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	5 V	85 °C	-40 C	Through Hole	2 W
MEAN WELL USA Inc. MDS02L-12	5.5 V	4.5 V	6000 VDC	80 %	SCP	Medical	7-SIP Module 4 Leads	7-SIP	Isolated Module	1	167 mA	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	12 V	85 °C	-40 C	Through Hole	2 W
MEAN WELL USA Inc. MDS02N-15	26.4 V	21.6 V	6000 VDC	85 %	SCP	Medical	7-SIP Module 4 Leads	7-SIP	Isolated Module	1	133 mA	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	15 V	85 °C	-40 C	Through Hole	2 W
MEAN WELL USA Inc. MDS02L-15	5.5 V	4.5 V	6000 VDC	79 %	SCP	Medical	7-SIP Module 4 Leads	7-SIP	Isolated Module	1	133 mA	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	15 V	85 °C	-40 C	Through Hole	2 W
MEAN WELL USA Inc. MDS02N-12	26.4 V	21.6 V	6000 VDC	83 %	SCP	Medical	7-SIP Module 4 Leads	7-SIP	Isolated Module	1	167 mA	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	12 V	85 °C	-40 C	Through Hole	2 W
MEAN WELL USA Inc. MDS02M-05	13.2 V	10.8 V	6000 VDC	75 %	SCP	Medical	7-SIP Module 4 Leads	7-SIP	Isolated Module	1	400 mA	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	5 V	85 °C	-40 C	Through Hole	2 W
