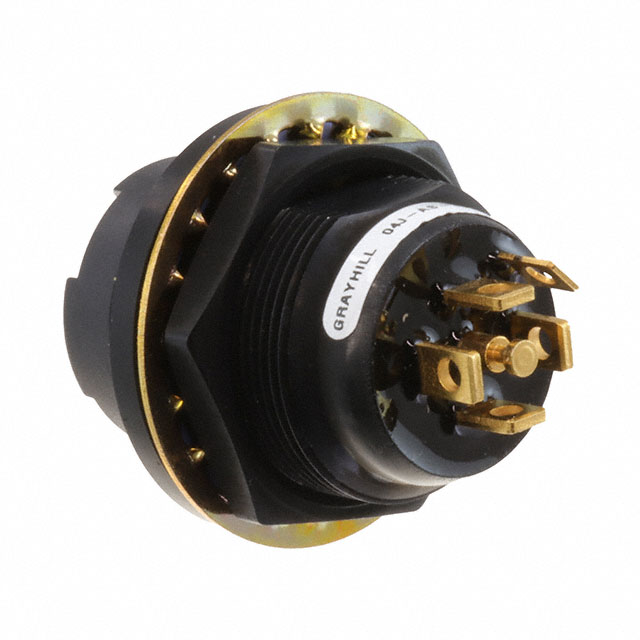

04J-AS Series
Manufacturer: Grayhill Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SWITCH NAV CONICAL 10MA 5V
| Part | Electrical Life (Cycles) | Operating Force | Ingress Protection IP Rating | Ingress Protection Description | Mechanical Life (Cycles) | Current Rating | Termination Style | Actuator Type | Contact Material | Mounting Type | Contact Finish | Output | Axis Count | Type | Voltage Rating - DC | Features | Switch Function | Operating Temperature (Min) | Operating Temperature (Max) | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

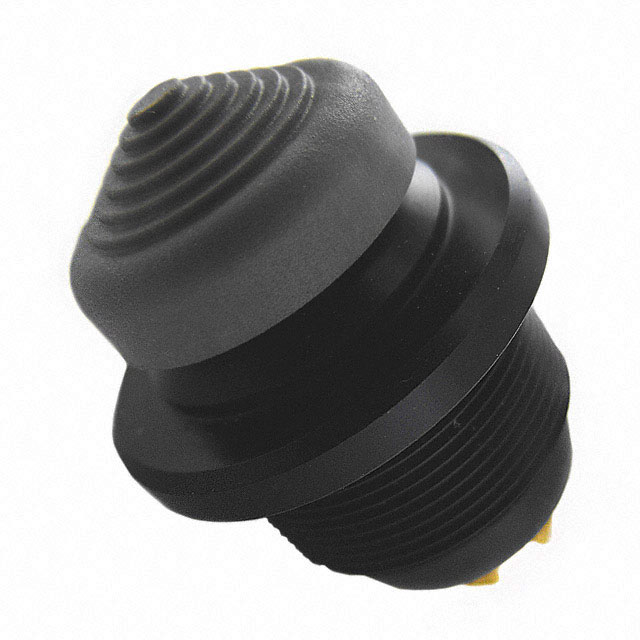

 Grayhill Inc. | 100000 Cycles | 454 gf | IP67 IP68 | Dust Tight Waterproof | 100000 Cycles | 10 mA | Solder Lug | Conical | Nickel | Panel Mount | Gold | Digital (Mechanical Switch) | 2 Axis | 2 - Axis Navigation Switch | 5 V | Gray Actuator | 4-Way Directional Center Select | -55 °C | 85 °C | |

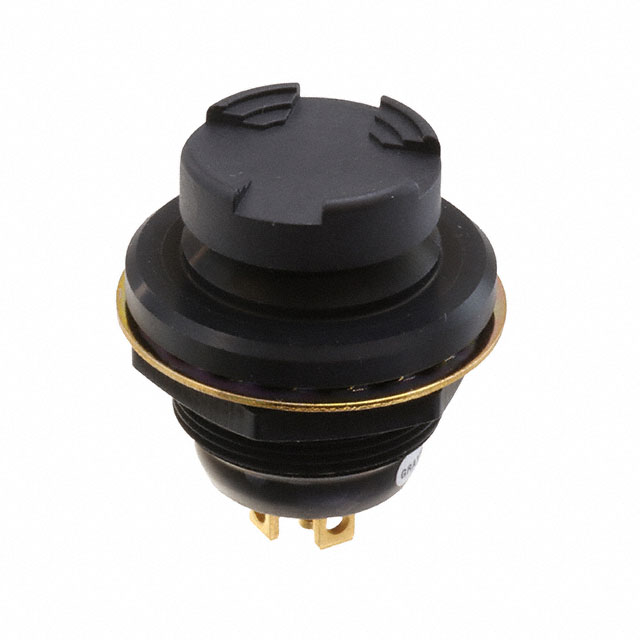

 Grayhill Inc. | 100000 Cycles | 454 gf | IP67 IP68 | Dust Tight Waterproof | 100000 Cycles | 2 A | Solder Lug | Castle | Nickel | Panel Mount | Gold | Digital (Mechanical Switch) | 2 Axis | 2 - Axis Navigation Switch | 28 V | 4-Way Directional Center Select | -55 °C | 85 °C | 115 V |
