1776175 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

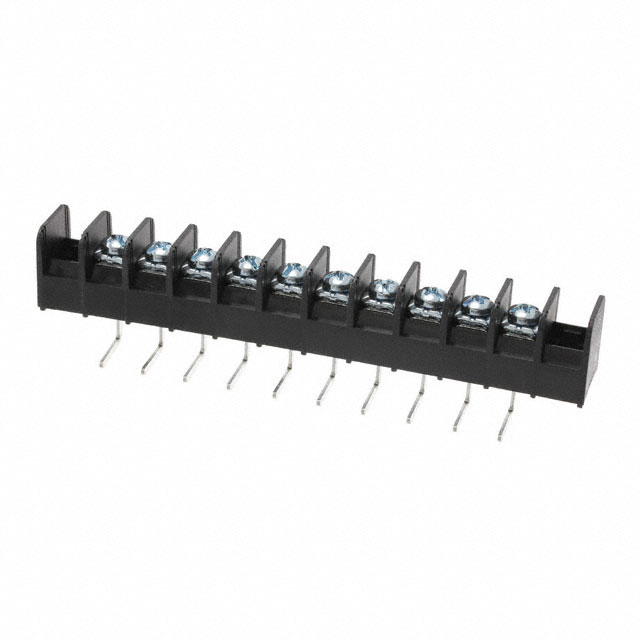

CONN BARRIER STRP 12CIRC 0.375"
| Part | Voltage Rating | Material - Insulation | Color | Barrier Type | Material Flammability Rating | Current Rating (Amps) | Top Termination | Number of Circuits | Pitch [x] | Pitch [x] | Operating Temperature | Mounting Type | Terminal Screw Finish | Bottom Termination | Number of Rows | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Screw Material | Terminal Block Type | Number of Wire Entries |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 300 VDC | Thermoplastic | Black | 2 Wall (Dual) | UL94 V-0 | 20 A | Screws with Captive Plate | 12 | 9.53 mm | 0.375 in | 105 C | Through Hole | Tin | Wire Wrap | 1 | 12 AWG | 22 AWG | Copper | Barrier Block | 12 |
