282812 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK HDR 9POS 90DEG 5MM

Part	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Mounting Type	Voltage - UL	Insulation Height	Insulation Height	Termination Style	Features	Contact Material	Color	Type	Number of Positions	Contact Mating Finish	Header Orientation	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Number of Levels

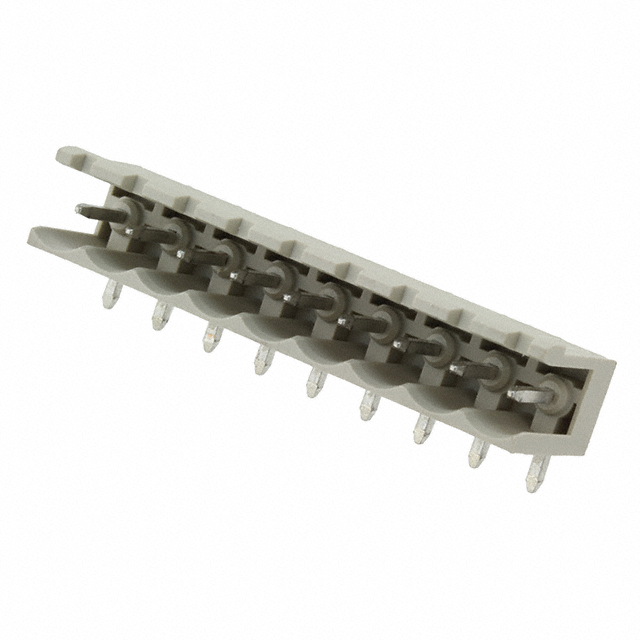

TE Connectivity Raychem Cable Protection 282812-9	5 mm	0.197 in	-40 °C	110 °C	9	Through Hole	300 V	8.36 mm	0.329 in	Solder	Side Stacking	Copper Alloy	Green	Header Male Pins Shrouded (2 Side)	9	Tin	90° Right Angle	3.5 mm	0.138 in	UL94 V-0	1
TE Connectivity Raychem Cable Protection 1-282812-3	5 mm	0.197 in	-40 °C	110 °C	13	Through Hole	300 V	8.36 mm	0.329 in	Solder	Side Stacking	Copper Alloy	Green	Header Male Pins Shrouded (2 Side)	13	Tin	90° Right Angle	3.5 mm	0.138 in	UL94 V-0	1

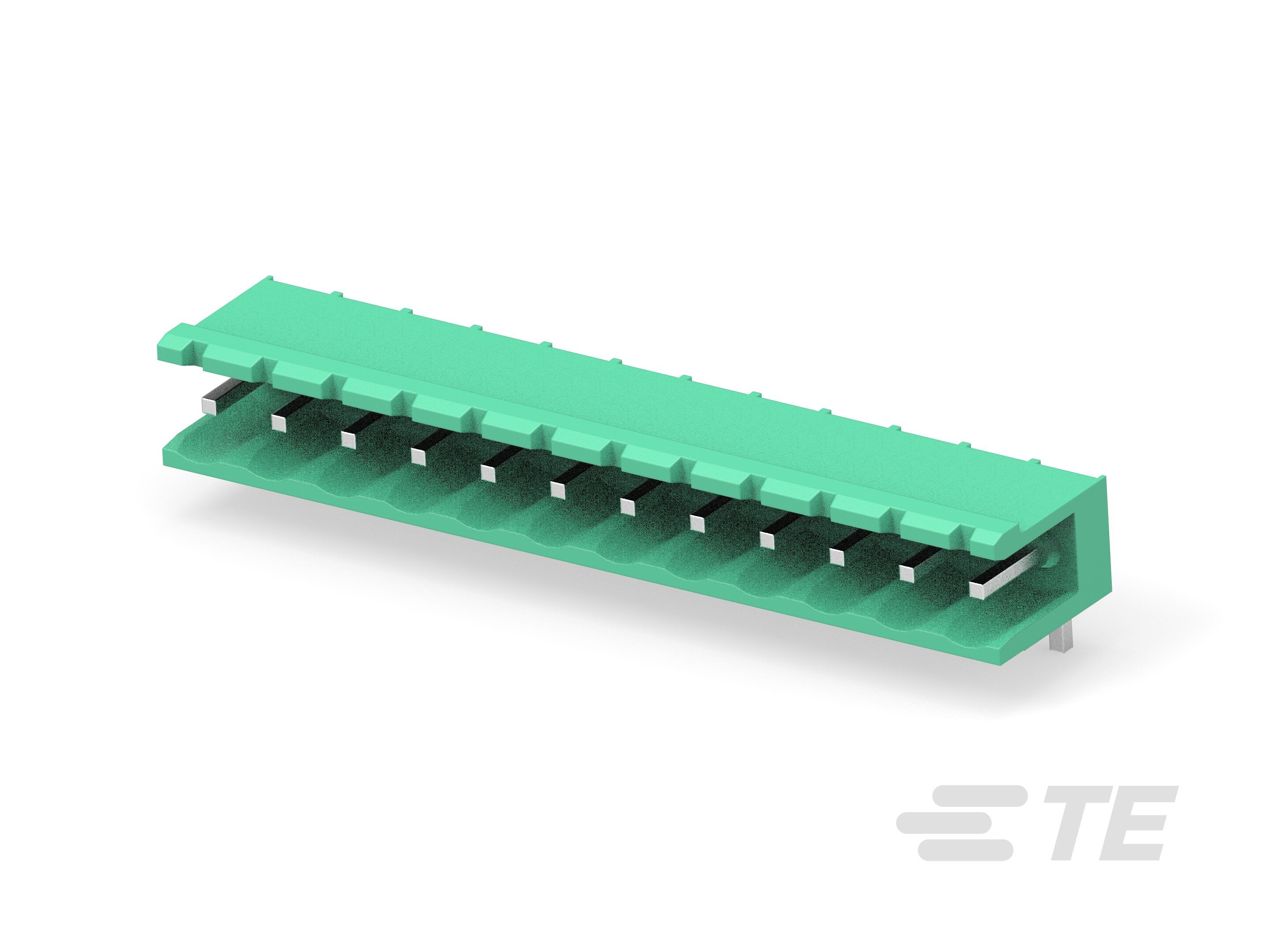

TE Connectivity Raychem Cable Protection 1-282812-2	5 mm	0.197 in	-40 °C	110 °C	12	Through Hole	300 V	8.36 mm	0.329 in	Solder	Side Stacking	Copper Alloy	Green	Header Male Pins Shrouded (2 Side)	12	Tin	90° Right Angle	3.5 mm	0.138 in	UL94 V-0	1

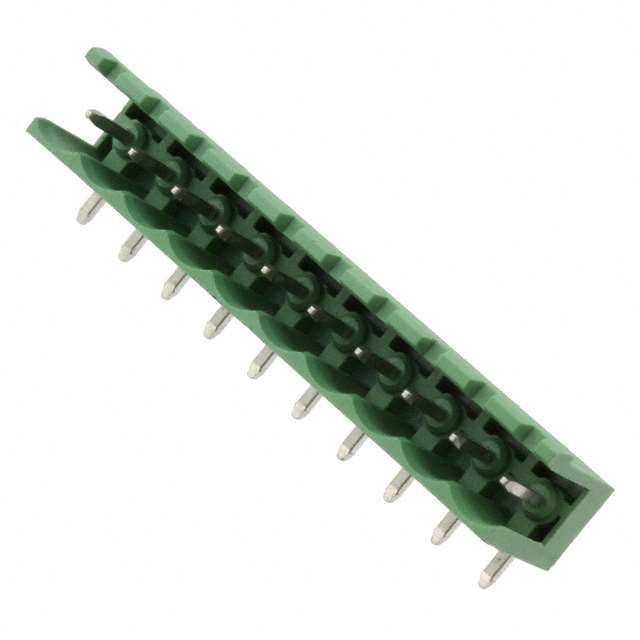

TE Connectivity Raychem Cable Protection 1-282812-0	5 mm	0.197 in	-40 °C	110 °C	10	Through Hole	300 V	8.36 mm	0.329 in	Solder	Side Stacking	Copper Alloy	Green	Header Male Pins Shrouded (2 Side)	10	Tin	90° Right Angle	3.5 mm	0.138 in	UL94 V-0	1
TE Connectivity Raychem Cable Protection 2-282812-4	5 mm	0.197 in	-40 °C	110 °C		Through Hole	300 V	8.36 mm	0.329 in	Solder	Side Stacking	Copper Alloy	Green	Header Male Pins Shrouded (2 Side)	24	Tin	90° Right Angle	3.5 mm	0.138 in	UL94 V-0	1

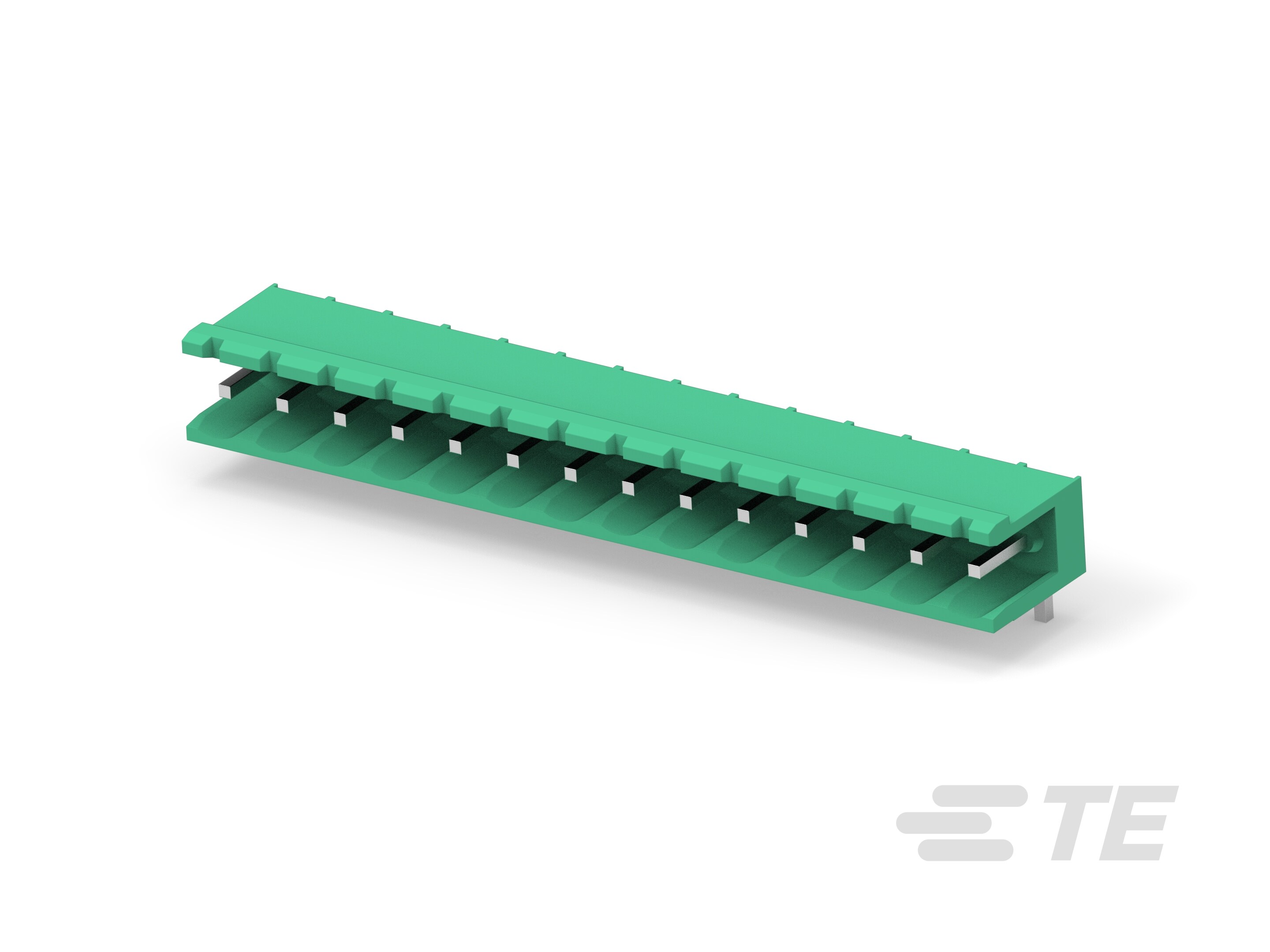

TE Connectivity Raychem Cable Protection 1-282812-4	5 mm	0.197 in	-40 °C	110 °C	14	Through Hole	300 V	8.36 mm	0.329 in	Solder	Side Stacking	Copper Alloy	Green	Header Male Pins Shrouded (2 Side)	14	Tin	90° Right Angle	3.5 mm	0.138 in	UL94 V-0	1
