Han M23 Series
Manufacturer: HARTING
Beta
⌘K
CIRCULAR METRIC CONNECTORS HANM23 PWR PNL FDTHR EMC CRD CBL 7-12MM
| Part | Ingress Protection | Shell Finish | Shell Size - Insert | Shell Material | Includes | Connector Type | Mounting Type | Shielding | Note | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Mounting Feature | Features | Housing Color | Material Flammability Rating | Number of Positions | Insert Material [custom] | Insert Material [custom] | Orientation | Contact Type | Note | Type | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | IP67/IP69K | Nickel | M23 | Copper Zinc Alloy | 1 Backshell 1 Nut 1 O-Ring 1 Shell | Insert Shell | Free Hanging (In-Line) Panel Mount | Shielded | Contacts Not Included; Insert Not Included | 125 °C | -40 C | Threaded | Bulkhead - Front Side Nut | Backshell | Silver | |||||||||

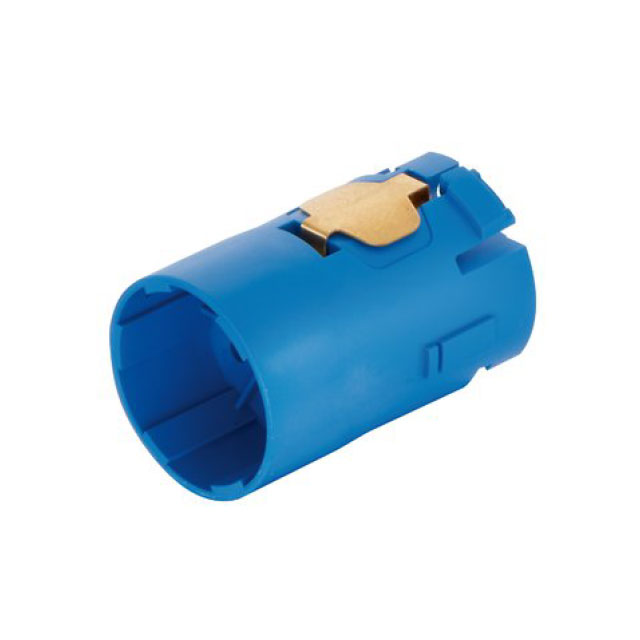

 HARTING | M23-9 | Insert | Unshielded | Insert Only | 125 °C | -40 C | Blue | UL94 V-0 | 9 | Nylon | Polyamide (PA) | B | Crimp | For Male Pins | Circular | |||||||||
 HARTING | IP67/IP69K | Nickel | M23 | Copper Zinc Alloy | Insert Shell | Free Hanging (In-Line) | Shielded | Contacts Not Included; Insert Not Included | 125 °C | -40 C | Threaded | Backshell Coupling Nut | Silver |
