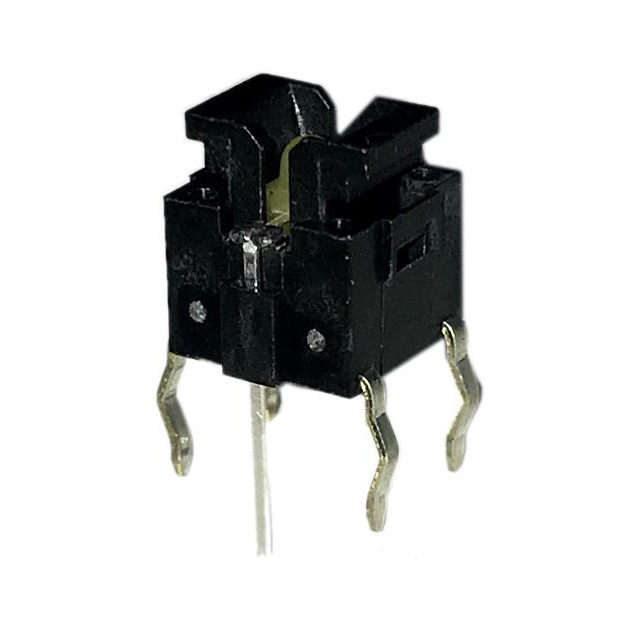

228FDVA Series
Manufacturer: CTS Electrocomponents
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mechanical Life | Switch Travel | Actuator Type | Illumination | Circuit | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Height off PCB, Vertical [z] | Operating Force | Actuator Orientation | Switch Function | Mounting Type | Illumination Type, Color | Contact Rating @ Voltage | Illumination Voltage (Nominal) | Outline [x] | Outline [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CTS Electrocomponents | 500000 Cycles | 0.25 mm | Plunger for Cap | Illuminated | SPST-NO | PC Pin | -20 ░C | 70 °C | 7.2 mm | 160 gf | Top Actuated | Off-Mom | Through Hole | LED White | 0.05 A 12 VDC | |||
 CTS Electrocomponents | 100000 Cycles | 0.25 mm | Plunger for Cap | Illuminated | SPST-NO | PC Pin | -20 ░C | 70 °C | 7.2 mm | 160 gf | Top Actuated | Off-Mom | Through Hole | Blue LED | 0.05 A 12 VDC | 3.2 VDC | 7 mm | 6.8 mm |
CTS Electrocomponents | 100000 Cycles | 0.25 mm | Plunger for Cap | Illuminated | SPST-NO | PC Pin | -20 ░C | 70 °C | 7.2 mm | 160 gf | Top Actuated | Off-Mom | Through Hole | Blue LED Red | 0.05 A 12 VDC | 2.1 VDC 3.2 VDC | 7 mm | 6.8 mm |
