842-116 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 116POS 0.100

Part	Mounting Type	Termination Rows [custom]	Number of Rows [custom]	Termination	Number of Positions/Bay/Row	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Read Out	Flange Feature	Gender	Card Type	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Color	Number of Positions	Contact Type	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 842-116-500-208	Through Hole	2	2	Solder Eyelet(s)	58	Copper Alloy	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Dual	4-40 Flush Mount Threaded Insert Top Opening	Female	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	125 °C	-40 C	0.1 "	2.54 mm	Green	116	Cantilever

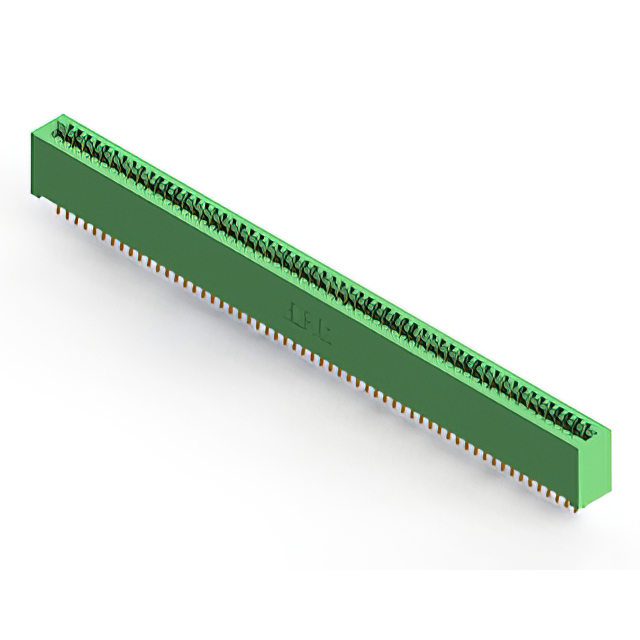

EDAC Inc. 842-116-556-201	Board Edge Straddle Mount	2	2	Solder	58	Copper Alloy	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Dual		Female	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	125 °C	-40 C	0.1 "	2.54 mm	Green	116	Cantilever	Card Extender
EDAC Inc. 842-116-540-208	Through Hole	2	2	Wire Wrap	58	Copper Alloy	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Dual	4-40 Flush Mount Threaded Insert Top Opening	Female	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	125 °C	-40 C	0.1 "	2.54 mm	Green	116	Cantilever

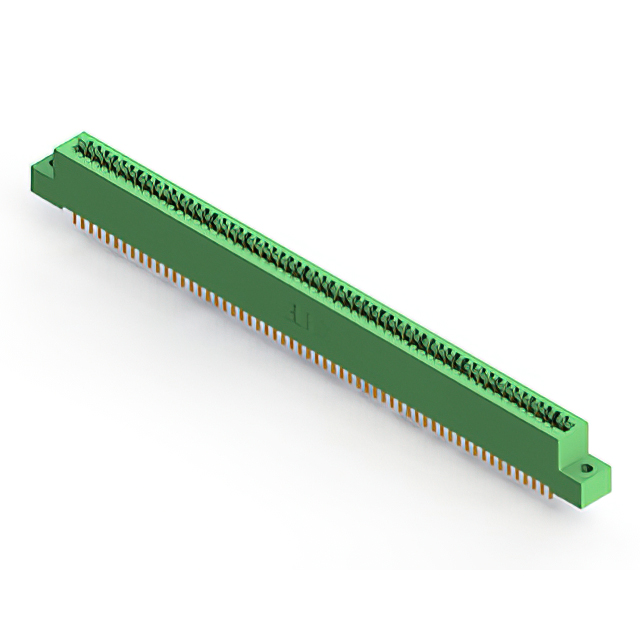

EDAC Inc. 842-116-521-202	Through Hole	2	2	Solder	58	Copper Alloy	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Dual	Flush Mount Top Opening Unthreaded	Female	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	125 °C	-40 C	0.1 "	2.54 mm	Green	116	Cantilever		3.25 mm	0.128 "
EDAC Inc. 842-116-540-207	Through Hole	2	2	Wire Wrap	58	Copper Alloy	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Dual	Flush Mount M3 Threaded Insert Top Opening	Female	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	125 °C	-40 C	0.1 "	2.54 mm	Green	116	Cantilever

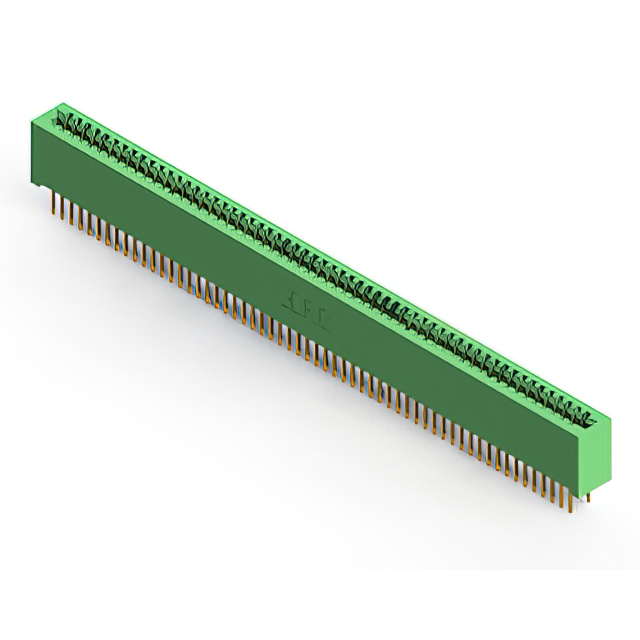

EDAC Inc. 842-116-523-201	Through Hole	2	2	Solder	58	Copper Alloy	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Dual		Female	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	125 °C	-40 C	0.1 "	2.54 mm	Green	116	Cantilever
EDAC Inc. 842-116-540-202	Through Hole	2	2	Wire Wrap	58	Copper Alloy	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Dual	Flush Mount Top Opening Unthreaded	Female	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	125 °C	-40 C	0.1 "	2.54 mm	Green	116	Cantilever		3.25 mm	0.128 "

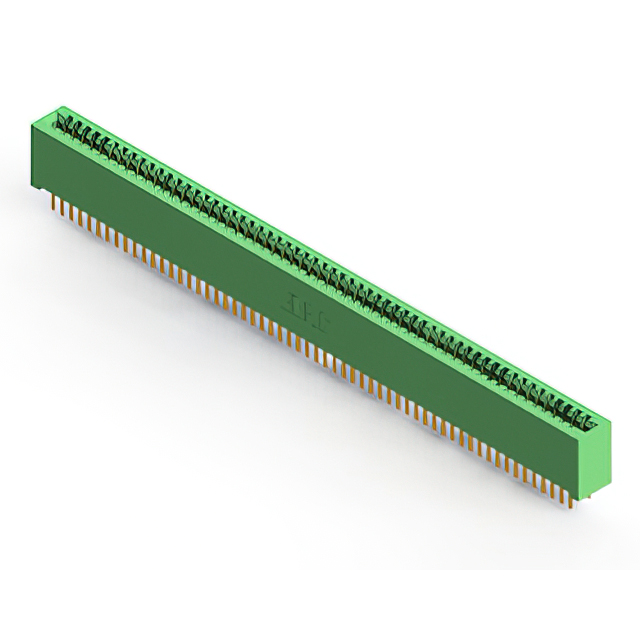

EDAC Inc. 842-116-520-201	Through Hole	2	2	Solder	58	Copper Alloy	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Dual		Female	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	125 °C	-40 C	0.1 "	2.54 mm	Green	116	Cantilever
EDAC Inc. 842-116-559-201	Right Angle Through Hole	2	2	Solder	58	Copper Alloy	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Dual		Female	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	125 °C	-40 C	0.1 "	2.54 mm	Green	116	Cantilever

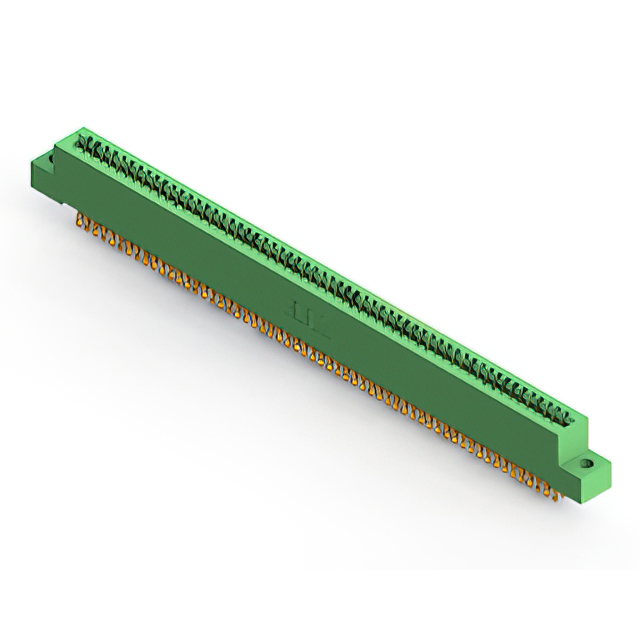

EDAC Inc. 842-116-555-204	Board Edge Straddle Mount	2	2	Solder	58	Copper Alloy	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Dual	Flush Mount Top Opening Unthreaded	Female	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	125 °C	-40 C	0.1 "	2.54 mm	Green	116	Cantilever	Card Extender	3.96 mm	0.156 "
