81044 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HOOK-UP STRND 6AWG 600V RED

...

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket (Insulation) Material	Cable Type	Grade	Voltage	Wire Gauge	Qualification	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Length [x]	Length [x]	Length	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]
TE Connectivity AMP Connectors 81044/6-6-2	0.005 in	0.13 mm	6.83 mm	0.269 "	Copper Tinned	Polyvinylidene Fluoride (PVDF) Irradiated	Hook-Up	Military	600 V	6 AWG	MIL-C-27500 MIL-W-81044	133	27 AWG	150 °C	-65 ░C	Red

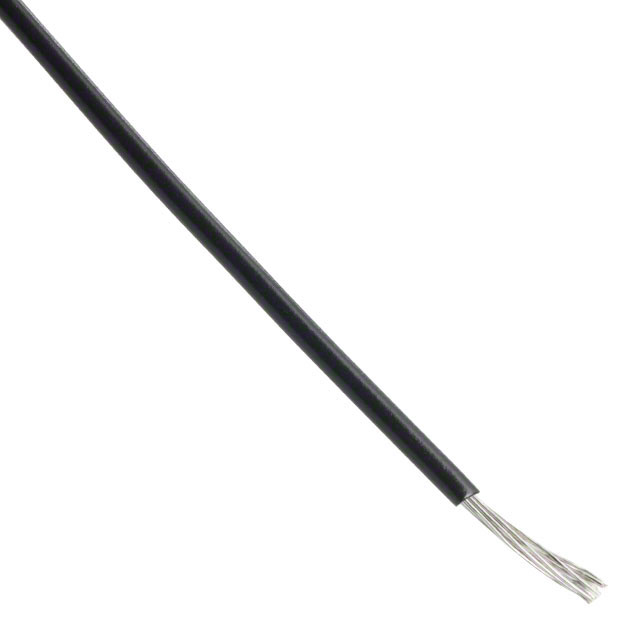

TE Connectivity AMP Connectors 81044/12-14-0CS3209	0.003 in	0.076 mm	2.26 mm	0.089 in	Copper Tinned	Polyvinyl Fluoride (PVF)	Hook-Up Dual Wall	Military	600 V	14.5 AWG	MIL-C-27500 MIL-W-81044			200 °C	-65 ░C	Black
TE Connectivity AMP Connectors 81044/9-8-9	0.005 in	0.13 mm	5.44 mm	0.214 in	Copper Tinned	Polyvinylidene Fluoride (PVDF)	Hook-Up Dual Wall	Military	600 V	8 AWG	MIL-C-27500 MIL-W-81044	133	29 AWG	150 °C	-65 ░C	White	7.62 m 30.5 m 300 mm	1 ' 25 ft 100 ft	15.24 m 152.4 m	50 ft 500 ft	Enter Number of Feet in Order Quantity
TE Connectivity AMP Connectors 81044/12-24-907	0.003 in	0.076 mm	1.02 mm	0.04 in	Copper Tinned	Polyvinyl Fluoride (PVF)	Hook-Up Dual Wall	Military	600 V	24 AWG	MIL-C-27500 MIL-W-81044			200 °C	-65 ░C	Black Violet Stripe White
TE Connectivity AMP Connectors 81044/9-12-5	0.005 in	0.13 mm	3.2 mm	0.126 in	Copper Tinned	Polyvinylidene Fluoride (PVDF) Irradiated	Hook-Up	Military	600 V	12 AWG	MIL-C-27500 MIL-W-81044	37	28 AWG	150 °C	-65 ░C	Green
TE Connectivity AMP Connectors 81044/6-22-9	0.005 in	0.13 mm	1.75 mm	0.069 "	Copper Tinned	Polyvinyl Fluoride (PVF)	Hook-Up Dual Wall	Military	600 V	22 AWG	MIL-C-27500 MIL-W-81044	19	34 AWG	150 °C	-65 ░C	White

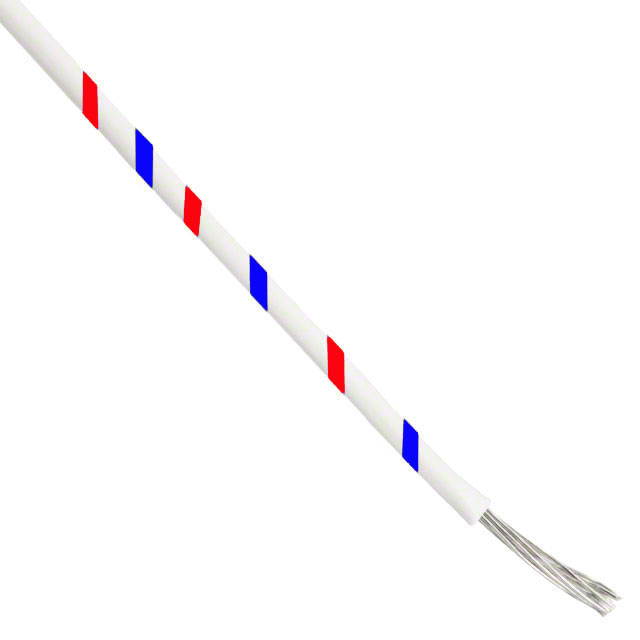

TE Connectivity AMP Connectors 81044/12-22-926	0.003 in	0.076 mm	1.19 mm	0.047 in	Copper Tinned	Polyvinyl Fluoride (PVF)	Hook-Up Dual Wall	Military	600 V	22 AWG	MIL-C-27500 MIL-W-81044	19	34 AWG	200 °C	-65 ░C	Blue Stripe Red White

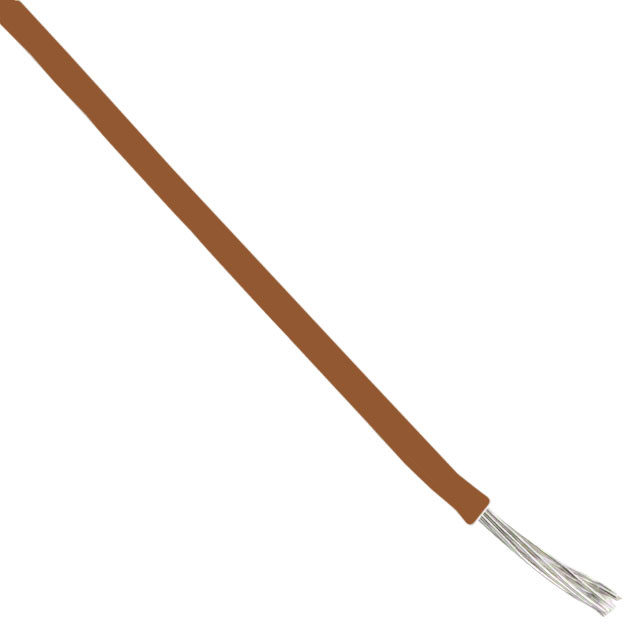

TE Connectivity AMP Connectors 81044/9-10-1	0.005 in	0.13 mm	3.94 mm	0.155 in	Copper Tinned	Polyvinylidene Fluoride (PVDF)	Hook-Up Dual Wall	Military	600 V	10 AWG	MIL-C-27500 MIL-W-81044			150 °C	-65 ░C	Brown						37	26 AWG
TE Connectivity AMP Connectors 81044/9-16-9	0.005 in	0.13 mm	2.26 mm	0.089 in	Copper Tinned	Polyvinylidene Fluoride (PVDF)	Hook-Up Dual Wall	Military	600 V	16 AWG	MIL-C-27500 MIL-W-81044	19	29	150 °C	-65 ░C	White	30.5 m 300 mm	1 ' 100 ft			Enter Number of Feet in Order Quantity
TE Connectivity AMP Connectors 81044/12-22-908	0.003 in	0.076 mm	1.19 mm	0.047 in	Copper Tinned	Polyvinylidene Fluoride (PVDF) Irradiated	Hook-Up	Military	600 V	22 AWG	MIL-C-27500 MIL-W-81044	19	34 AWG	150 °C	-65 ░C	Black Gray White Stripe
