680S7W2 Series
Manufacturer: NorComp Inc.
Beta
⌘K
COMBINATION LAYOUT D SUB CONNECTOR, 40 AMP, IP68, SEAL-D 680S SERIES, DA-7W2, PLUG, 7 CONTACTS
| Part | Contact Material | Dielectric Material | Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows [custom] | Ingress Protection | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Connector Style | Contact Finish Thickness | Flange Feature | Mounting Type | Shell Material, Finish | Current Rating (Amps) | Contact Type | Contact Finish | Number of Positions | Number of Positions [custom] | Number of Positions [custom] | Features | Connector Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) | Black | 155 C | -55 C | 2 | IP67 - Dust Tight Waterproof | A DA | 2 | 7W2 | UL94 V-0 | Combo D-Sub | Flash | Housing/Shell (Unthreaded) | Panel Mount | Nickel Plated Steel | 5 A 40 A | Signal and Power | Gold | 7 | 5 | 2 | Grounding Indents | Plug Male Pins | |

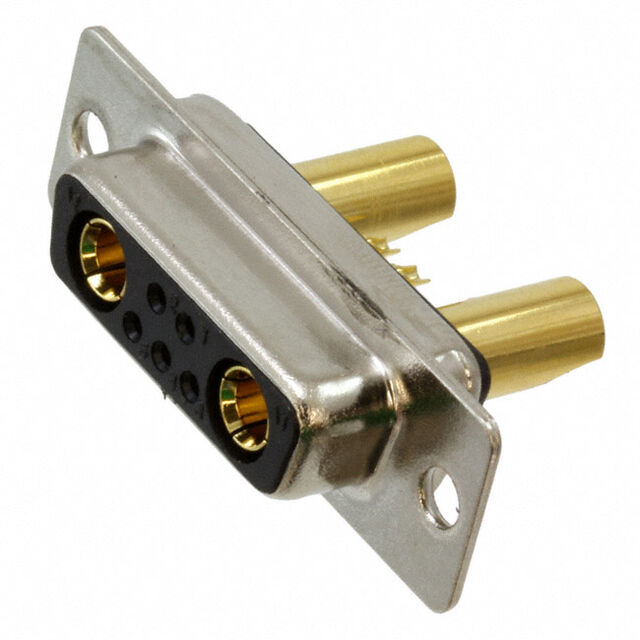

 NorComp Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) | Black | 155 C | -55 C | 2 | IP67 - Dust Tight Waterproof | A DA | 2 | 7W2 | UL94 V-0 | Combo D-Sub | Flash | Housing/Shell (Unthreaded) | Panel Mount | Nickel Plated Steel | Signal and Power | Gold | 7 | 5 | 2 | Receptacle Female Sockets | 20A 5A | ||
 NorComp Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) | Black | 155 C | -55 C | 2 | IP67 - Dust Tight Waterproof | A DA | 2 | 7W2 | UL94 V-0 | Combo D-Sub | Flash | Housing/Shell (Unthreaded) | Panel Mount | Nickel Plated Steel | 5 A 40 A | Signal and Power | Gold | 7 | 5 | 2 | Receptacle Female Sockets |
