842-010 Series
Manufacturer: EDAC Inc.
Beta
⌘K

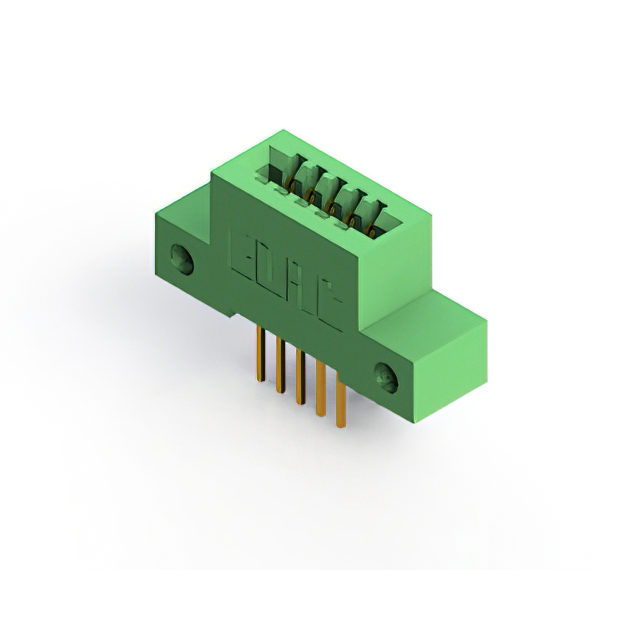

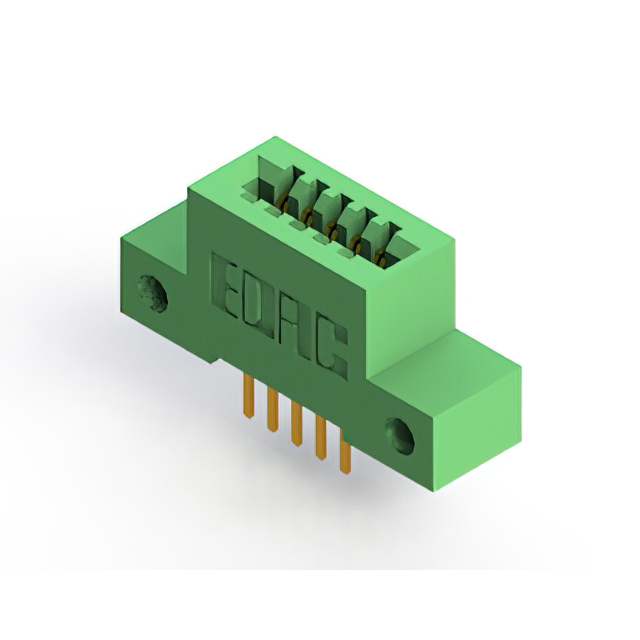

CONN EDGE SINGLE FML 10POS 0.100
| Part | Termination Rows | Material - Insulation | Contact Finish | Number of Rows | Color | Card Type | Flange Feature | Termination | Gender | Card Thickness [Max] | Card Thickness [Min] | Read Out | Contact Type | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row | Contact Material | Number of Positions | Termination Rows [custom] | Number of Rows [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 1 | Green | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Cantilever | Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | 125 °C | -40 C | 10 | Copper Alloy | 10 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Gold | Green | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Solder Eyelet(s) | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | 125 °C | -40 C | 5 | Copper Alloy | 10 | 2 | 2 | 0.156 " | 3.96 mm | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 1 | Green | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Cantilever | Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | 125 °C | -40 C | 10 | Copper Alloy | 10 | ||||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 1 | Green | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | Wire Wrap | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Cantilever | Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | 125 °C | -40 C | 10 | Copper Alloy | 10 | 0.128 " | 3.25 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Gold | Green | Non Specified - Dual Edge | Flush Mount Side Opening Unthreaded | Solder | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | 125 °C | -40 C | 5 | Copper Alloy | 10 | 2 | 2 | 0.128 " | 3.25 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Gold | Green | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | Solder | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | Right Angle Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | 125 °C | -40 C | 5 | Copper Alloy | 10 | 2 | 2 | ||||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 1 | Green | Non Specified - Single Edge | Flush Mount Side Opening Unthreaded | Solder | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Cantilever | Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | 125 °C | -40 C | 10 | Copper Alloy | 10 | 0.128 " | 3.25 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Gold | Green | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Solder | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | Right Angle Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | 125 °C | -40 C | 5 | Copper Alloy | 10 | 2 | 2 | 0.156 " | 3.96 mm | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 1 | Green | Non Specified - Single Edge | Wire Wrap | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Cantilever | Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | 125 °C | -40 C | 10 | Copper Alloy | 10 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Gold | Green | Non Specified - Dual Edge | Wire Wrap | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | 125 °C | -40 C | 5 | Copper Alloy | 10 | 2 | 2 |
