RF55-32 Series
Manufacturer: Adam Tech
Beta
⌘K
FAKRA PLUG SMB TYPE: RIGHT ANGLE
| Part | Body Finish | Body Material | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Shield Termination | Connector Style | Fastening Type | Center Contact Material | Impedance | Features | Housing Color | Connector Type | Mounting Type | Frequency - Max [Max] | Contact Termination | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

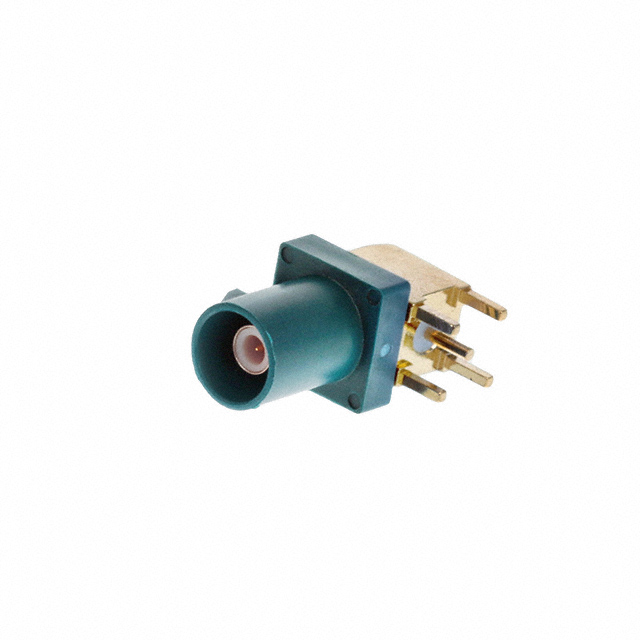

 Adam Tech | Nickel Tin | Brass | Gold | 85 °C | -40 C | Solder | Fakra SMB | Locking Ramp | Phosphor Bronze | 50 Ohms | Code Z | Blue Water | Plug Male Pin | Right Angle Through Hole | 4 GHz | Solder | 1 |

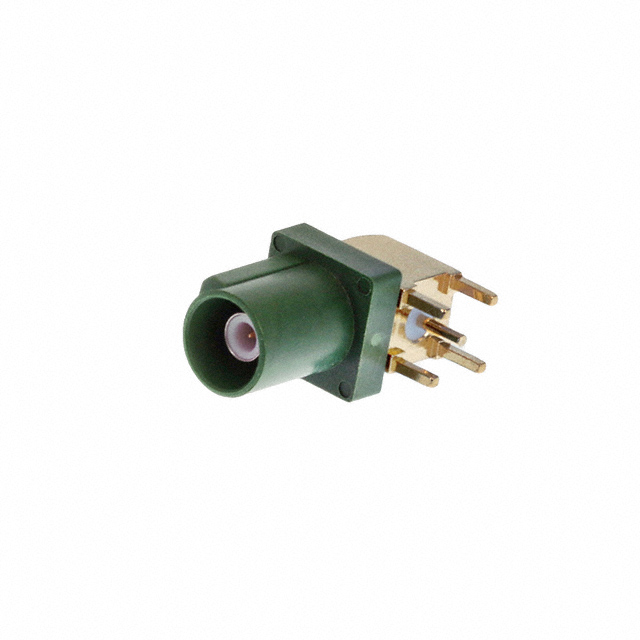

 Adam Tech | Nickel Tin | Brass | Gold | 85 °C | -40 C | Solder | Fakra SMB | Locking Ramp | Phosphor Bronze | 50 Ohms | Code E | Green | Plug Male Pin | Right Angle Through Hole | 4 GHz | Solder | 1 |

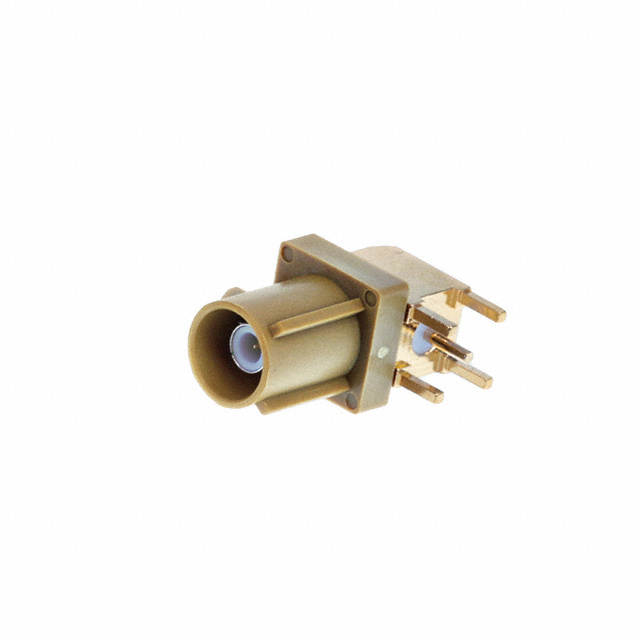

 Adam Tech | Nickel Tin | Brass | Gold | 85 °C | -40 C | Solder | Fakra SMB | Locking Ramp | Phosphor Bronze | 50 Ohms | Code K | Curry | Plug Male Pin | Right Angle Through Hole | 4 GHz | Solder | 1 |
 Adam Tech | Nickel Tin | Brass | Gold | 85 °C | -40 C | Solder | Fakra SMB | Locking Ramp | Phosphor Bronze | 50 Ohms | Code C | Blue | Plug Male Pin | Right Angle Through Hole | 4 GHz | Solder | 1 |

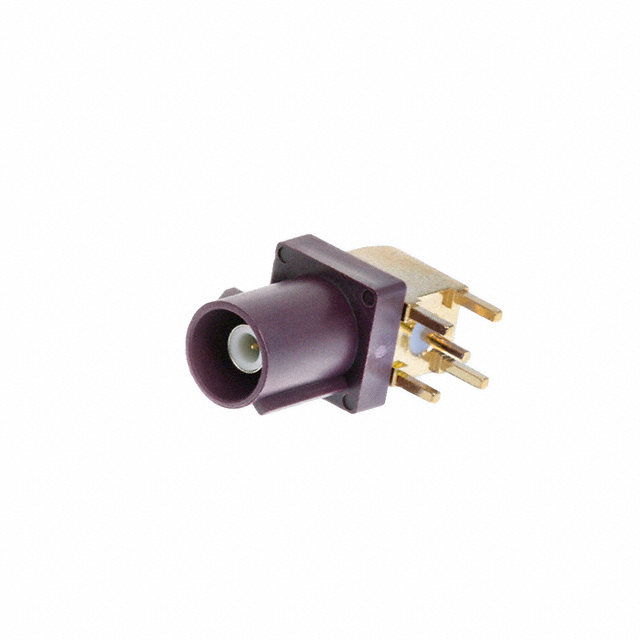

 Adam Tech | Nickel Tin | Brass | Gold | 85 °C | -40 C | Solder | Fakra SMB | Locking Ramp | Phosphor Bronze | 50 Ohms | Code D | Bordeaux Violet | Plug Male Pin | Right Angle Through Hole | 4 GHz | Solder | 1 |
