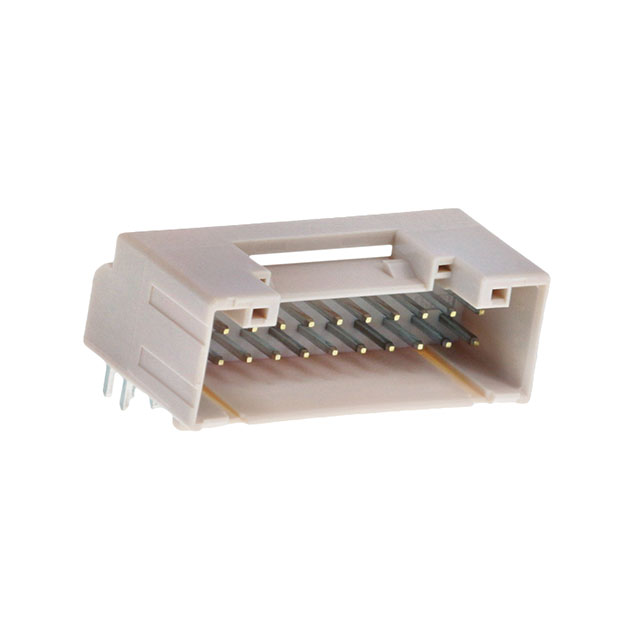

S22B-PUD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 22POS 2MM
| Part | Insulation Height | Insulation Height | Shrouding | Number of Positions Loaded | Contact Type | Features | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Voltage Rating | Termination | Material Flammability Rating | Number of Rows [custom] | Row Spacing - Mating | Row Spacing - Mating | Mounting Type | Contact Length - Post | Contact Length - Post | Insulation Color | Contact Material | Fastening Type | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Current Rating (Amps) | Insulation Material | Style | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 0.335 " | 8.51 mm | Shrouded - 4 Wall | All | Male Pin | Board Guide | Square | 85 °C | -25 °C | Header | 250 V | Solder | UL94 V-0 | 2 | 2 mm | 0.079 in | Right Angle Through Hole | 0.118 in | 3 mm | Natural | Copper Alloy | Latch Holder | 0.079 " | 2 mm | Tin | 3 A | Glass Filled Nylon 6/6 Polyamide (PA66) | Board to Cable/Wire | 22 |
