RBB13 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FMALE 26POS 0.050

Part	Material - Insulation	Features	Gender	Card Thickness	Card Thickness	Color	Read Out	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows [custom]	Contact Type	Termination	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Pitch	Pitch	Mounting Type	Contact Material	Number of Positions/Bay/Row	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
Sullins Connector Solutions RBB13DYRN	Polyphenylene Sulfide (PPS)	Card Extender	Female	1.57 mm	0.062 in	Black	Dual	0.25 Ám	10 Áin	Gold	2	Cantilever	Solder	Non Specified - Dual Edge	-65 ░C	125 °C	26	0.05 in	1.27 mm	Board Edge Straddle Mount	Phosphor Bronze	13
Sullins Connector Solutions RBB13DYFD	Polyphenylene Sulfide (PPS)		Female	1.57 mm	0.062 in	Black	Dual	0.25 Ám	10 Áin	Gold	2	Cantilever	Solder	Non Specified - Dual Edge	-65 ░C	125 °C	26	0.05 in	1.27 mm	Surface Mount	Phosphor Bronze	13	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions RBB13DHAD	Polyphenylene Sulfide (PPS)		Female	1.57 mm	0.062 in	Black	Dual	0.25 Ám	10 Áin	Gold	2	Hairpin Bellows	Solder Staggered	Non Specified - Dual Edge	-65 ░C	125 °C	26	0.05 in	1.27 mm	Right Angle Through Hole	Phosphor Bronze	13	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "

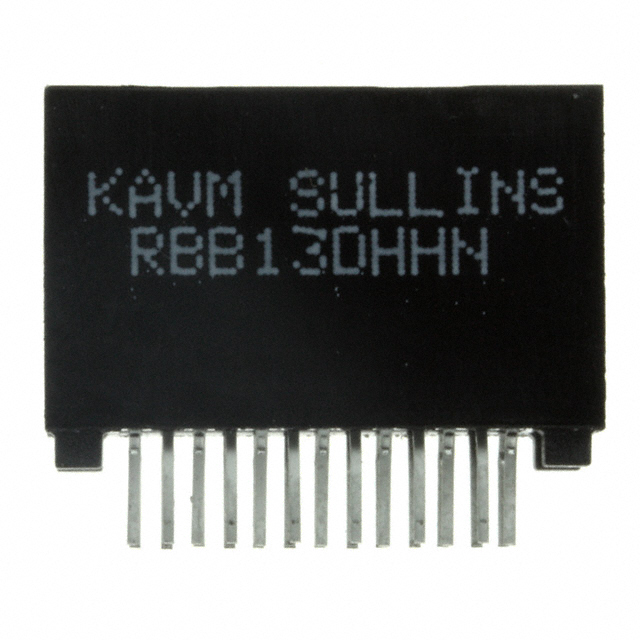

Sullins Connector Solutions RBB13DHHN	Polyphenylene Sulfide (PPS)		Female	1.57 mm	0.062 in	Black	Dual	0.25 Ám	10 Áin	Gold	2	Hairpin Bellows	Solder Staggered	Non Specified - Dual Edge	-65 ░C	125 °C	26	0.05 in	1.27 mm	Through Hole	Phosphor Bronze	13
Sullins Connector Solutions RBB13DHHT	Polyphenylene Sulfide (PPS)		Female	1.57 mm	0.062 in	Black	Dual	0.25 Ám	10 Áin	Gold	2	Hairpin Bellows	Solder Staggered	Non Specified - Dual Edge	-65 ░C	125 °C	26	0.05 in	1.27 mm	Through Hole	Phosphor Bronze	13	4-40 Flush Mount Threaded Insert Top Opening
Sullins Connector Solutions RBB13DHBR	Polyphenylene Sulfide (PPS)	Board Lock	Female	1.57 mm	0.062 in	Black	Dual	0.25 Ám	10 Áin	Gold	2	Hairpin Bellows	Solder Staggered	Non Specified - Dual Edge	-65 ░C	125 °C	26	0.05 in	1.27 mm	Right Angle Through Hole	Phosphor Bronze	13
Sullins Connector Solutions RBB13DHLD	Polyphenylene Sulfide (PPS)		Female	1.57 mm	0.062 in	Black	Dual	0.25 Ám	10 Áin	Gold	2	Hairpin Bellows	Solder	Non Specified - Dual Edge	-65 ░C	125 °C	26	0.05 in	1.27 mm	Through Hole	Phosphor Bronze	13	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions RBB13DHRN	Polyphenylene Sulfide (PPS)	Card Extender	Female	1.57 mm	0.062 in	Black	Dual	0.25 Ám	10 Áin	Gold	2	Hairpin Bellows	Solder	Non Specified - Dual Edge	-65 ░C	125 °C	26	0.05 in	1.27 mm	Board Edge Straddle Mount	Phosphor Bronze	13
Sullins Connector Solutions RBB13DYFR	Polyphenylene Sulfide (PPS)	Board Lock	Female	1.57 mm	0.062 in	Black	Dual	0.25 Ám	10 Áin	Gold	2	Cantilever	Solder	Non Specified - Dual Edge	-65 ░C	125 °C	26	0.05 in	1.27 mm	Surface Mount	Phosphor Bronze	13
Sullins Connector Solutions RBB13DYFN-S1355	Polyphenylene Sulfide (PPS)		Female	1.57 mm	0.062 in	Black	Dual	0.25 Ám	10 Áin	Gold	2	Cantilever	Solder	Non Specified - Dual Edge	-65 ░C	125 °C	26	0.05 in	1.27 mm	Surface Mount	Phosphor Bronze	13
