WR13AF Series

Catalog

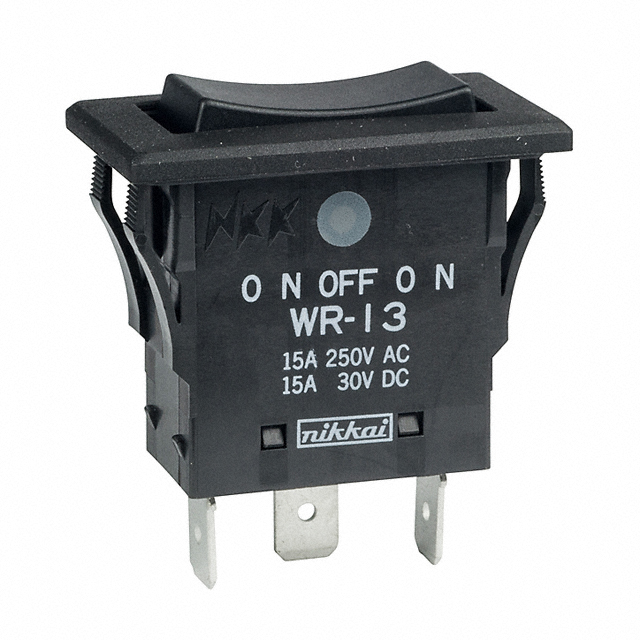

SWITCH ROCKER SPDT 15A 125V

Part	Electrical Life	Mechanical Life	Mounting Type	Voltage Rating - DC	Color - Actuator/Cap	Voltage Rating - AC	Termination Style	Actuator Type	Approval Agency	Circuit	Ingress Protection	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating (Amps)	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Features
NKK Switches WR13AF/UCV	10000 Cycles	30000 Steps	Panel Mount Snap-In	30 V	Black	125 V	Quick Connect - 0.250" (6.3mm)	Concave (Curved)	EN UL	SPDT	IP67 - Dust Tight Waterproof	34.2 mm	17.2 mm	15 A	No Marking	85 °C	-25 °C	On-Off-On	Epoxy Sealed Terminals
NKK Switches WR13AFN	10000 Cycles	30000 Steps	Panel Mount Snap-In	30 V	Black	125 V	Quick Connect - 0.250" (6.3mm)	Concave (Curved)	EN UL	SPDT	IP67 - Dust Tight Waterproof	34.2 mm	17.2 mm	15 A	No Marking	85 °C	-25 °C	On-Off-On	Epoxy Sealed Terminals
NKK Switches WR13AFN/UCV	10000 Cycles	30000 Steps	Panel Mount Snap-In	30 V	Black	125 V	Quick Connect - 0.250" (6.3mm)	Concave (Curved)	EN UL	SPDT	IP67 - Dust Tight Waterproof	34.2 mm	17.2 mm	15 A	No Marking	85 °C	-25 °C	On-Off-On	Epoxy Sealed Terminals
NKK Switches WR13AF/V	10000 Cycles	30000 Steps	Panel Mount Snap-In	30 V	Black	125 V	Quick Connect - 0.250" (6.3mm)	Concave (Curved)	EN UL	SPDT	IP67 - Dust Tight Waterproof	34.2 mm	17.2 mm	15 A	No Marking	85 °C	-25 °C	On-Off-On	Epoxy Sealed Terminals
NKK Switches WR13AFN/V	10000 Cycles	30000 Steps	Panel Mount Snap-In	30 V	Black	125 V	Quick Connect - 0.250" (6.3mm)	Concave (Curved)	EN UL	SPDT	IP67 - Dust Tight Waterproof	34.2 mm	17.2 mm	15 A	No Marking	85 °C	-25 °C	On-Off-On	Epoxy Sealed Terminals
