0669-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material	Socket Depth	Socket Depth	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall	Length - Overall	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 0669-0-15-15-30-14-10-0	-55 C	125 °C	Solder	Beryllium Copper	2.54 mm	0.1 in	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	0.072 "	1.83 mm	0.125 in	3.18 mm	0.06 in	1.52 mm	No Tail	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0669-0-15-01-30-14-10-0	-55 C	125 °C	Solder	Beryllium Copper	2.54 mm	0.1 in	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	0.072 "	1.83 mm	0.125 in	3.18 mm	0.06 in	1.52 mm	No Tail	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0669-0-15-80-30-27-10-0	-55 C	125 °C	Solder	Beryllium Copper	2.54 mm	0.1 in	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	0.072 "	1.83 mm	0.125 in	3.18 mm	0.06 in	1.52 mm	No Tail	0.76 Ám	30 Áin

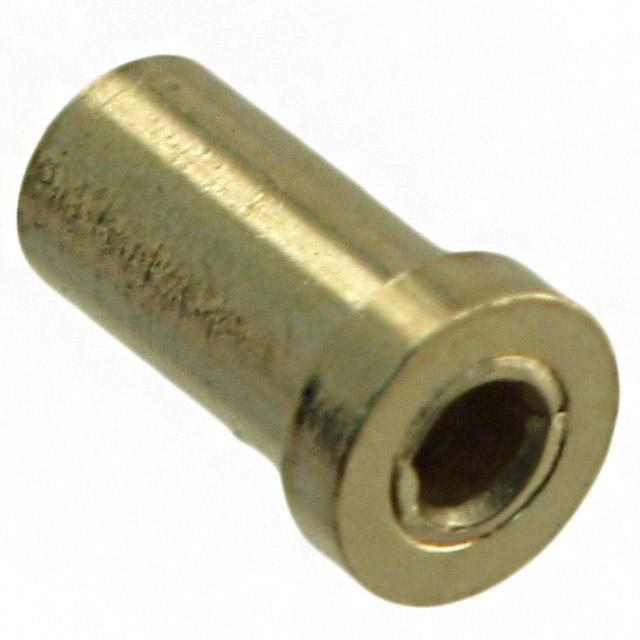

Mill-Max Manufacturing Corp. 0669-0-15-15-30-27-10-0	-55 C	125 °C	Solder	Beryllium Copper	2.54 mm	0.1 in	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	0.072 "	1.83 mm	0.125 in	3.18 mm	0.06 in	1.52 mm	No Tail	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 0669-0-15-01-30-02-10-0	-55 C	125 °C	Solder	Beryllium Copper	2.54 mm	0.1 in	Tin-Lead	0.64 mm	0.015 "	0.025 in	0.38 mm	0.072 "	1.83 mm	0.125 in	3.18 mm	0.06 in	1.52 mm	No Tail	2.54 µm	100 µin
