860-80 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER VERT 4POS 1MM

...

Part	Mounting Type	Contact Material	Pitch - Mating	Pitch - Mating	Contact Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Number of Positions	Insulation Color	Voltage Rating	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Fastening Type	Number of Positions Loaded	Insulation Material	Shrouding	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Termination	Connector Type	Contact Finish - Post

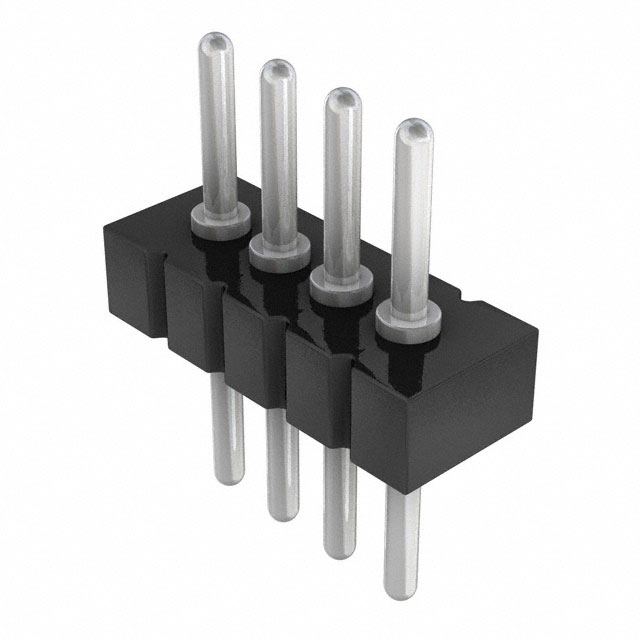

Preci-Dip 860-80-004-10-001101	Through Hole	Brass	1 mm	0.039 in	Male Pin	Circular	-55 C	125 °C	1	4	Black	150 VDC	UL94 V-0	2.2 mm	0.086 in	2.5 mm	0.098 in	Push-Pull	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Unshrouded	1.2 mm	0.047 in	0.241 in	6.13 mm	Solder	Header	Tin
Preci-Dip 860-80-017-10-001101	Through Hole	Brass	1 mm	0.039 in	Male Pin	Circular	-55 C	125 °C	1		Black	150 VDC	UL94 V-0	2.2 mm	0.086 in	2.5 mm	0.098 in	Push-Pull	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Unshrouded	1.2 mm	0.047 in	0.241 in	6.13 mm	Solder	Header	Tin

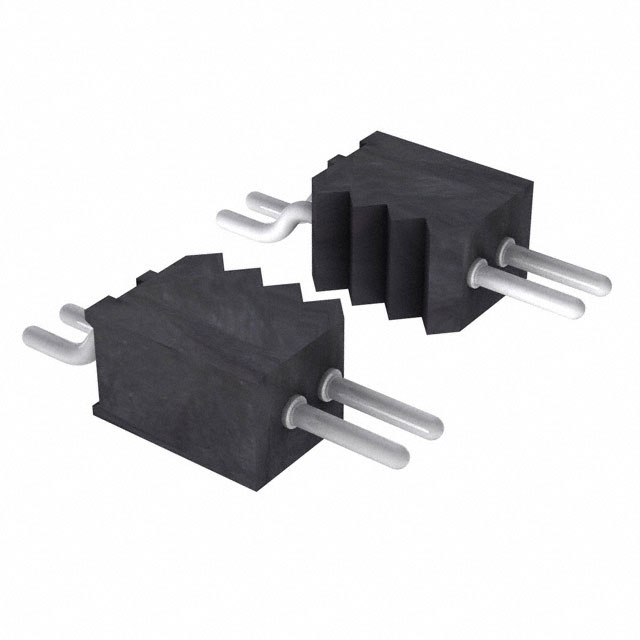

Preci-Dip 860-80-025-40-001101	Right Angle Surface Mount	Brass	1 mm	0.039 in	Male Pin	Circular	-55 C	125 °C	1	25	Black	150 VDC	UL94 V-0	2.2 mm	0.086 in			Push-Pull	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Unshrouded	2.2 mm	0.087 "			Solder	Header	Tin
Preci-Dip 860-80-022-10-001101	Through Hole	Brass	1 mm	0.039 in	Male Pin	Circular	-55 C	125 °C	1	22	Black	150 VDC	UL94 V-0	2.2 mm	0.086 in	2.5 mm	0.098 in	Push-Pull	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Unshrouded	1.2 mm	0.047 in	0.241 in	6.13 mm	Solder	Header	Tin
Preci-Dip 860-80-014-40-001191	Right Angle Surface Mount	Brass	1 mm	0.039 in	Male Pin	Circular	-55 C	125 °C	1	14	Black	150 VDC	UL94 V-0	2.2 mm	0.086 in			Push-Pull	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Unshrouded	2.2 mm	0.087 "			Solder	Header	Tin
Preci-Dip 860-80-012-40-001101	Right Angle Surface Mount	Brass	1 mm	0.039 in	Male Pin	Circular	-55 C	125 °C	1	12	Black	150 VDC	UL94 V-0	2.2 mm	0.086 in			Push-Pull	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Unshrouded	2.2 mm	0.087 "			Solder	Header	Tin
Preci-Dip 860-80-029-10-001101	Through Hole	Brass	1 mm	0.039 in	Male Pin	Circular	-55 C	125 °C	1	29	Black	150 VDC	UL94 V-0	2.2 mm	0.086 in	2.5 mm	0.098 in	Push-Pull	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Unshrouded	1.2 mm	0.047 in	0.241 in	6.13 mm	Solder	Header	Tin
Preci-Dip 860-80-006-10-001101	Through Hole	Brass	1 mm	0.039 in	Male Pin	Circular	-55 C	125 °C	1	6	Black	150 VDC	UL94 V-0	2.2 mm	0.086 in	2.5 mm	0.098 in	Push-Pull	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Unshrouded	1.2 mm	0.047 in	0.241 in	6.13 mm	Solder	Header	Tin
Preci-Dip 860-80-009-10-001101	Through Hole	Brass	1 mm	0.039 in	Male Pin	Circular	-55 C	125 °C	1	9	Black	150 VDC	UL94 V-0	2.2 mm	0.086 in	2.5 mm	0.098 in	Push-Pull	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Unshrouded	1.2 mm	0.047 in	0.241 in	6.13 mm	Solder	Header	Tin
Preci-Dip 860-80-028-10-001101	Through Hole	Brass	1 mm	0.039 in	Male Pin	Circular	-55 C	125 °C	1	28	Black	150 VDC	UL94 V-0	2.2 mm	0.086 in	2.5 mm	0.098 in	Push-Pull	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Unshrouded	1.2 mm	0.047 in	0.241 in	6.13 mm	Solder	Header	Tin
