D4F-102 Series

Manufacturer: Omron Automation and Safety

Catalog

SWITCH SNAP ACTION DPST 15A 120V

Part	Features	Switch Function	Operating Position	Operating Position	Termination Style	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Mechanical Life	Overtravel [custom]	Overtravel [custom]	Voltage Rating - DC	Ingress Protection	Current Rating (Amps)	Actuator Type	Operating Force	Release Force	Circuit	Mounting Type	Pretravel	Pretravel
Omron Automation and Safety D4F-102-5R	Cable Length 5m	Off-Mom On-Mom	1.156 in	29.4 mm	Cable Leads	150000 Cycles	-30 ░C	70 °C	120 V	10000000 Cycles	0.125 in	3.2 mm	125 VDC	IP67 - Dust Tight Waterproof	15 A 550 mA	Roller Plunger	1224 gf	153 gf	DPST-NO/NC	Chassis Mount	1.2 mm	0.047 in

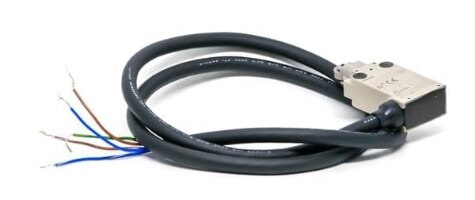

Omron Automation and Safety D4F-102-3D	Cable Length 3m	Off-Mom On-Mom	1.156 in	29.4 mm	Cable Leads	150000 Cycles	-30 ░C	70 °C	120 V	10000000 Cycles	0.125 in	3.2 mm	125 VDC	IP67 - Dust Tight Waterproof	15 A 550 mA	Roller Plunger	1224 gf	153 gf	DPST-NO/NC	Chassis Mount	1.2 mm	0.047 in
Omron Automation and Safety D4F-102-1R	Cable Length 1m	Off-Mom On-Mom	1.156 in	29.4 mm	Cable Leads	150000 Cycles	-30 ░C	70 °C	120 V	10000000 Cycles	0.125 in	3.2 mm	125 VDC	IP67 - Dust Tight Waterproof	15 A 550 mA	Roller Plunger	1224 gf	153 gf	DPST-NO/NC	Chassis Mount	1.2 mm	0.047 in

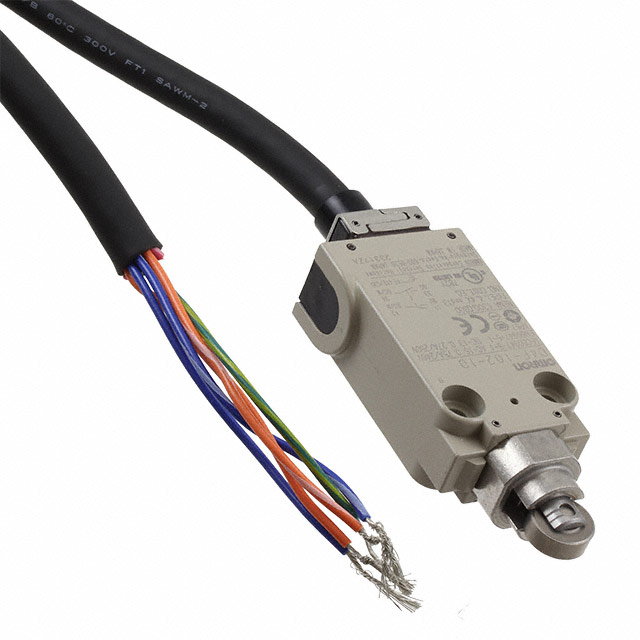

Omron Automation and Safety D4F-102-1D	Cable Length 1m	Off-Mom On-Mom	1.156 in	29.4 mm	Cable Leads	150000 Cycles	-30 ░C	70 °C	120 V	10000000 Cycles	0.125 in	3.2 mm	125 VDC	IP67 - Dust Tight Waterproof	15 A 550 mA	Roller Plunger	1224 gf	153 gf	DPST-NO/NC	Chassis Mount	1.2 mm	0.047 in
Omron Automation and Safety D4F-102-3R	Cable Length 3m	Off-Mom On-Mom	1.156 in	29.4 mm	Cable Leads	150000 Cycles	-30 ░C	70 °C	120 V	10000000 Cycles	0.125 in	3.2 mm	125 VDC	IP67 - Dust Tight Waterproof	15 A 550 mA	Roller Plunger	1224 gf	153 gf	DPST-NO/NC	Chassis Mount	1.2 mm	0.047 in
