75867 Series

Catalog

CONN HEADER R/A 60POS 2.54MM

Part	Contact Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Shape	Connector Type	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Contact Finish - Mating	Number of Positions	Contact Material	Number of Rows	Features	Shrouding	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded

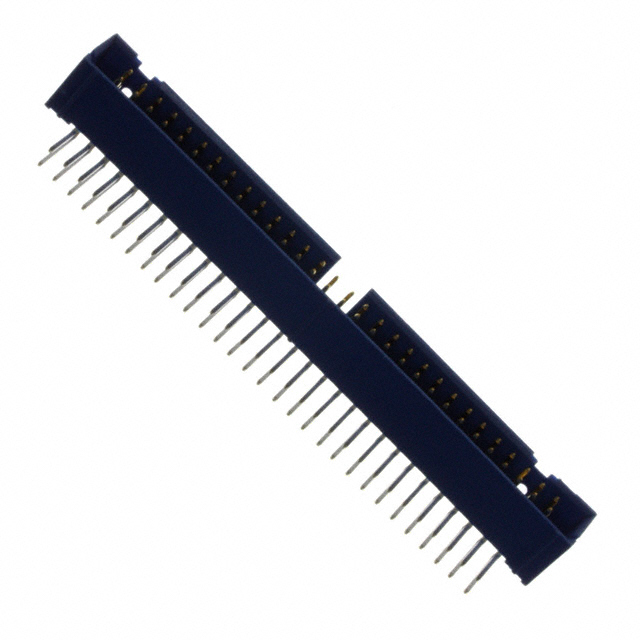

Amphenol ICC (FCI) 75867-109LF	Male Pin	Tin	0.1 in	2.54 mm	Push-Pull	Square	Header	UL94 V-0	6 mm	0.236 in	0.362 in	9.2 mm	Gold GXT™	60	Phosphor Bronze	2	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	30 Áin	0.76 Ám	Solder	All	2 çm	78.7 çin	Blue	Through Hole Right Angle	0.12 in	3.05 mm	2.54 mm	0.1 in

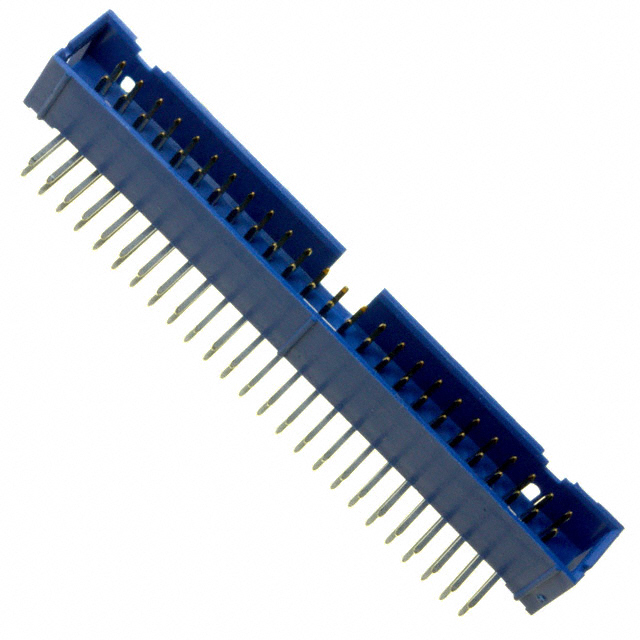

Amphenol ICC (FCI) 75867-108LF	Male Pin	Tin	0.1 in	2.54 mm	Push-Pull	Square	Header	UL94 V-0	6 mm	0.236 in	0.362 in	9.2 mm	Gold GXT™	50	Phosphor Bronze	2	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	30 Áin	0.76 Ám	Solder	All	2 çm	78.7 çin	Blue	Through Hole Right Angle	0.12 in	3.05 mm	2.54 mm	0.1 in
Amphenol ICC (FCI) 75867-309LF	Male Pin	Tin	0.1 in	2.54 mm	Push-Pull	Square	Header	UL94 V-0	6 mm	0.236 in	0.362 in	9.2 mm	Gold GXT™	60	Phosphor Bronze	2	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	15 µin	0.38 µm	Solder	All	2 çm	78.7 çin	Blue	Through Hole Right Angle	0.12 in	3.05 mm	2.54 mm	0.1 in
Amphenol ICC (FCI) 75867-130T	Male Pin		0.1 in	2.54 mm	Push-Pull	Square	Header	UL94 V-0	6 mm	0.236 in	0.362 in	9.2 mm	Gold GXT™	4	Phosphor Bronze	2	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	30 Áin	0.76 Ám	Solder	All			Blue	Through Hole Right Angle	0.12 in	3.05 mm	2.54 mm	0.1 in
Amphenol ICC (FCI) 75867-310LF	Male Pin	Tin	0.1 in	2.54 mm	Push-Pull	Square	Header	UL94 V-0	6 mm	0.236 in	0.362 in	9.2 mm	Gold GXT™	64	Phosphor Bronze	2	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	15 µin	0.38 µm	Solder	All	2 çm	78.7 çin	Blue	Through Hole Right Angle	0.12 in	3.05 mm	2.54 mm	0.1 in
Amphenol ICC (FCI) 75867-312LF	Male Pin	Tin	0.1 in	2.54 mm	Push-Pull	Square	Header	UL94 V-0	6 mm	0.236 in	0.362 in	9.2 mm	Gold GXT™		Phosphor Bronze	2	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	15 µin	0.38 µm	Solder	All	2 çm	78.7 çin	Blue	Through Hole Right Angle	0.12 in	3.05 mm	2.54 mm	0.1 in

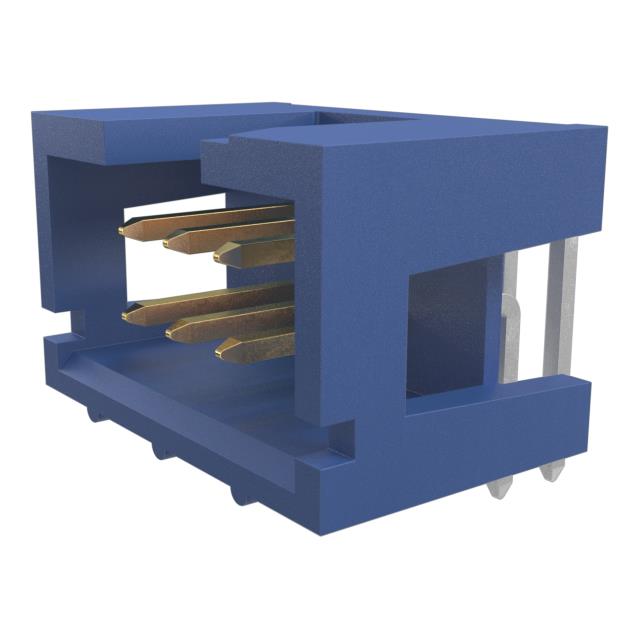

Amphenol ICC (FCI) 75867-331LF	Male Pin	Tin	0.1 in	2.54 mm	Push-Pull	Square	Header	UL94 V-0	6 mm	0.236 in	0.362 in	9.2 mm	Gold GXT™	6	Phosphor Bronze	2	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	15 µin	0.38 µm	Solder	All	2 çm	78.7 çin	Blue	Through Hole Right Angle	0.12 in	3.05 mm	2.54 mm	0.1 in
Amphenol ICC (FCI) 75867-314LF	Male Pin	Tin	0.1 in	2.54 mm	Push-Pull	Square	Header	UL94 V-0	6 mm	0.236 in	0.362 in	9.2 mm	Gold GXT™	40	Phosphor Bronze	2	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	15 µin	0.38 µm	Solder		2 çm	78.7 çin	Blue	Through Hole Right Angle	0.12 in	3.05 mm	2.54 mm	0.1 in	39

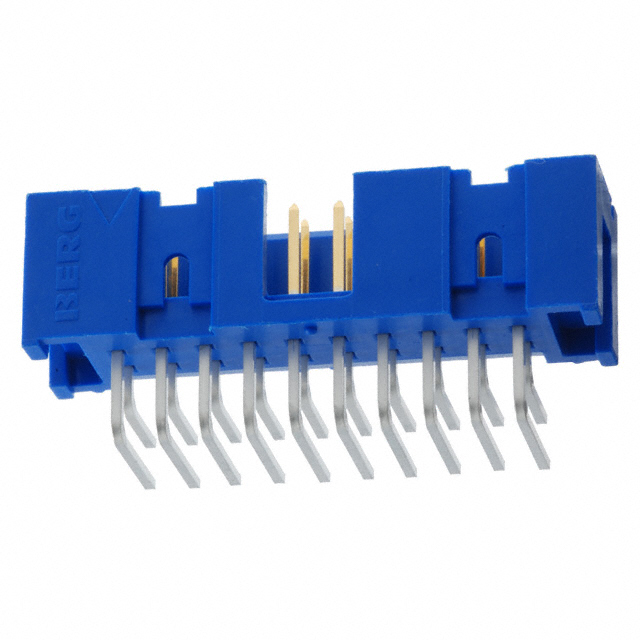

Amphenol ICC (FCI) 75867-104	Male Pin		0.1 in	2.54 mm	Push-Pull	Square	Header	UL94 V-0	6 mm	0.236 in	0.362 in	9.2 mm	Gold GXT™	20	Phosphor Bronze	2	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	30 Áin	0.76 Ám	Solder	All			Blue	Through Hole Right Angle	0.12 in	3.05 mm	2.54 mm	0.1 in
Amphenol ICC (FCI) 75867-131	Male Pin		0.1 in	2.54 mm	Push-Pull	Square	Header	UL94 V-0	6 mm	0.236 in	0.362 in	9.2 mm	Gold GXT™	6	Phosphor Bronze	2	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	30 Áin	0.76 Ám	Solder	All			Blue	Through Hole Right Angle	0.12 in	3.05 mm	2.54 mm	0.1 in
