XLMYK65 Series
Manufacturer: SunLED
Beta
⌘K

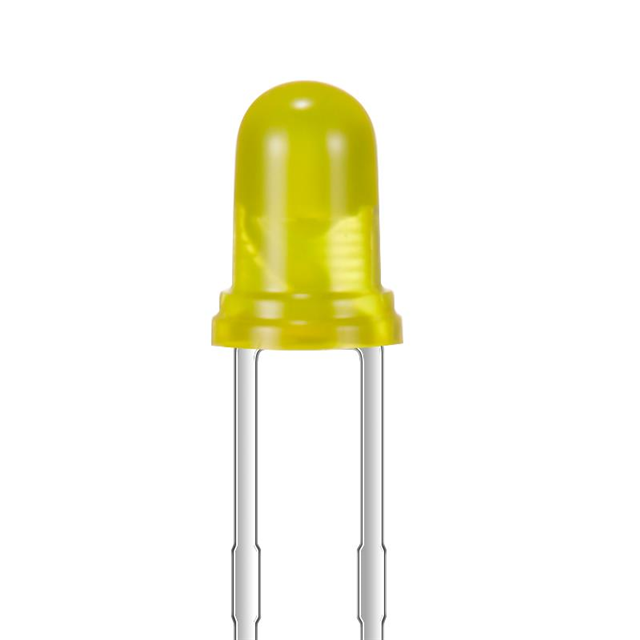

LED YELLOW DIFFUSED T-1 T/H
| Part | Size / Dimension [diameter] | Millicandela Rating | Supplier Device Package | Lens Size | Lens Size | Lens Transparency | Current - Test | Color | Lens Style | Wavelength - Dominant | Lens Color | Viewing Angle | Wavelength - Peak | Package / Case | Voltage - Forward (Vf) (Typ) | Mounting Type | Height (Max) [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 3 mm | 497 mcd | T-1 (3mm) | 3 mm | T-1 | Diffused | 20 mA | Yellow | Round with Domed Top | 590 nm | Yellow | 60 ° | 590 nm | Radial | 2 V | Through Hole | 6.45 mm |
