746-112 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 112POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Number of Positions	Number of Positions/Bay/Row	Card Type	Color	Contact Type	Contact Material	Termination	Mounting Type	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Pitch	Pitch
EDAC Inc. 746-112-553-206	Polyester Thermoplastic	2	112	56	Non Specified - Dual Edge	Black	Cantilever	Copper Alloy	Press-Fit Wire Wrap	Through Hole	2	30 Áin	0.76 Ám	Dual	-40 C	105 ░C	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in
EDAC Inc. 746-112-553-601	Polyester Thermoplastic	2	112	56	Non Specified - Dual Edge	Black	Cantilever	Copper Alloy	Press-Fit Wire Wrap	Through Hole	2	30 Áin	0.76 Ám	Dual	-40 C	105 ░C	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in
EDAC Inc. 746-112-525-601	Polyester Thermoplastic	2	112	56	Non Specified - Dual Edge	Black	Cantilever	Copper Alloy	Press-Fit	Through Hole	2	30 Áin	0.76 Ám	Dual	-40 C	105 ░C	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in
EDAC Inc. 746-112-545-601	Polyester Thermoplastic	2	112	56	Non Specified - Dual Edge	Black	Cantilever	Copper Alloy	Press-Fit Wire Wrap	Through Hole	2	30 Áin	0.76 Ám	Dual	-40 C	105 ░C	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in
EDAC Inc. 746-112-520-601	Polyester Thermoplastic	2	112	56	Non Specified - Dual Edge	Black	Cantilever	Copper Alloy	Press-Fit	Through Hole	2	30 Áin	0.76 Ám	Dual	-40 C	105 ░C	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in
EDAC Inc. 746-112-525-201	Polyester Thermoplastic	2	112	56	Non Specified - Dual Edge	Black	Cantilever	Copper Alloy	Press-Fit	Through Hole	2	30 Áin	0.76 Ám	Dual	-40 C	105 ░C	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in

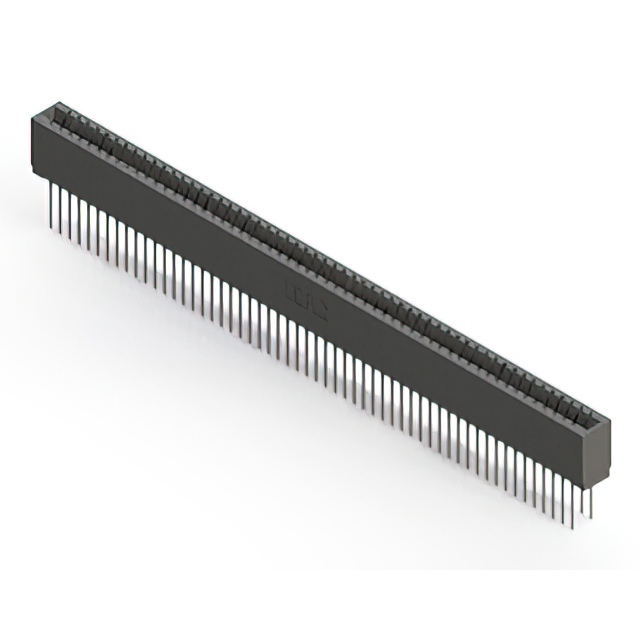

EDAC Inc. 746-112-540-201	Polyester Thermoplastic	2	112	56	Non Specified - Dual Edge	Black	Cantilever	Copper Alloy	Press-Fit Wire Wrap	Through Hole	2	30 Áin	0.76 Ám	Dual	-40 C	105 ░C	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in
EDAC Inc. 746-112-525-606	Polyester Thermoplastic	2	112	56	Non Specified - Dual Edge	Black	Cantilever	Copper Alloy	Press-Fit	Through Hole	2	30 Áin	0.76 Ám	Dual	-40 C	105 ░C	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in
EDAC Inc. 746-112-540-206	Polyester Thermoplastic	2	112	56	Non Specified - Dual Edge	Black	Cantilever	Copper Alloy	Press-Fit Wire Wrap	Through Hole	2	30 Áin	0.76 Ám	Dual	-40 C	105 ░C	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in
EDAC Inc. 746-112-541-201	Polyester Thermoplastic	2	112	56	Non Specified - Dual Edge	Black	Cantilever	Copper Alloy	Press-Fit Wire Wrap	Through Hole	2	30 Áin	0.76 Ám	Dual	-40 C	105 ░C	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in
