750071 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

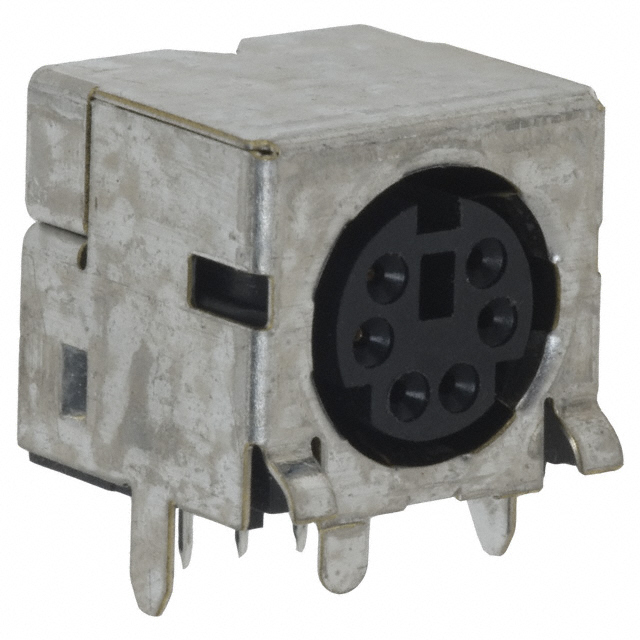

CONN RCPT FMALE MINI DIN 6P SLDR
| Part | Voltage Rating | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Mounting Type | Orientation | Primary Material | Connector Type | Applications | Shell Size - Insert | Termination | Contact Material | Shell Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Shielding | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 30 VDC | Gold | -55 C | 105 ░C | Push-Pull | Right Angle Through Hole | Keyed | Plastic | Receptacle Female Sockets | Audio Video | Mini DIN | Solder | Copper Alloy | Polyester | 0.76 Ám | 30 Áin | 6 | Shielded | UL94 V-0 |
