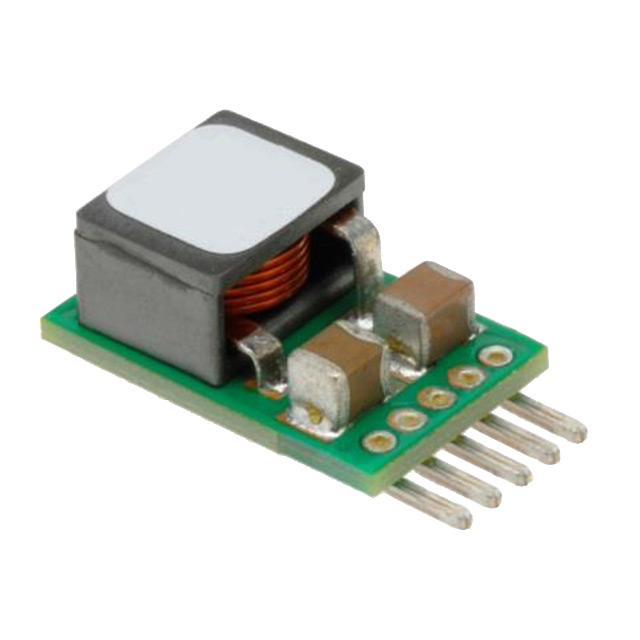

IND060 Series
Manufacturer: OmniOn Power™
Beta
⌘K
DC DC CONVERTER 0.59-5.5V 60W
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Applications | Supplier Device Package | Voltage - Input (Max) [Max] | Control Features | Efficiency | Power (Watts) | Package / Case | Mounting Type | Number of Outputs | Voltage - Input (Min) [Min] | Type | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Features | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | 10.4 mm | 0.33 " | 0.41 in | 8.4 mm | 16.5 mm | 0.65 in | ITE (Commercial) | 5-SIP | 14 V | Active High Enable | 95 % | 60 W | 5-SIP Module | Through Hole | 1 | 9.6 V | Non-Isolated PoL Module | 0.59 V | 5.5 V | OCP Remote On/Off | -40 °C | 85 °C | 10 A |
OmniOn Power™ | 10.4 mm | 0.33 " | 0.41 in | 8.4 mm | 16.5 mm | 0.65 in | ITE (Commercial) | 5-SIP | 14 V | Active High Enable | 95 % | 60 W | 5-SIP Module | Through Hole | 1 | 9.6 V | Non-Isolated PoL Module | 0.59 V | 5.5 V | OCP Remote On/Off | -40 °C | 85 °C | 10 A |
