PBC17 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 34POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Insulation Material	Number of Positions [custom]	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Termination	Fastening Type	Shrouding	Connector Type	Pitch - Mating	Pitch - Mating	Contact Type	Style	Number of Rows [custom]	Mounting Type	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Contact Shape	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Contact Material	Number of Rows	Insulation Height	Insulation Height	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions PBC17DBAN	100 in	2.54 m	10 in 10 µin	0.25 m 0.25 µm	-65 ░C	125 °C	Gold	Polybutylene Terephthalate (PBT)	34	6.1 mm	0.24 in	3 A	Tin	0.1 in	2.54 mm	Solder	Push-Pull	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Male Pin	Board to Board Cable	2	Right Angle Through Hole	All	0.1 in	2.54 mm	Black	Square	0.23 in	5.84 mm	UL94 V-0	Phosphor Bronze
Sullins Connector Solutions PBC17SFAN	100 µin	2.54 µm	10 µin	0.25 µm	-65 ░C	125 °C	Gold	Polybutylene Terephthalate (PBT)				3 A	Tin	0.12 in	3.05 mm	Solder	Push-Pull	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Male Pin	Board to Board Cable		Through Hole	All			Black	Square	0.318 in	8.08 mm	UL94 V-0	Phosphor Bronze	1	0.1 in	2.54 mm	13.67 mm	0.538 in

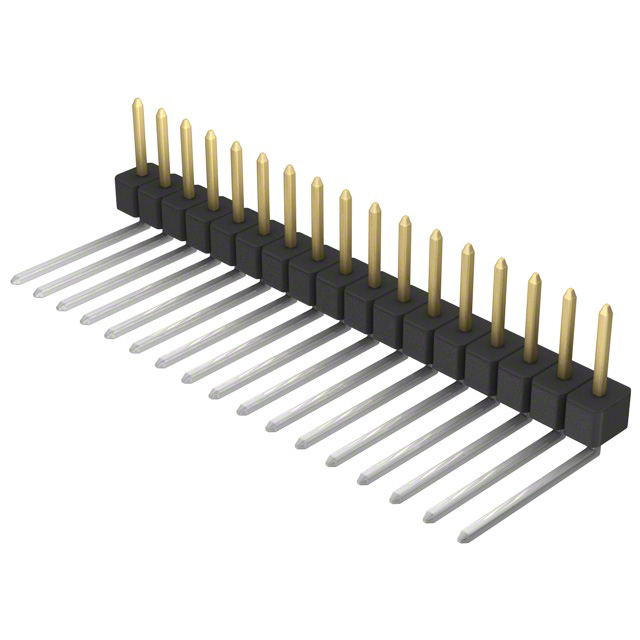

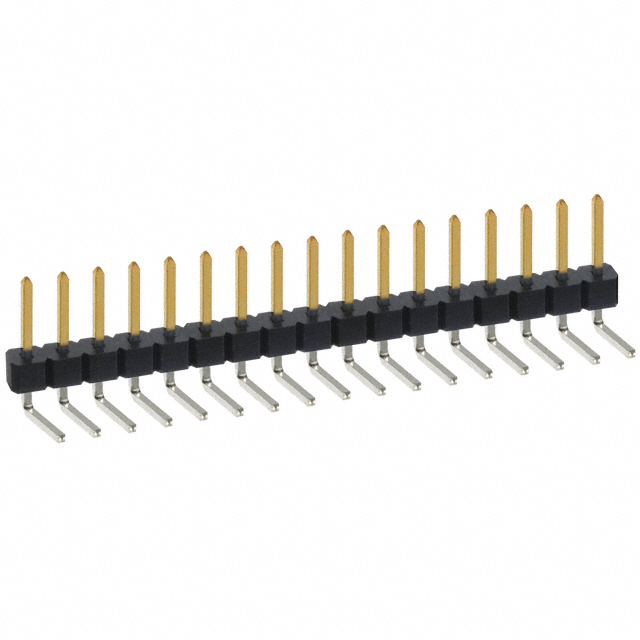

Sullins Connector Solutions PBC17SBDN	100 µin	2.54 µm	10 µin	0.25 µm	-65 ░C	125 °C	Gold	Polybutylene Terephthalate (PBT)				3 A	Tin	0.4 in	10.16 mm	Solder	Push-Pull	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Male Pin	Board to Board Cable		Right Angle Through Hole	All			Black	Square	0.23 in	5.84 mm	UL94 V-0	Phosphor Bronze	1	0.14 in	3.56 mm
Sullins Connector Solutions PBC17SACN	100 µin	2.54 µm	10 µin	0.25 µm	-65 ░C	125 °C	Gold	Polybutylene Terephthalate (PBT)				3 A	Tin	0.32 in	8.13 mm	Solder	Push-Pull	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Male Pin	Board to Board Cable		Through Hole	All			Black	Square	0.23 in	5.84 mm	UL94 V-0	Phosphor Bronze	1	0.1 in	2.54 mm			16.51 mm	0.65 in
Sullins Connector Solutions PBC17DFAN	100 µin	2.54 µm	10 µin	0.25 µm	-65 ░C	125 °C	Gold	Polybutylene Terephthalate (PBT)	34			3 A	Tin	0.12 in	3.05 mm	Solder	Push-Pull	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Male Pin	Board to Board Cable	2	Through Hole	All	0.1 in	2.54 mm	Black	Square	0.318 in	8.08 mm	UL94 V-0	Phosphor Bronze		0.1 in	2.54 mm	13.67 mm	0.538 in
Sullins Connector Solutions PBC17DFDN	100 µin	2.54 µm	10 µin	0.25 µm	-65 ░C	125 °C	Gold	Polybutylene Terephthalate (PBT)	34			3 A	Tin	0.42 in	10.67 mm	Solder	Push-Pull	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Male Pin	Board to Board Cable	2	Through Hole	All	0.1 in	2.54 mm	Black	Square	0.318 in	8.08 mm	UL94 V-0	Phosphor Bronze		0.1 in	2.54 mm			21.29 mm	0.838 in
Sullins Connector Solutions PBC17DFCN	100 µin	2.54 µm	10 µin	0.25 µm	-65 ░C	125 °C	Gold	Polybutylene Terephthalate (PBT)	34			3 A	Tin	0.32 in	8.13 mm	Solder	Push-Pull	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Male Pin	Board to Board Cable	2	Through Hole	All	0.1 in	2.54 mm	Black	Square	0.318 in	8.08 mm	UL94 V-0	Phosphor Bronze		0.1 in	2.54 mm			18.75 mm		0.738 in
Sullins Connector Solutions PBC17SAHN	100 µin	2.54 µm	10 µin	0.25 µm	-65 ░C	125 °C	Gold	Polybutylene Terephthalate (PBT)				3 A	Tin	0.82 in	20.83 mm	Solder	Push-Pull	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Male Pin	Board to Board Cable		Through Hole	All			Black	Square	0.23 in	5.84 mm	UL94 V-0	Phosphor Bronze	1	0.1 in	2.54 mm			29.21 mm	1.15 in
Sullins Connector Solutions PBC17SBCN	100 µin	2.54 µm	10 µin	0.25 µm	-65 ░C	125 °C	Gold	Polybutylene Terephthalate (PBT)				3 A	Tin	0.3 in	7.62 mm	Solder	Push-Pull	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Male Pin	Board to Board Cable		Right Angle Through Hole	All			Black	Square	0.23 in	5.84 mm	UL94 V-0	Phosphor Bronze	1	0.14 in	3.56 mm

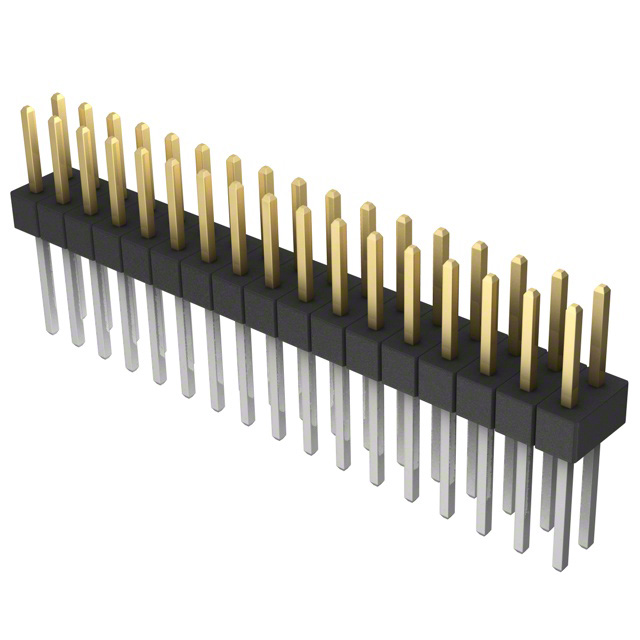

Sullins Connector Solutions PBC17DAAN	100 µin	2.54 µm	10 µin	0.25 µm	-65 ░C	125 °C	Gold	Polybutylene Terephthalate (PBT)	34			3 A	Tin	0.12 in	3.05 mm	Solder	Push-Pull	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Male Pin	Board to Board Cable	2	Through Hole	All	0.1 in	2.54 mm	Black	Square	0.23 in	5.84 mm	UL94 V-0	Phosphor Bronze		0.1 in	2.54 mm	11.43 mm	0.45 in
