Q5-2X-1 Series

Manufacturer: Qualtek

Catalog

HEATSHRINK 1" X 4' BLACK 1=1PC

Part	Color	Length [x]	Length [x]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Features	Shrink Temperature	Recovered Wall Thickness	Recovered Wall Thickness	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Material	Shelf Life	Length	Length	Length

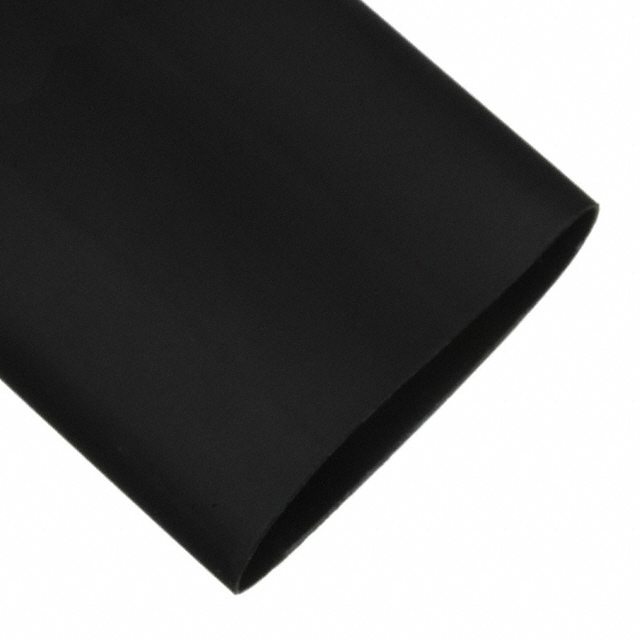

Qualtek Q5-2X-1-01-QB48IN-5	Black	4 ft	1.22 m	25.4 mm	1 in	1	2	-45 °C	125 °C	40 °C	14 °F	-50 °F	40 °C	Adhesive Lined Self Extinguishing	100 °C	1.09 mm	0.043 in	Tubing Flexible	12.7 mm	0.5 "	Polyolefin (PO)	60 Months
Qualtek Q5-2X-1 1/2-01-QB6IN-5	Black			38.1 mm	1.5 in	1	2	-45 °C	125 °C	40 °C	14 °F	-50 °F	40 °C	Adhesive Lined Self Extinguishing	100 °C	1.09 mm	0.043 in	Tubing Flexible	19.05 mm	0.75 "	Polyolefin (PO)	60 Months	152.4 mm	0.5 '	6 "

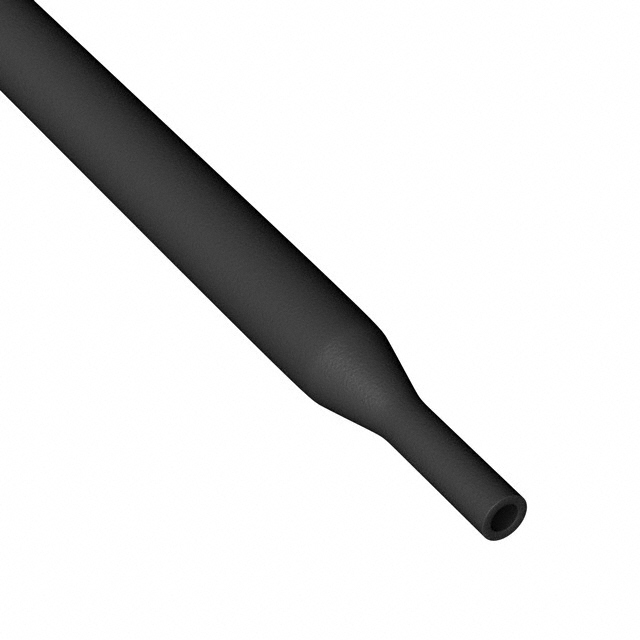

Qualtek Q5-2X-1-01-SS25M	Black			25.4 mm	1 in	1	2	-45 °C	125 °C	40 °C	14 °F	-50 °F	40 °C	Adhesive Lined Self Extinguishing	100 °C	1.09 mm	0.043 in	Tubing Flexible	12.7 mm	0.5 "	Polyolefin (PO)	60 Months	25 m	82 ft

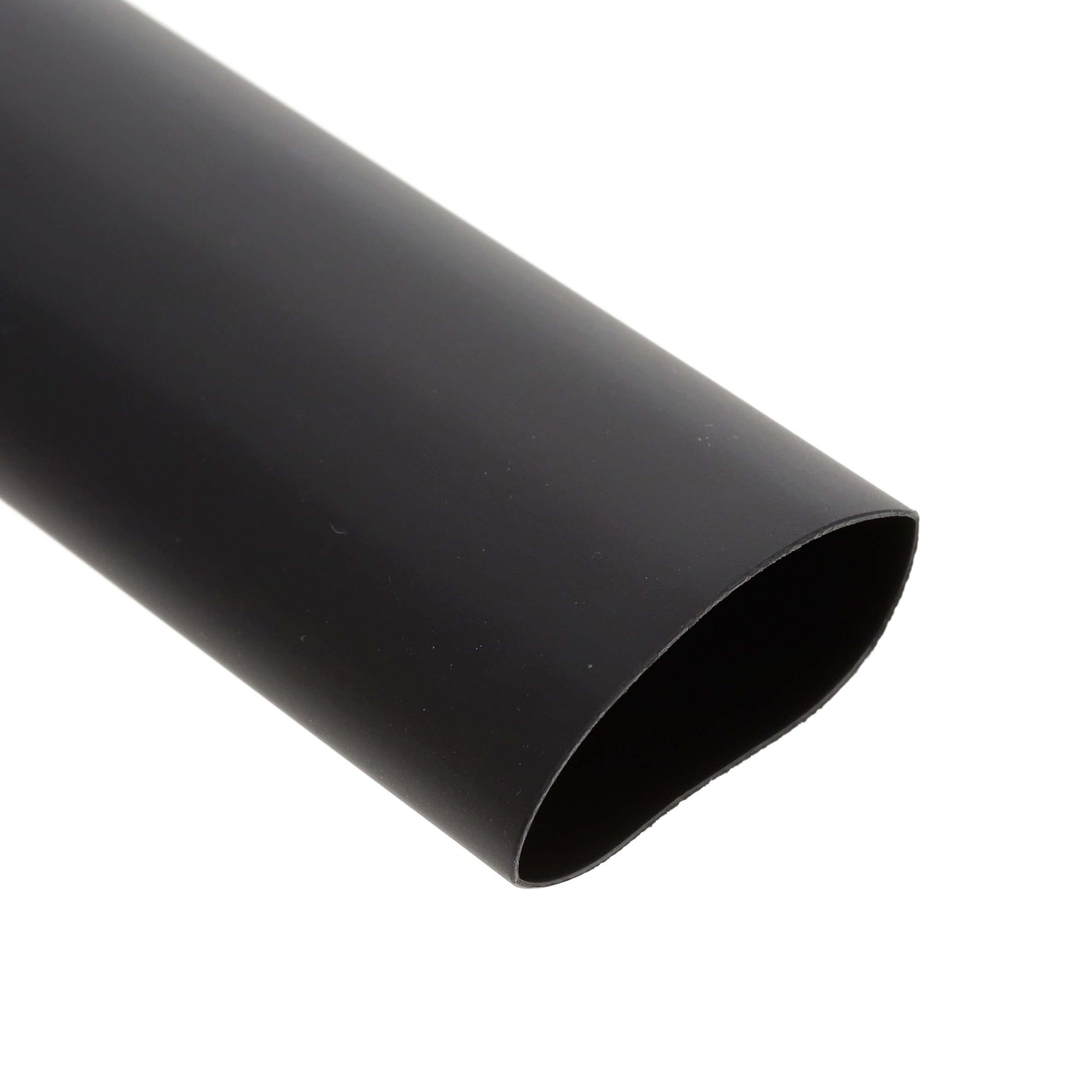

Qualtek Q5-2X-1-01-QB6IN-8	Black			25.4 mm	1 in	1	2	-45 °C	125 °C	40 °C	14 °F	-50 °F	40 °C	Adhesive Lined Self Extinguishing	100 °C	1.09 mm	0.043 in	Tubing Flexible	12.7 mm	0.5 "	Polyolefin (PO)	60 Months	152.4 mm	0.5 '	6 "

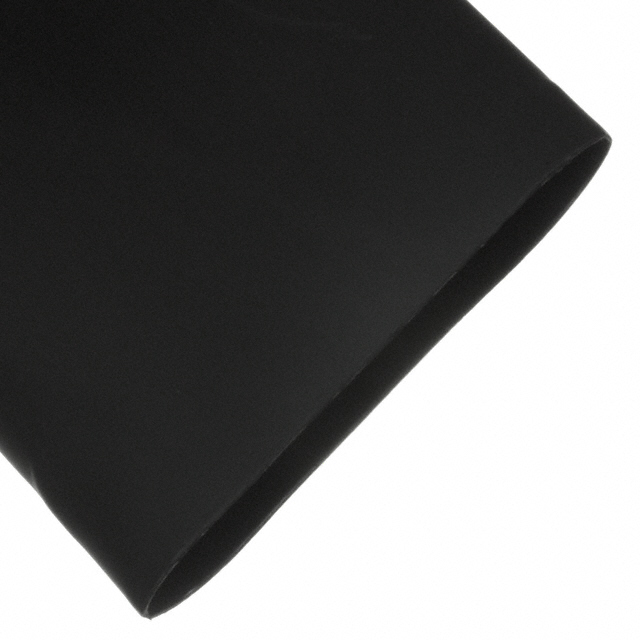

Qualtek Q5-2X-1 1/2-01-QB48IN-5	Black	4 ft	1.22 m	38.1 mm	1.5 in	1	2	-45 °C	125 °C	40 °C	14 °F	-50 °F	40 °C	Adhesive Lined Self Extinguishing	100 °C	1.09 mm	0.043 in	Tubing Flexible	19.05 mm	0.75 "	Polyolefin (PO)	60 Months

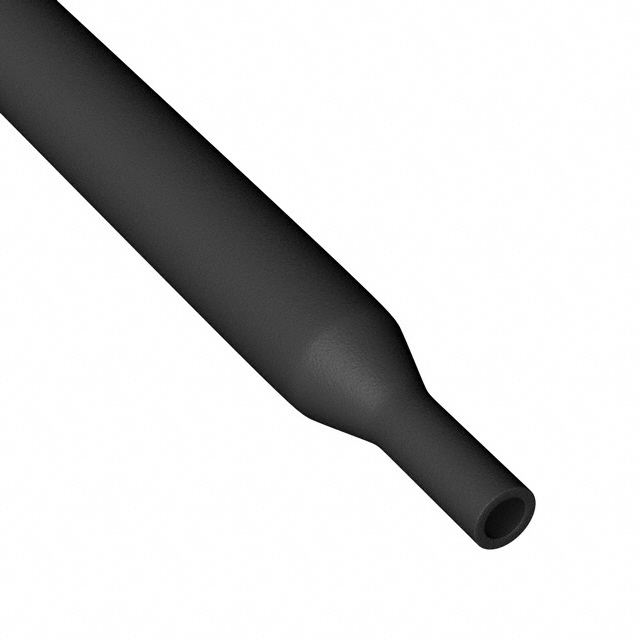

Qualtek Q5-2X-1 1/2-01-SS25M	Black			38.1 mm	1.5 in	1	2	-45 °C	125 °C	40 °C	14 °F	-50 °F	40 °C	Adhesive Lined Self Extinguishing	100 °C	1.09 mm	0.043 in	Tubing Flexible	19.05 mm	0.75 "	Polyolefin (PO)	60 Months	25 m	82 ft
