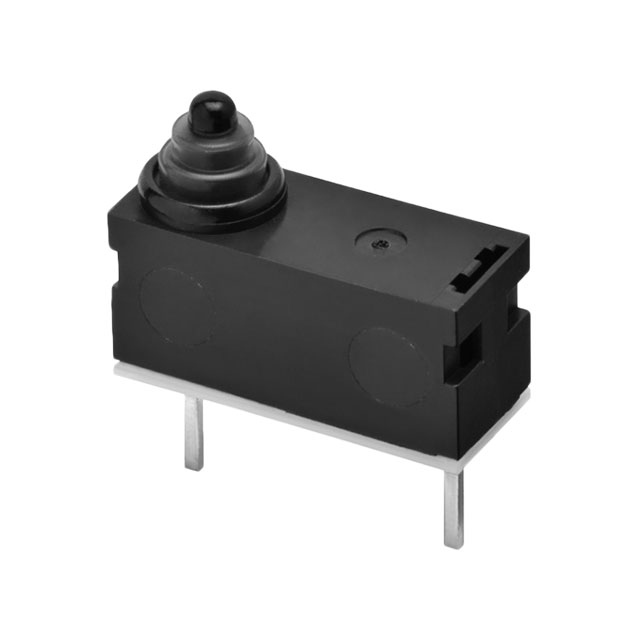

D2AW Series

Catalog

MICROSWITCH SNAP ACTION; 0.1A/12VDC; WITHOUT LEVER; SPST-NC

Part	Actuator Type	Overtravel [custom]	Overtravel [custom]	Termination Style	Switch Function	Operating Force	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Operating Position	Operating Position	Voltage Rating - DC	Mechanical Life	Differential Travel [x]	Differential Travel [x]	Current Rating (Amps)	Ingress Protection	Mounting Type	Electrical Life	Release Force	Features
Omron Electronics Inc-EMC Div D2AW-A002D R	Round (Pin Plunger)	1.4 mm	0.055 "	PC Pin	On-Mom	101 gf	SPST-NC	85 °C	-40 C	6.4 mm	0.25 in	12 V	200000 Cycles	0.01 in	0.25 mm	100 mA	IP67 - Dust Tight Waterproof	Through Hole	200000 Cycles	10 gf
Omron Electronics Inc-EMC Div D2AW-EL003D R	Round (Pin Plunger)	1.4 mm	0.055 "	PC Pin	Off-Mom	101 gf	SPST-NO	85 °C	-40 C	10.4 mm	0.409 in	12 V	200000 Cycles	0.01 in	0.25 mm	100 mA	IP67 - Dust Tight Waterproof	Through Hole	200000 Cycles	10 gf	Support Posts
Omron Electronics Inc-EMC Div D2AW-EL082H R
Omron Electronics Inc-EMC Div D2AW-EL003H R
Omron Electronics Inc-EMC Div D2AW-A003D R	Round (Pin Plunger)	1.4 mm	0.055 "	PC Pin	Off-Mom	101 gf	SPST-NO	85 °C	-40 C	6.4 mm	0.25 in	12 V	200000 Cycles	0.01 in	0.25 mm	100 mA	IP67 - Dust Tight Waterproof	Through Hole	200000 Cycles	10 gf
Omron Electronics Inc-EMC Div D2AW-ER072H R
Omron Electronics Inc-EMC Div D2AW-ER062D R
Omron Electronics Inc-EMC Div D2AW-A072H R
Omron Electronics Inc-EMC Div D2AW-EL063H R
Omron Electronics Inc-EMC Div D2AW-EL082D R
