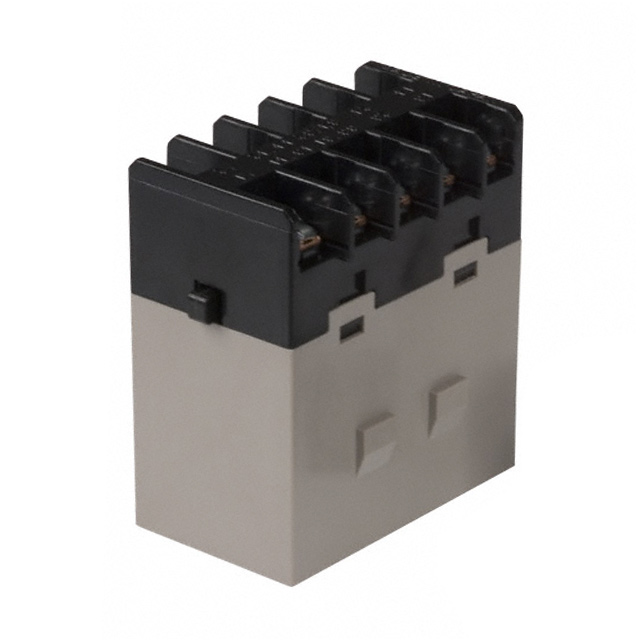

G7J-3A Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

RELAY GEN PURPOSE 4PST 25A 12V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Switching Voltage	Termination Style	Must Release Voltage	Relay Type	Mounting Type	Coil Type	Must Operate Voltage	Coil Current	Approval Agency	Release Time	Coil Resistance	Features	Coil Voltage	Operate Time	Load - Max Switching	Contact Form
Omron Electronics Inc-EMC Div G7J-3A1B-B DC12	-25 °C	60 °C	25 A	125 VDC 250 VAC	Screw Terminal	1.2 VDC	General Purpose	Chassis Mount	Non Latching	9 VDC	167 mA	CE CSA UR	50 ms	72 Ohms	Test Button	12 VDC	50 ms	3125 W 6250 VA	4PST-3NO/1NC (3 Form A 1 Form B)
Omron Electronics Inc-EMC Div G7J-3A1B-B DC24	-25 °C	60 °C	25 A	125 VDC 250 VAC	Screw Terminal	2.4 VDC	General Purpose	Chassis Mount	Non Latching	18 VDC	83 mA	CE CSA UR	50 ms	288 Ohms	Test Button	24 VDC	50 ms	3125 W 6250 VA	4PST-3NO/1NC (3 Form A 1 Form B)

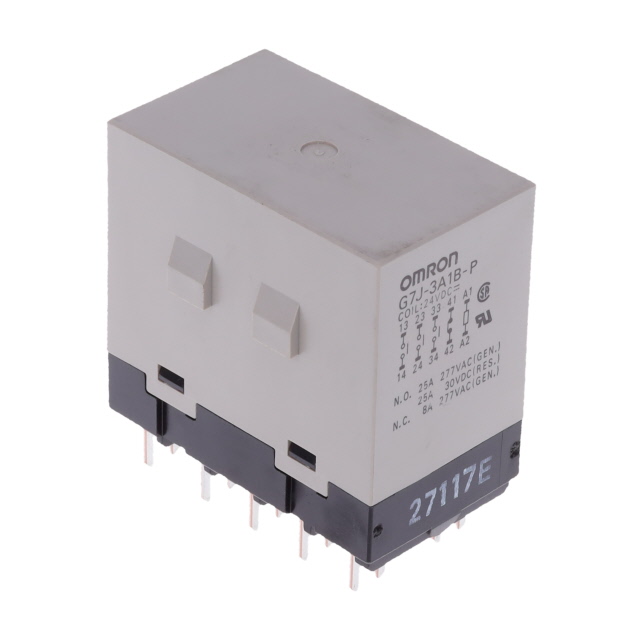

Omron Electronics Inc-EMC Div G7J-3A1B-P DC24	-25 °C	60 °C	25 A	125 VDC 250 VAC	PC Pin	2.4 VDC	General Purpose	Through Hole	Non Latching	18 VDC	83 mA	CE CSA UR	50 ms	288 Ohms	Test Button	24 VDC	50 ms	3125 W 6250 VA	4PST-3NO/1NC (3 Form A 1 Form B)

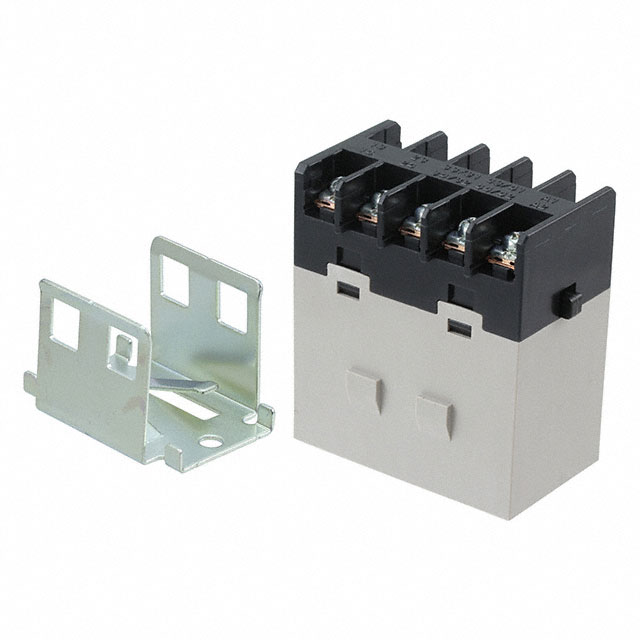

Omron Electronics Inc-EMC Div G7J-3A1B-B-W1 DC12	-25 °C	60 °C	25 A	125 VDC 250 VAC	Screw Terminal	1.2 VDC	General Purpose	Chassis Mount	Non Latching	9 VDC	167 mA	CE CSA UR	50 ms	72 Ohms	Bracket Included Test Button	12 VDC	50 ms	3125 W 6250 VA	4PST-3NO/1NC (3 Form A 1 Form B)
Omron Electronics Inc-EMC Div G7J-3A1B-BZ DC12	-25 °C	60 °C	25 A	125 VDC 250 VAC	Screw Terminal	1.2 VDC	General Purpose	Chassis Mount	Non Latching	9 VDC	167 mA	CE CSA UR	50 ms	72 Ohms	Test Button	12 VDC	50 ms	3125 W 6250 VA	4PST-3NO/1NC (3 Form A 1 Form B)
Omron Electronics Inc-EMC Div G7J-3A1B-BZ DC24	-25 °C	60 °C	25 A	125 VDC 250 VAC	Screw Terminal	2.4 VDC	General Purpose	Chassis Mount	Non Latching	18 VDC	83 mA	CE CSA UR	50 ms	288 Ohms	Test Button	24 VDC	50 ms	3125 W 6250 VA	4PST-3NO/1NC (3 Form A 1 Form B)
Omron Electronics Inc-EMC Div G7J-3A1B-P AC50	-25 °C	60 °C	25 A	125 VDC 250 VAC	PC Pin	7.5 VAC	General Purpose	Through Hole	Non Latching	37.5 VAC	36 mA	CE CSA UR	50 ms	1.38 kOhms	Test Button	50 VAC	50 ms	3125 W 6250 VA	4PST-3NO/1NC (3 Form A 1 Form B)

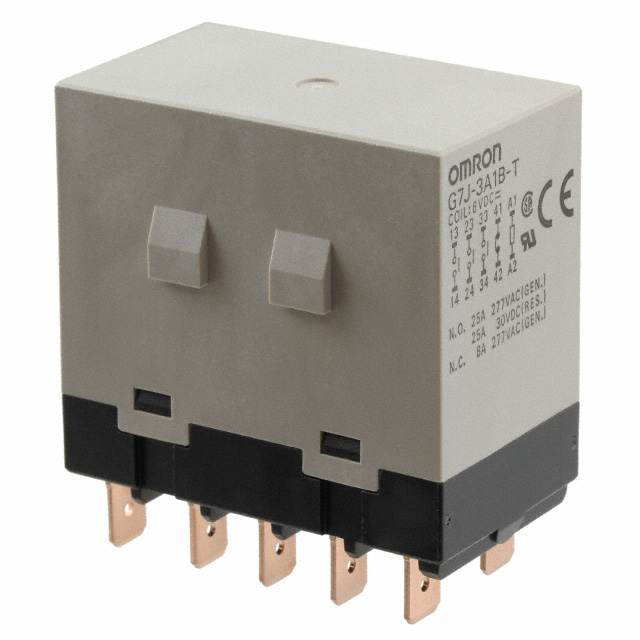

Omron Electronics Inc-EMC Div G7J-3A1B-T AC50	-25 °C	60 °C	25 A	125 VDC 250 VAC	Quick Connect - 0.250" (6.3mm)	7.5 VAC	General Purpose	Chassis Mount	Non Latching	37.5 VAC	36 mA	CE CSA UR	50 ms	1.38 kOhms	Test Button	50 VAC	50 ms	3125 W 6250 VA	4PST-3NO/1NC (3 Form A 1 Form B)
Omron Electronics Inc-EMC Div G7J-3A1B-B DC48	-25 °C	60 °C	25 A	125 VDC 250 VAC	Screw Terminal	4.8 VDC	General Purpose	Chassis Mount	Non Latching	36 VDC	42 mA	CE CSA UR	50 ms	1.15 kOhms	Test Button	48 VDC	50 ms	3125 W 6250 VA	4PST-3NO/1NC (3 Form A 1 Form B)
Omron Electronics Inc-EMC Div G7J-3A1B-B-W1 AC200/240	-25 °C	60 °C	25 A	125 VDC 250 VAC	Screw Terminal	36 VAC	General Purpose	Chassis Mount	Non Latching	150 VAC	10.8 mA	CE CSA UR	50 ms	22.22 kOhms	Bracket Included Test Button	240 VAC	50 ms	3125 W 6250 VA	4PST-3NO/1NC (3 Form A 1 Form B)
