ED590 Series

Catalog

TERM BLOCK 8POS 45DEG 5MM PCB

Part	Contact Material - Plating	Clamp Material - Plating [custom]	Torque - Screw	Torque - Screw	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Screw Thread	Mating Orientation	Mating Orientation	Wire Gauge [Min]	Wire Gauge [Max]	Number of Levels	Current	Color	Mounting Type	Pitch	Pitch	Voltage	Positions Per Level	Wire Termination	Features	Positions Per Level [custom]
On Shore Technology Inc. ED590/8-DS	Brass	Stainless Steel	3.5 Lb-In	0.4 Nm	-30 ░C	105 ░C	Polyamide (PA) Nylon	M2.6	135 °	45 °	14 AWG	22 AWG	1	15 A	Blue	Through Hole	0.197 in	5 mm	300 VDC	8	Screw - Leaf Spring Wire Guard	Interlocking (Side)
On Shore Technology Inc. ED590/6-DS	Brass	Stainless Steel	3.5 Lb-In	0.4 Nm	-30 ░C	105 ░C	Polyamide (PA) Nylon	M2.6	135 °	45 °	14 AWG	22 AWG	1	15 A	Blue	Through Hole	0.197 in	5 mm	300 VDC	6	Screw - Leaf Spring Wire Guard	Interlocking (Side)
On Shore Technology Inc. ED590/11-DS	Brass	Stainless Steel	3.5 Lb-In	0.4 Nm	-30 ░C	105 ░C	Polyamide (PA) Nylon	M2.6	135 °	45 °	14 AWG	22 AWG	1	15 A	Blue	Through Hole	0.197 in	5 mm	300 VDC	11	Screw - Leaf Spring Wire Guard	Interlocking (Side)

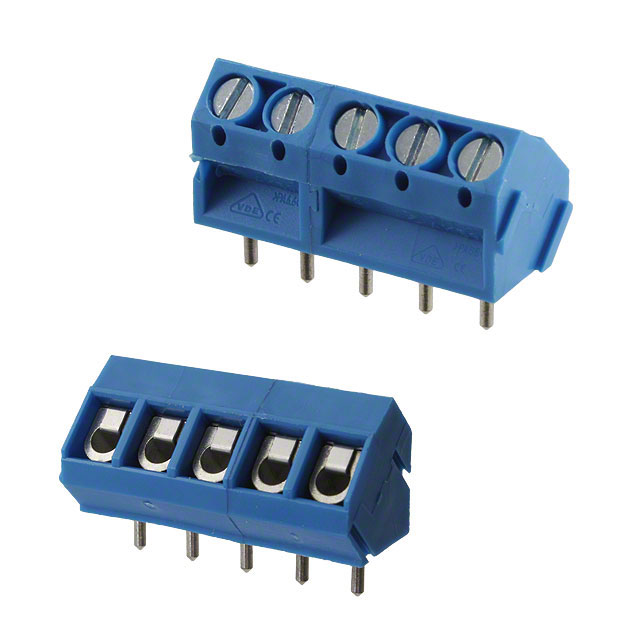

On Shore Technology Inc. ED590/5-DS	Brass	Stainless Steel	3.5 Lb-In	0.4 Nm	-30 ░C	105 ░C	Polyamide (PA) Nylon	M2.6	135 °	45 °	14 AWG	22 AWG	1	15 A	Blue	Through Hole	0.197 in	5 mm	300 VDC	5	Screw - Leaf Spring Wire Guard	Interlocking (Side)
On Shore Technology Inc. ED590/2-DS	Brass	Stainless Steel	3.5 Lb-In	0.4 Nm	-30 ░C	105 ░C	Polyamide (PA) Nylon	M2.6	135 °	45 °	14 AWG	22 AWG	1	15 A	Blue	Through Hole	0.197 in	5 mm	300 VDC	2	Screw - Leaf Spring Wire Guard	Interlocking (Side)
On Shore Technology Inc. ED590/9-DS	Brass	Stainless Steel	3.5 Lb-In	0.4 Nm	-30 ░C	105 ░C	Polyamide (PA) Nylon	M2.6	135 °	45 °	14 AWG	22 AWG	1	15 A	Blue	Through Hole	0.197 in	5 mm	300 VDC	9	Screw - Leaf Spring Wire Guard	Interlocking (Side)
On Shore Technology Inc. ED590/10-DS	Brass	Stainless Steel	3.5 Lb-In	0.4 Nm	-30 ░C	105 ░C	Polyamide (PA) Nylon	M2.6	135 °	45 °	14 AWG	22 AWG	1	15 A	Blue	Through Hole	0.197 in	5 mm	300 VDC	10	Screw - Leaf Spring Wire Guard	Interlocking (Side)
On Shore Technology Inc. ED590/7-DS	Brass	Stainless Steel	3.5 Lb-In	0.4 Nm	-30 ░C	105 ░C	Polyamide (PA) Nylon	M2.6	135 °	45 °	14 AWG	22 AWG	1	15 A	Blue	Through Hole	0.197 in	5 mm	300 VDC		Screw - Leaf Spring Wire Guard	Interlocking (Side)	7
On Shore Technology Inc. ED590/4-DS	Brass	Stainless Steel	3.5 Lb-In	0.4 Nm	-30 ░C	105 ░C	Polyamide (PA) Nylon	M2.6	135 °	45 °	14 AWG	22 AWG	1	15 A	Blue	Through Hole	0.197 in	5 mm	300 VDC	4	Screw - Leaf Spring Wire Guard	Interlocking (Side)
On Shore Technology Inc. ED590/3-DS	Brass	Stainless Steel	3.5 Lb-In	0.4 Nm	-30 ░C	105 ░C	Polyamide (PA) Nylon	M2.6	135 °	45 °	14 AWG	22 AWG	1	15 A	Blue	Through Hole	0.197 in	5 mm	300 VDC	3	Screw - Leaf Spring Wire Guard	Interlocking (Side)
