6463 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

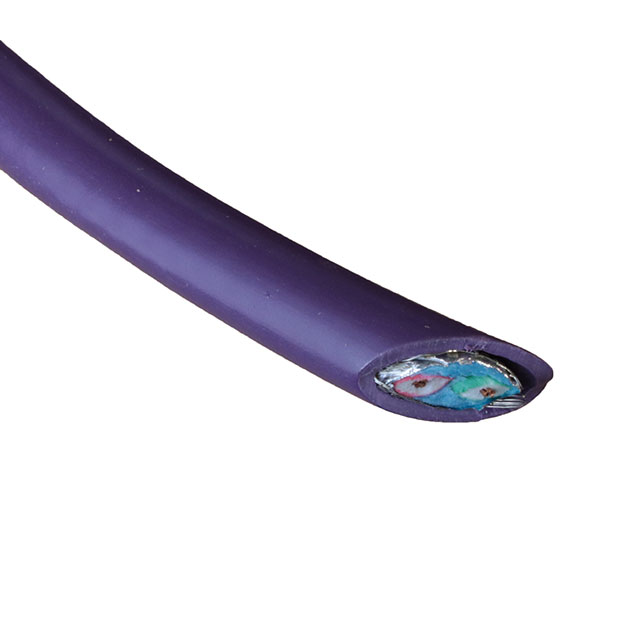

CABLE 2COND 22AWG VIO SHLD 500'
| Part | Shield Material | Shield Coverage | Conductor Insulation | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Jacket Color | Shield Type | Jacket (Insulation) Material | Length | Length | Cable Type | Features | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | High Density Polyethylene (HDPE) | 2 | 0.042 in | 1.067 mm | 22 AWG | Violet | Braid Foil | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Multi-Conductor | Drain Wire Rip Cord | 300 VDC | 30 AWG | 7 | Copper Tinned | 75 ░C | -30 ░C | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | High Density Polyethylene (HDPE) | 2 | 0.042 in | 1.067 mm | 22 AWG | Violet | Braid Foil | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Multi-Conductor | Drain Wire Rip Cord | 300 VDC | 30 AWG | 7 | Copper Tinned | 75 ░C | -30 ░C | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | High Density Polyethylene (HDPE) | 2 | 0.042 in | 1.067 mm | 22 AWG | Violet | Braid Foil | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Drain Wire Rip Cord | 300 VDC | 30 AWG | 7 | Copper Tinned | 75 ░C | -30 ░C | 100 ft | 30.5 m |
