207599 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

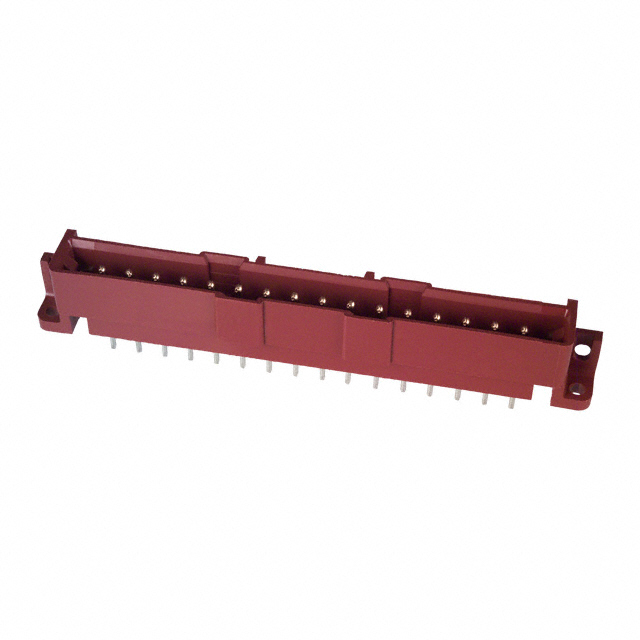

CONN HEADER VERT 16POS 5MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Material | Connector Type | Pitch - Mating | Pitch - Mating | Voltage Rating | Number of Rows | Contact Type | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Post | Insulation Material | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Shrouding | Style | Contact Shape | Applications | Mounting Type | Features | Insulation Color | Termination | Current Rating (Amps) | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 150 Áin | 3.81 Ám | 0.689 in | 17.5 mm | All | Brass | Header | 5 mm | 0.197 " | 600 V | 1 | Male Pin | Latch Holder | 130 °C | -55 °C | Tin-Lead | Nylon Polyamide (PA) | 16 | 150 Áin | 3.81 Ám | UL94 V-0 | Shrouded - 4 Wall | Board to Board Cable | Circular | Automotive General Purpose Industrial | Through Hole | Mounting Flange | Black Red | Solder | 7.5 A | Tin-Lead |
 TE Connectivity Raychem Cable Protection | 150 Áin | 3.81 Ám | 0.689 in | 17.5 mm | All | Brass | Header | 5 mm | 0.197 " | 600 V | 1 | Male Pin | Latch Holder | 130 °C | -55 °C | Tin-Lead | Nylon Polyamide (PA) | 16 | 30 Áin | 0.76 Ám | UL94 V-0 | Shrouded - 4 Wall | Board to Board Cable | Circular | Automotive General Purpose Industrial | Through Hole | Mounting Flange | Black Red | Solder | 7.5 A | Gold |
TE Connectivity Raychem Cable Protection | 150 Áin | 3.81 Ám | 0.689 in | 17.5 mm | All | Brass | Header | 5 mm | 0.197 " | 600 V | 1 | Male Pin | Latch Holder | 130 °C | -55 °C | Tin | Nylon Polyamide (PA) | 16 | 150 Áin | 3.81 Ám | UL94 V-0 | Shrouded - 4 Wall | Board to Board Cable | Circular | Automotive General Purpose Industrial | Through Hole | Mounting Flange | Black Red | Solder | 7.5 A |
