FI-RE21S Series

Catalog

CONN RCPT 21POS 0.02 GOLD SMD

Part	Insulation Material	Contact Material	Applications	Mated Stacking Heights	Number of Positions Loaded	Connector Type	Style	Contact Finish - Mating	Features	Mounting Type	Contact Type	Fastening Type	Termination	Contact Finish - Post	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Rows	Number of Positions	Insulation Height	Insulation Height	Insulation Height
JAE Electronics FI-RE21S-VF-R1300	Plastic	Copper Alloy	General Purpose Medical	10.1 mm 16.1 mm	All	Receptacle	Board to Cable/Wire	Gold	Shielded Solder Retention	Surface Mount	Female Blade Socket	Latch Holder	Solder	Tin	0.8 A	80 °C	-40 C	0.5 mm	0.02 in	UL94 V-0	1	21	4.65 mm	0.183 in

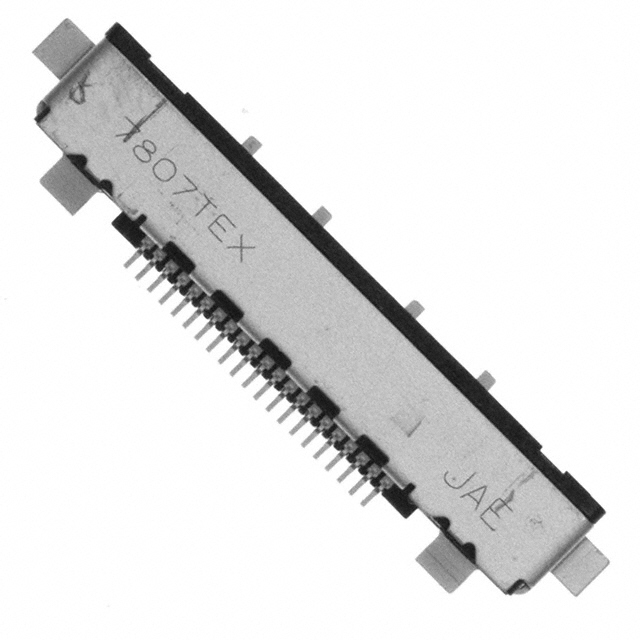

JAE Electronics FI-RE21S-HF-R1500	Plastic	Copper Alloy	General Purpose Medical		All	Receptacle	Board to Cable/Wire	Gold	Shielded Solder Retention	Right Angle Surface Mount	Female Blade Socket	Latch Holder	Solder	Tin	0.8 A	80 °C	-40 C	0.5 mm	0.02 in	UL94 V-0	1	21	0.148 in		3.75 mm

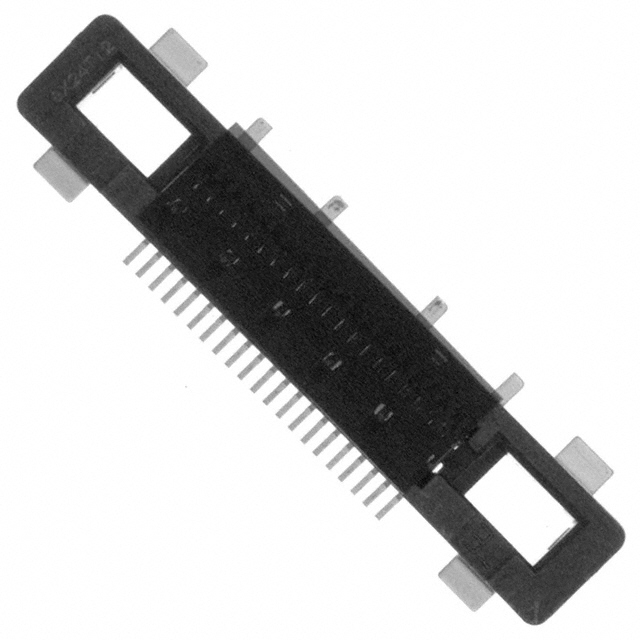

JAE Electronics FI-RE21S-VF	Plastic	Copper Alloy	General Purpose Medical	10.1 mm 16.1 mm	All	Receptacle	Board to Cable/Wire	Gold	Shielded Solder Retention	Surface Mount	Female Blade Socket	Latch Holder	Solder	Tin	0.8 A	80 °C	-40 C	0.5 mm	0.02 in	UL94 V-0	1	21	4.65 mm	0.183 in
