PFB0512 Series

Catalog

DC AXIAL FAN, 12 V, SQUARE, 50 MM, 32 MM, BALL BEARING, 31.55 CFM

Part	Lifetime @ Temp.	Current Rating (Amps)	Material - Blade	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Static Pressure	Static Pressure	Air Flow	Air Flow	Fan Type	Voltage - Rated	Approval Agency	Termination	Noise	Operating Temperature [Max]	Operating Temperature [Min]	Features	Power (Watts)	RPM	Width [y]	Bearing Type	Weight	Weight	Size / Dimension [x]	Size / Dimension [z]

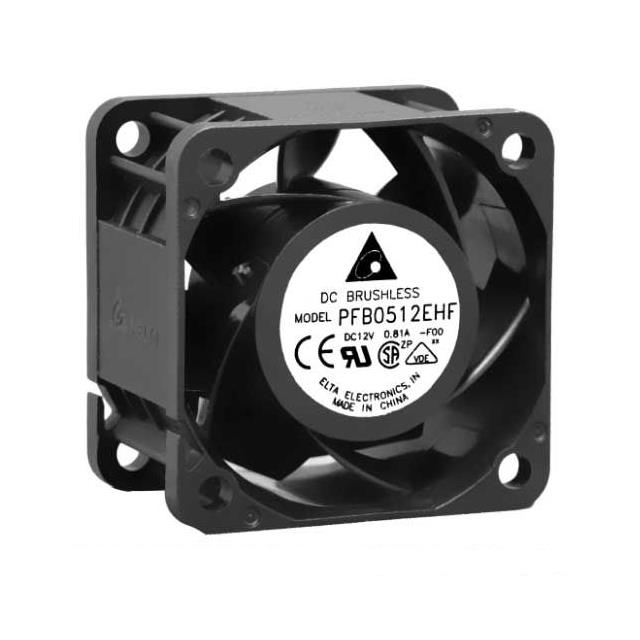

Delta Electronics PFB0512EHF-R00	70000 Hrs	0.54 A	Plastic	Plastic	7 V	13.2 VDC	261.8 Pa	1.051 in H2O	0.885 m³/min	31.6 CFM	Tubeaxial	12 VDC	CE CSA UL VDE	3 Wire Leads	51.2 dB(A)	70 °C	-10 °C	Locked Rotor Sensor	6.48 W	10000 RPM	32 mm	Ball	0.128 lb	58.06 g	50 mm	50 mm

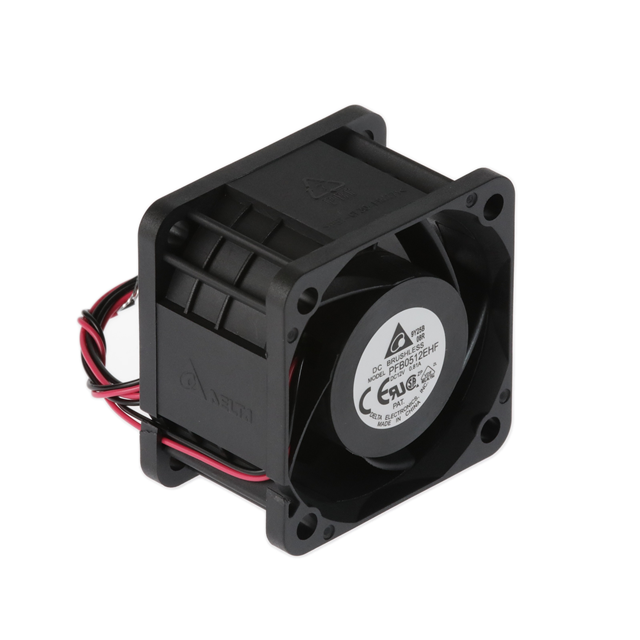

Delta Electronics PFB0512EHF	70000 Hrs	0.54 A	Plastic	Plastic	5 VDC	13.2 VDC	261.8 Pa	1.051 in H2O	0.885 m³/min	31.6 CFM	Tubeaxial	12 VDC	CE CSA UL VDE	2 Wire Leads	51.2 dB(A)	70 °C	-10 °C		6.48 W	10000 RPM	32 mm	Ball	0.128 lb	58.06 g	50 mm	50 mm
