ERZ-E08 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

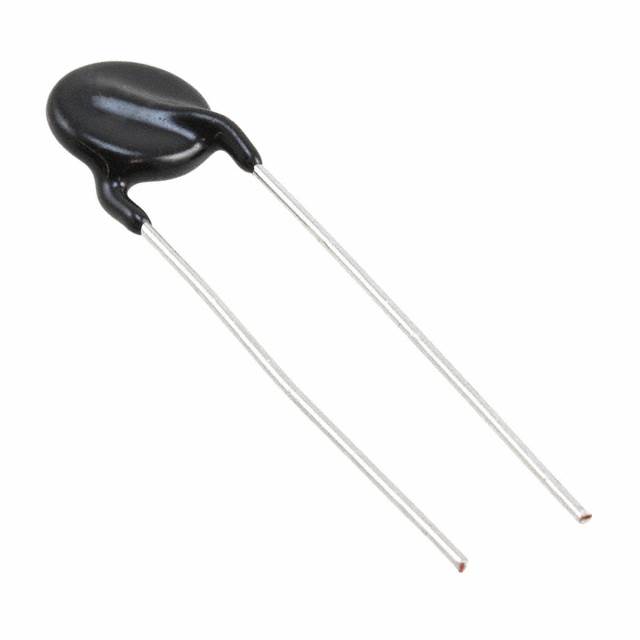

VARISTOR 360V 3.5KA DISC 10.5MM

Part	Number of Circuits	Varistor Voltage (Typ)	Capacitance @ Frequency	Maximum DC Volts [Max]	Mounting Type	Varistor Voltage (Min) [Min]	Package / Case	Package / Case	Varistor Voltage (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Surge	Maximum AC Volts [Max]	Energy	Maximum AC Volts
Panasonic Industrial Automation Sales ERZ-E08E361	1	360 V	280 pF	300 V	Through Hole	324 V	Disc	10.5 mm	396 V	85 °C	-40 °C	3.5 kA	230 V
Panasonic Industrial Automation Sales ERZ-E08E221	1	220 V	380 pF	180 V	Through Hole	198 V	Disc	10.5 mm	242 V	85 °C	-40 °C	3.5 kA	140 V	39 J
Panasonic Industrial Automation Sales ERZ-E08F471	1	470 V	180 pF	385 V	Through Hole	423 V	Disc	10.5 mm	517 V	85 °C	-40 °C	3.5 kA		85 J	300 V
Panasonic Industrial Automation Sales ERZ-E08B241CS	1	240 V	360 pF	200 V	Through Hole	216 V	Disc	10.5 mm	264 V	85 °C	-40 °C	3.5 kA	150 V	42 J
Panasonic Industrial Automation Sales ERZ-E08A271	1	270 V	330 pF	225 V	Through Hole	247 V	Disc	10.5 mm	303 V	85 °C	-40 °C	3.5 kA	175 V	49 J
Panasonic Industrial Automation Sales ERZ-E08A221CS	1	220 V	380 pF	180 V	Through Hole	198 V	Disc	10.5 mm	242 V	85 °C	-40 °C	3.5 kA	140 V	39 J
Panasonic Industrial Automation Sales ERZ-E08B331CS	1	330 V	300 pF	270 V	Through Hole	297 V	Disc	10.5 mm	363 V	85 °C	-40 °C	3.5 kA		58 J
Panasonic Industrial Automation Sales ERZ-E08A241	1	240 V	360 pF	200 V	Through Hole	216 V	Disc	10.5 mm	264 V	85 °C	-40 °C	3.5 kA	150 V	42 J
Panasonic Industrial Automation Sales ERZ-E08E271	1	270 V	330 pF	225 V	Through Hole	247 V	Disc	10.5 mm	303 V	85 °C	-40 °C	3.5 kA	175 V	49 J
Panasonic Industrial Automation Sales ERZ-E08A241CS	1	240 V	360 pF	200 V	Through Hole	216 V	Disc	10.5 mm	264 V	85 °C	-40 °C	3.5 kA	150 V	42 J
