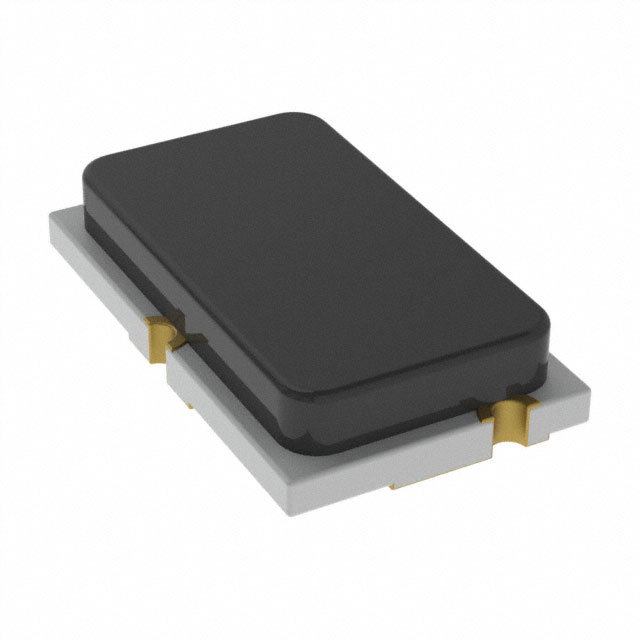

FC-5432 Series

Catalog

SMD FUSE RATED CURRENT 12A/35VDC

Part	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Fuse Type	Package / Case	Features	Features [Max]	Features [Min]	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Approval Agency	Response Time	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]
Delta Electronics/Cyntec FC-5432-12A-C4-C	50 A	12 Amps	Board Mount	Nonstandard SMD	Triggerable	19.5 V	10.5 V	Battery Protection	Surface Mount	65 °C	-10 °C	35 V	TUV UL	Fast Blow	3.2 mm	0.126 in	0.213 in	1.15 mm	0.045 "	5.4 mm
Delta Electronics/Cyntec FC-5432-15A-C3-C	50 A	15 A	Board Mount	Nonstandard SMD	Triggerable	14 V	7 V	Battery Protection	Surface Mount	65 °C	-10 °C	35 V	TUV UL	Fast Blow	3.2 mm	0.126 in	0.213 in	1.15 mm	0.045 "	5.4 mm
Delta Electronics/Cyntec FC-5432-10A-C2-C	50 A	10 A	Board Mount (Cartridge Style Excluded)	Nonstandard SMD					Surface Mount	65 °C	-10 °C	35 V	TUV UL	Fast Blow	3.2 mm	0.126 in	0.213 in	1.15 mm	0.045 "	5.4 mm
Delta Electronics/Cyntec FC-5432-15A-C5-C	50 A	15 A	Board Mount	Nonstandard SMD	Triggerable	23.5 V	14.4 V	Battery Protection	Surface Mount	65 °C	-10 °C	35 V	TUV UL	Fast Blow	3.2 mm	0.126 in	0.213 in	1.15 mm	0.045 "	5.4 mm
Delta Electronics/Cyntec FC-5432-12A-C3-C	50 A	12 Amps	Board Mount	Nonstandard SMD	Triggerable	14 V	7 V	Battery Protection	Surface Mount	65 °C	-10 °C	35 V	TUV UL	Fast Blow	3.2 mm	0.126 in	0.213 in	1.15 mm	0.045 "	5.4 mm
