85603 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

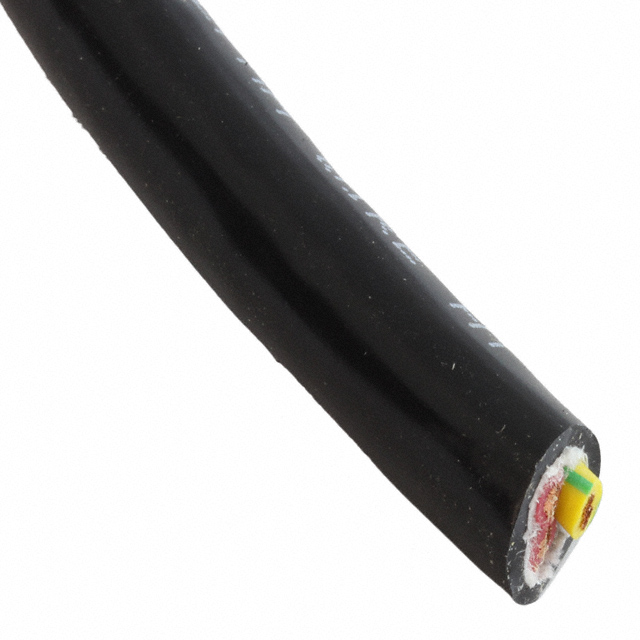

CABLE 3COND 16AWG BLACK 1000'
| Part | Wire Gauge | Length | Length | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Ratings | Conductor Material | Number of Conductors | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 16 AWG | 1000 ft | 304.8 m | Poly-Vinyl Chloride (PVC) | 0.331 in | 8.41 mm | 600 V | 105 | 38 AWG | Multi-Conductor | Black | 0.889 mm | 0.035 in | Poly-Vinyl Chloride (PVC) | UL Style 2587 | Copper Tinned | 3 | ||
ALPHA WIRE | 16 AWG | Poly-Vinyl Chloride (PVC) | 0.331 in | 8.41 mm | 600 V | 105 | 38 AWG | Multi-Conductor | Black | 0.889 mm | 0.035 in | Poly-Vinyl Chloride (PVC) | UL Style 2587 | Copper Tinned | 3 | 30.5 m | 100 ft |
