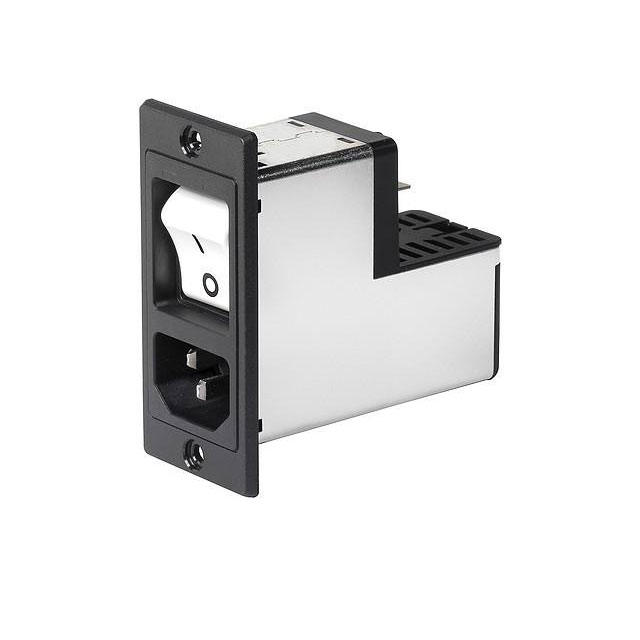

DG12 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Current Rating - Filter	Current Rating - Appliance Inlet	Ingress Protection	Switch Features	Connector Type	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Material Flammability Rating	Panel Thickness	Panel Thickness	Voltage Rating - Appliance Inlet	Termination	Termination	Termination	Filter Type	Connector Style	Approval Agency	Current Rating - Circuit Breaker
SCHURTER Inc. DG12-CBDWM150C0-000-C6135-851-1000-00	10 A	10 A	IP40	Circuit Breaker Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	59 mm	30 mm	UL94 V-0	8 mm	0.315 in	250 VAC	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial Medical	IEC 320-C14	cURus ENEC	10 A
SCHURTER Inc. DG12-CBDWM100C0-000-C6135-720-1150-00	10 A	10 A	IP40	Circuit Breaker Switch On-Off	Receptacle Male Blades - Module	Panel Mount Snap-In	59 mm	30 mm	UL94 V-0	1.5 mm	0.059 in	250 VAC	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial	IEC 320-C14	cURus ENEC	10 A
SCHURTER Inc. DG12-CBDWM080C0-000-C6135-620-1000-00	8 A	10 A	IP40	Circuit Breaker Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	59 mm	30 mm	UL94 V-0	8 mm	0.315 in	250 VAC	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial	IEC 320-C14	cURus ENEC	8 A
SCHURTER Inc. DG12-CBDWM150C0-000-C6135-821-1000-00	10 A	10 A	IP40	Circuit Breaker Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	59 mm	30 mm	UL94 V-0	8 mm	0.315 in	250 VAC	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial	IEC 320-C14	cURus ENEC	10 A
SCHURTER Inc. DG12-CBDBLJ10C0-000-C6135-121-1000-00	1 A	10 A	IP40	Circuit Breaker Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	59 mm	30 mm	UL94 V-0	8 mm	0.315 in	250 VAC	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial	IEC 320-C14	cURus ENEC	1 A
SCHURTER Inc. DG12-CBDWM080C0-000-C6135-621-1000-00	8 A	10 A	IP40	Circuit Breaker Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	59 mm	30 mm	UL94 V-0	8 mm	0.315 in	250 VAC	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial	IEC 320-C14	cURus ENEC	8 A

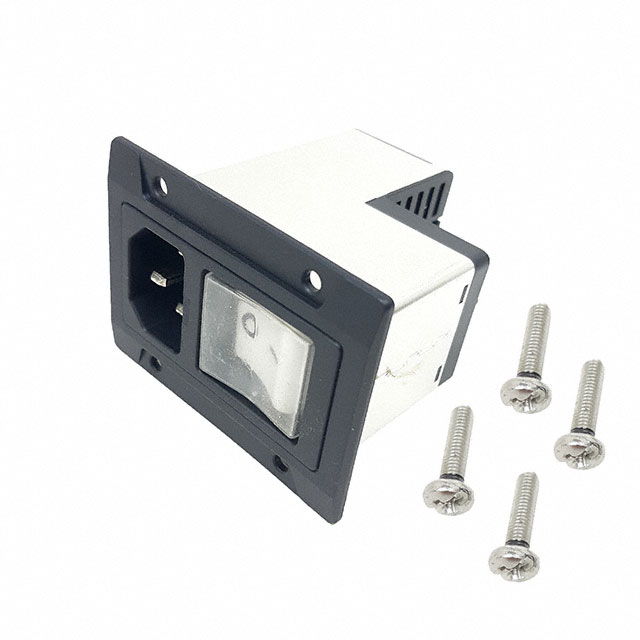

SCHURTER Inc. DG12-CBDWM100C0-000-C6135-720-1880-00	10 A	10 A	IP67 - Dust Tight Waterproof	Circuit Breaker Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	59 mm	34.3 mm	UL94 V-0	8 mm	0.315 in	250 VAC	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial	IEC 320-C14	cURus ENEC	10 A
SCHURTER Inc. DG12-CBDBF040C0-000-C6135-421-1000-00	4 A	10 A	IP40	Circuit Breaker Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	59 mm	30 mm	UL94 V-0	8 mm	0.315 in	250 VAC	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial	IEC 320-C14	cURus ENEC	4 A
SCHURTER Inc. DG12-CBDBF040C0-000-C6135-451-1000-00	4 A	10 A	IP40	Circuit Breaker Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	59 mm	30 mm	UL94 V-0	8 mm	0.315 in	250 VAC	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial Medical	IEC 320-C14	cURus ENEC	4 A
SCHURTER Inc. DG12-C126F100C0-000-C6135-750-1000-00	7 A	10 A	IP40	Circuit Breaker Illuminated Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	59 mm	30 mm	UL94 V-0	8 mm	0.315 in	250 VAC	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial Medical	IEC 320-C14	cURus ENEC	10 A
