SMH100 Series

Manufacturer: Sullins Connector Solutions

Catalog

Catalog

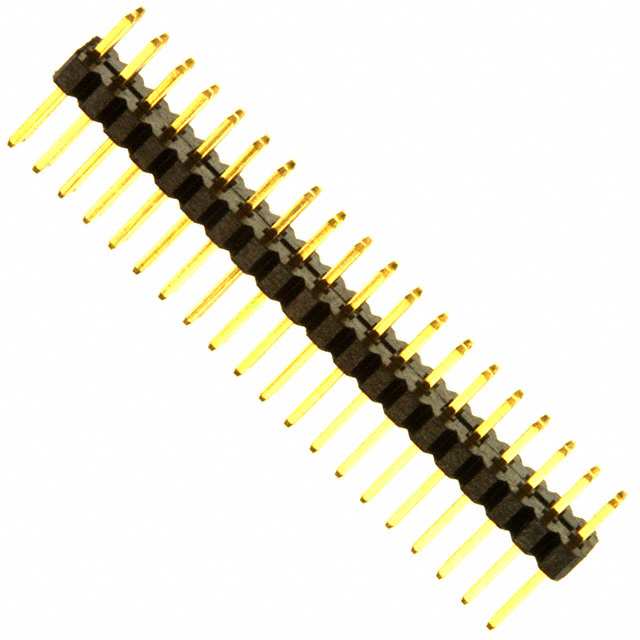

CONN HEADER R/A 45POS 1MM

...

Part	Contact Finish Thickness - Post	Contact Material	Contact Shape	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Number of Positions	Material Flammability Rating	Contact Type	Connector Type	Insulation Material	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Mounting Type	Number of Positions Loaded	Shrouding	Insulation Height [z]	Insulation Height [z]	Termination	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating
Sullins Connector Solutions SMH100-LPPE-S45-RA-BK	Flash	Phosphor Bronze	Square	Push-Pull	125 °C	-40 C	1	Flash	2.6 mm	0.102 in	Gold	45	UL94 V-0	Male Pin	Header	Liquid Crystal Polymer (LCP)	1.8 mm	0.071 in	Gold	Right Angle Through Hole	All	Unshrouded	1.27 mm	0.05 in	Solder	Black	1 mm	0.039 in
Sullins Connector Solutions SMH100-LPSE-S49-RA-BK		Phosphor Bronze	Square	Push-Pull	125 °C	-40 C	1		2.6 mm	0.102 in	Gold	49	UL94 V-0	Male Pin	Header	Liquid Crystal Polymer (LCP)	1.8 mm	0.071 in	Gold	Right Angle Through Hole	All	Unshrouded	1.27 mm	0.05 in	Solder	Black	1 mm	0.039 in	10 Áin	0.25 çm	0.25 µm	10 µin
Sullins Connector Solutions SMH100-LPSE-S24-ST-BK		Phosphor Bronze	Square	Push-Pull	125 °C	-40 C	1		2.5 mm	0.098 in	Gold	24	UL94 V-0	Male Pin	Header	Liquid Crystal Polymer (LCP)	1.8 mm	0.071 in	Gold	Through Hole	All	Unshrouded	1 mm	0.039 in	Solder	Black	1 mm	0.039 in	10 Áin	0.25 çm	0.25 µm	10 µin	0.209 in	5.3 mm
Sullins Connector Solutions SMH100-LPSE-S06-SD-BK		Phosphor Bronze	Square	Push-Pull	125 °C	-40 C	1				Gold	6	UL94 V-0	Male Pin	Header	Liquid Crystal Polymer (LCP)	1.65 mm		Gold	Surface Mount	All	Unshrouded	1 mm	0.039 in	Solder	Black	1 mm	0.039 in	10 Áin	0.25 çm	0.25 µm	10 µin			0.065 in
Sullins Connector Solutions SMH100-LPPE-S24-ST-BK	Flash	Phosphor Bronze	Square	Push-Pull	125 °C	-40 C	1	Flash	2.5 mm	0.098 in	Gold	24	UL94 V-0	Male Pin	Header	Liquid Crystal Polymer (LCP)	1.8 mm	0.071 in	Gold	Through Hole	All	Unshrouded	1 mm	0.039 in	Solder	Black	1 mm	0.039 in					0.209 in	5.3 mm
Sullins Connector Solutions SMH100-LPPE-S11-SD-BK	Flash	Phosphor Bronze	Square	Push-Pull	125 °C	-40 C	1	Flash			Gold	11	UL94 V-0	Male Pin	Header	Liquid Crystal Polymer (LCP)	1.65 mm		Gold	Surface Mount	All	Unshrouded	1 mm	0.039 in	Solder	Black	1 mm	0.039 in							0.065 in
Sullins Connector Solutions SMH100-LPSE-D20-ST-BK		Phosphor Bronze	Square	Push-Pull	125 °C	-40 C			2.5 mm	0.098 in	Gold	40	UL94 V-0	Male Pin	Header	Liquid Crystal Polymer (LCP)	1.8 mm	0.071 in	Gold	Through Hole	All	Unshrouded	1 mm	0.039 in	Solder	Black	1 mm	0.039 in	10 Áin	0.25 çm	0.25 µm	10 µin	0.209 in	5.3 mm		2	0.039 in	1 mm
Sullins Connector Solutions SMH100-LPPE-S21-SC-BK	Flash	Phosphor Bronze	Square	Push-Pull	125 °C	-40 C	1	Flash			Gold	21	UL94 V-0	Male Pin	Header	Liquid Crystal Polymer (LCP)	1.65 mm		Gold	Surface Mount	All	Unshrouded	1 mm	0.039 in	Solder	Black	1 mm	0.039 in							0.065 in
Sullins Connector Solutions SMH100-LPSE-S27-SD-BK		Phosphor Bronze	Square	Push-Pull	125 °C	-40 C	1				Gold	27	UL94 V-0	Male Pin	Header	Liquid Crystal Polymer (LCP)	1.65 mm		Gold	Surface Mount	All	Unshrouded	1 mm	0.039 in	Solder	Black	1 mm	0.039 in	10 Áin	0.25 çm	0.25 µm	10 µin			0.065 in
Sullins Connector Solutions SMH100-LPSE-S02-ST-BK		Phosphor Bronze	Square	Push-Pull	125 °C	-40 C	1		2.5 mm	0.098 in	Gold	2	UL94 V-0	Male Pin	Header	Liquid Crystal Polymer (LCP)	1.8 mm	0.071 in	Gold	Through Hole	All	Unshrouded	1 mm	0.039 in	Solder	Black	1 mm	0.039 in	10 Áin	0.25 çm	0.25 µm	10 µin	0.209 in	5.3 mm
