VAOL-S8 Series
Manufacturer: Visual Communications Company - VCC
Beta
⌘K

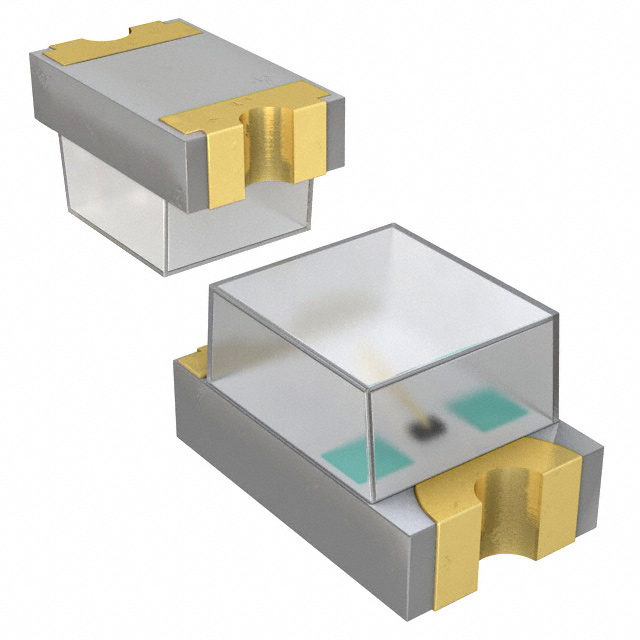

LED YLW-GRN CLEAR 0805 SMD
| Part | Lens Style | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Millicandela Rating | Lens Size [x] | Lens Size [y] | Supplier Device Package | Current - Test | Viewing Angle | Configuration | Wavelength - Peak | Lens Transparency | Color | Wavelength - Dominant | Height (Max) [Max] [z] | Voltage - Forward (Vf) (Typ) | Package / Case | Lens Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Visual Communications Company - VCC | Rectangle with Flat Top | Surface Mount | 2 mm | 1.25 mm | 27 mcd | 2 mm | 1.25 mm | 0805 | 20 mA | 140 ° | Standard | 575 nm | Clear | Yellow-Green | 573 nm | 1.3 mm | 2 V | 0805 | Colorless |
