828582 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 64POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Finish - Mating	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Style	Number of Rows [custom]	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Termination	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Contact Shape	Insulation Material	Contact Material	Number of Positions	Insulation Color	Contact Type	Insulation Height	Insulation Height	Fastening Type	Features	Number of Positions [custom]
TE Connectivity AMP Connectors 6-828582-4	118.1 µin	3 µm	0.118 in	3 mm	Through Hole	Gold or Gold-Palladium	Header	0.1 in	2.54 mm	All	Board to Cable/Wire	2	Tin	31.5 µin	0.8 µm	Shrouded - 4 Wall	Solder	0.1 "	2.54 mm	0.652 in	16.56 mm	Circular	Polyester Glass Filled	Brass	64	Black	Male Pin	13.8 mm	0.543 in	Latch Lock/Eject Hooks
TE Connectivity AMP Connectors 2-828582-6	118.1 µin	3 µm	0.118 in	3 mm	Through Hole	Gold or Gold-Palladium	Header	0.1 in	2.54 mm	All	Board to Cable/Wire	2	Tin	31.5 µin	0.8 µm	Shrouded - 4 Wall	Solder	0.1 "	2.54 mm	0.652 in	16.56 mm	Circular	Polyester Glass Filled	Brass	26	Black	Male Pin	13.8 mm	0.543 in	Latch Lock/Eject Hooks
TE Connectivity AMP Connectors 4-828582-0	118.1 µin	3 µm	0.118 in	3 mm	Through Hole	Gold or Gold-Palladium	Header	0.1 in	2.54 mm	All	Board to Cable/Wire	2	Tin	31.5 µin	0.8 µm	Shrouded - 4 Wall	Solder	0.1 "	2.54 mm	0.652 in	16.56 mm	Circular	Polyester Glass Filled	Brass	40	Black	Male Pin	13.8 mm	0.543 in	Latch Lock/Eject Hooks
TE Connectivity AMP Connectors 1-828582-6	118.1 µin	3 µm	0.118 in	3 mm	Through Hole	Gold or Gold-Palladium	Header	0.1 in	2.54 mm	All	Board to Cable/Wire	2	Tin	31.5 µin	0.8 µm	Shrouded - 4 Wall	Solder	0.1 "	2.54 mm	0.652 in	16.56 mm	Circular	Polyester Glass Filled	Brass	16	Black	Male Pin	13.8 mm	0.543 in	Latch Lock/Eject Hooks

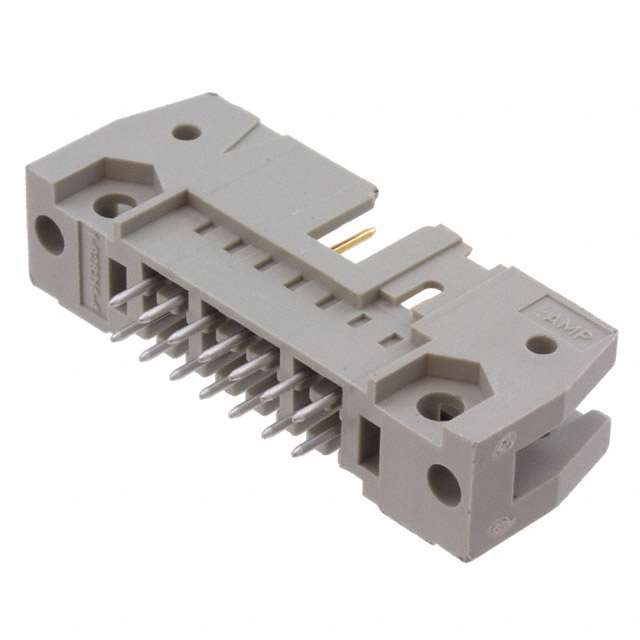

TE Connectivity AMP Connectors 1-828582-4	118.1 µin	3 µm	0.118 in	3 mm	Through Hole	Gold or Gold-Palladium	Header	0.1 in	2.54 mm	All	Board to Cable/Wire	2	Tin	31.5 µin	0.8 µm	Shrouded - 4 Wall	Solder	0.1 "	2.54 mm	0.652 in	16.56 mm	Circular	Polyester Glass Filled	Brass	14	Black	Male Pin	13.8 mm	0.543 in	Latch Lock/Eject Hooks	Mounting Flange
TE Connectivity AMP Connectors 3-828582-4	118.1 µin	3 µm	0.118 in	3 mm	Through Hole	Gold or Gold-Palladium	Header	0.1 in	2.54 mm	All	Board to Cable/Wire	2	Tin	31.5 µin	0.8 µm	Shrouded - 4 Wall	Solder	0.1 "	2.54 mm	0.652 in	16.56 mm	Circular	Polyester Glass Filled	Brass		Black	Male Pin	13.8 mm	0.543 in	Latch Lock/Eject Hooks		34
TE Connectivity AMP Connectors 2-828582-0	118.1 µin	3 µm	0.118 in	3 mm	Through Hole	Gold or Gold-Palladium	Header	0.1 in	2.54 mm	All	Board to Cable/Wire	2	Tin	31.5 µin	0.8 µm	Shrouded - 4 Wall	Solder	0.1 "	2.54 mm	0.652 in	16.56 mm	Circular	Polyester Glass Filled	Brass	20	Black	Male Pin	13.8 mm	0.543 in	Latch Lock/Eject Hooks
TE Connectivity AMP Connectors 5-828582-0	118.1 µin	3 µm	0.118 in	3 mm	Through Hole	Gold or Gold-Palladium	Header	0.1 in	2.54 mm	All	Board to Cable/Wire	2	Tin	31.5 µin	0.8 µm	Shrouded - 4 Wall	Solder	0.1 "	2.54 mm	0.652 in	16.56 mm	Circular	Polyester Glass Filled	Brass	50	Black	Male Pin	13.8 mm	0.543 in	Latch Lock/Eject Hooks
